149
8 - Technical Specifications
Dimensions
General Info
All dimensions, values and weights are depending on mounted options and specific adjustments.

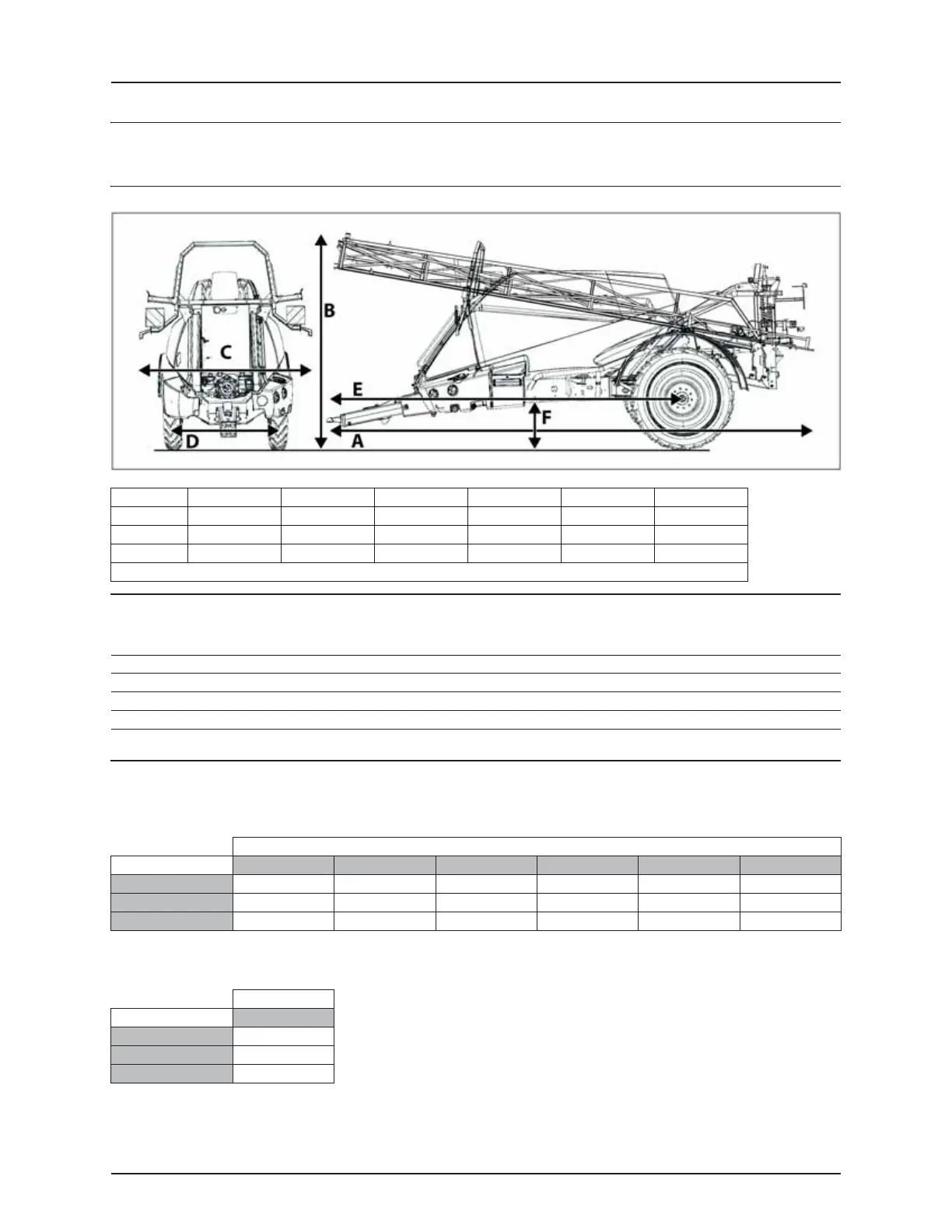

Overall Dimensions
Wheel and Axle Dimensions
Tire Pressure
The following charts list the recommended tire pressure by model and tire size. Tire pressure may need to be adjusted
depending on the actual machine weight, tire brand, or conditions.
1 - Load Index: 161
2 - Load Index: 169
€
DANGER! Never inflate tires more than to the pressure specified on the tire. Over-inflated tires can explode and cause
severe personal injuries! See “50 Hours Service - Tire Pressure” on page 106.
ABCDE F
4500 25’7” 11’10” 11’ 6” 60” to 90” 17’5” 31”
5500 28’ 3” 11’ 10” 11’ 6” 60” to 90” 17’ 5” 31”
7000 28’ 3” 12’ 0” 11’ 6” 60” to 90” 19’ 10” 31”
All measurements are in feet and inches
Wheel Adj. axle Fixed axle Duals 22” row Duals 30” row Clearance*
320/90 R50 60” - 90” 120” 88”/132” 60”/90” 30.3”
480/80 R46 60” - 90” 120” 88”/132” 60”/90” 32.2”
380/105 R50 60” - 90” 120” 88”/132” 60”/90” 33.5”
480/80 R50 60” - 90” 120” 88”/132” 60”/90” 34.5”
*under axle
Single tires Tire size
Sprayer model
320/90 R50
1
320/90 R50
2
380/90 R46 480/80 R46 380/105 R50 480/80 R50
4500 52 psi (3.6 bar) 60 psi (4.1 bar) 60 psi (4.1 bar) 40 psi (2.8 bar) 40 psi (2.8 bar) 40 psi (2.8 bar)
5500 52 psi (3.6 bar) 70 psi (4.8 bar) 70 psi (4.8 bar) 52 psi (3.6 bar) 50 psi (3.4 bar) 50 psi (3.4 bar)
7000 N/A as singles N/A as singles N/A N/A 60 psi (4.1 bar) 60 psi (4.1 bar)
Duals Tire size
Sprayer model
320/90 R50
4500 30 psi (2.1 bar)
5500 35 psi (2.4 bar)
7000 40 psi (2.8 bar)
