3 - Description
43
Tank Level Indicator
Main Tank

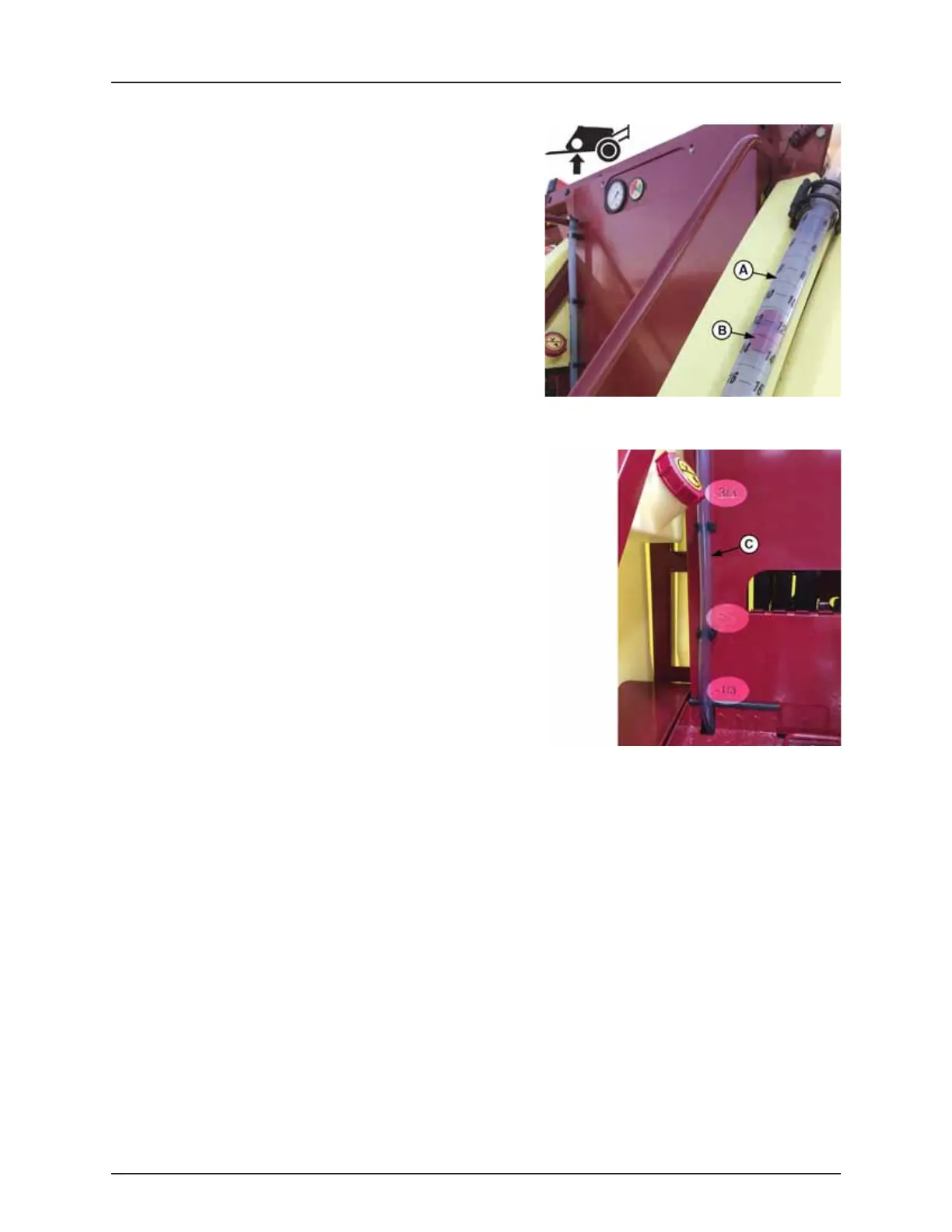

The actual liquid level in the main tank can be observed on the tank level
indicator (A), where a plug (B) inside the tube follows the liquid level, as
it is connected to a float inside the tank.
The scale is displayed in US gallons or Liters.
ATTENTION! The level indicator is only a guidance for the liquid
level in the tank.
For the most accurate reading, park the sprayer on level ground
with the sprayer chassis in a horizontal position.
The total deviation of accuracy for the level for each scale mark or
readout value is:
± 15 % for volumes up to 10 % of the nominal tank volume.
± 7.5 % for volumes between 10 and 20 % of the nominal tank volume.
± 5 % for volumes above 20 % of the nominal tank volume.
Rinsing Tank
The actual water level in the Rinsing Tank can be observed in tube (C).
A yellow ball floating inside the tube indicates the water level.
• The ball is at the top of the tube: A full tank.
• The ball is at the bottom of the tube: An empty tank.
The numbers integrated in the red plate to the right of the tube also
indicate the water level.
