7 - Fault Finding
146
Electric Fuses
In case of failure to operate the sprayer correctly due to malfunctions, check if the fuse is intact for the function in question.
If yes, the malfunction is not here.
If no, change the blown fuse and check the function on the sprayer again.
±
WARNING! The operator of the sprayer may open an electric junction box, check the fuse, change it if needed and
reassemble the junction box. Any other changes or modifications of the circuit boards must be carried out only by
qualified HARDI® personnel. Ask your dealer if in doubt.
Only replace a fuse with the same type and size. Using a bigger fuse will result in damages to the electric components.
Risk of fire.

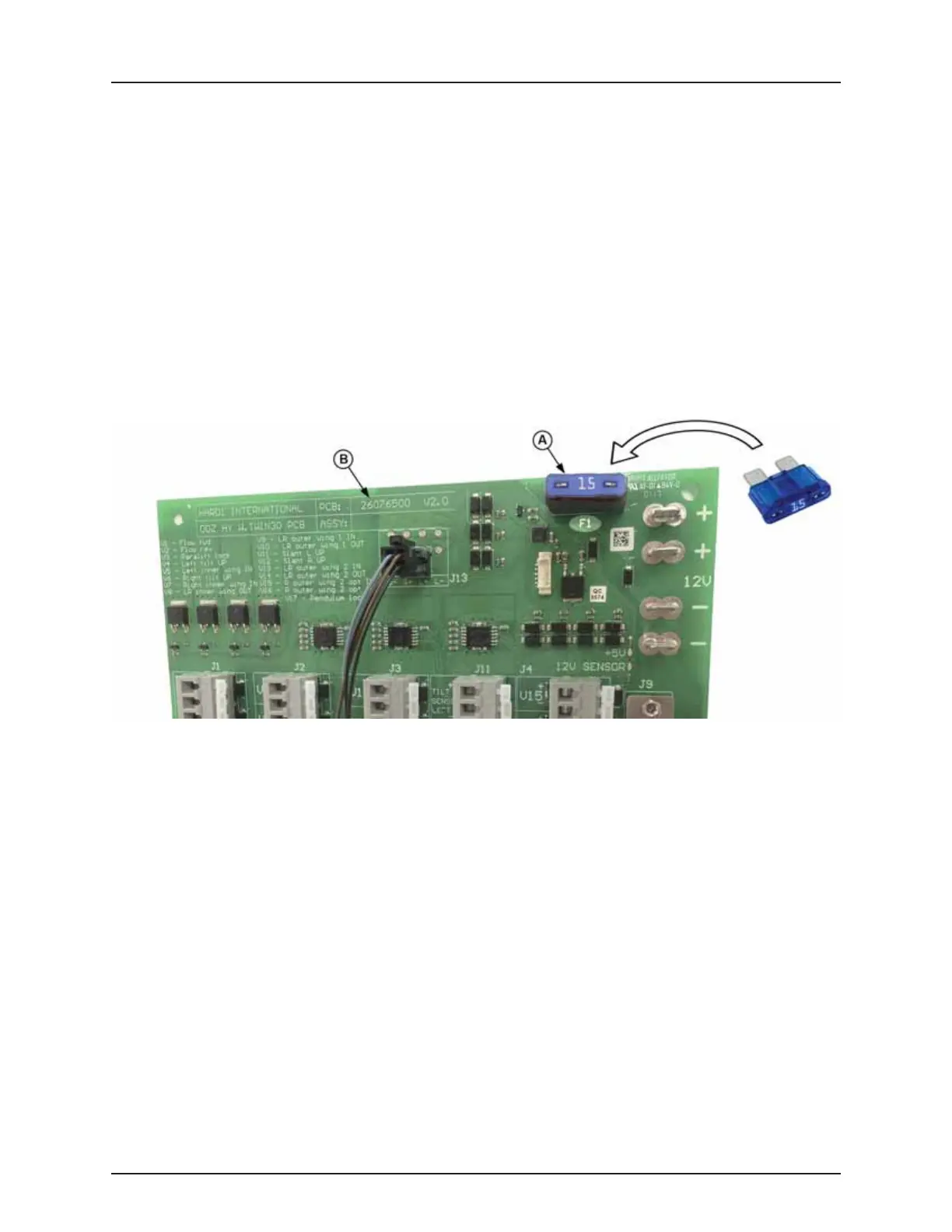

Example of a printed circuit board in a junction box on the sprayer:
A. Blade fuse, 15 amps (15 A).
B. HARDI® item number for the printed circuit board.
