4 - Sprayer Setup
49
Hydraulic Support Leg CM 5500/7000
The hydraulic support leg is activated via a separate double acting hydraulic outlet on the tractor. Connect the hydraulic
hoses from the support leg to the tractor and test the function of the support leg carefully.
The support leg is positioned in its retracted position, when the sprayer is attached to the tractor.

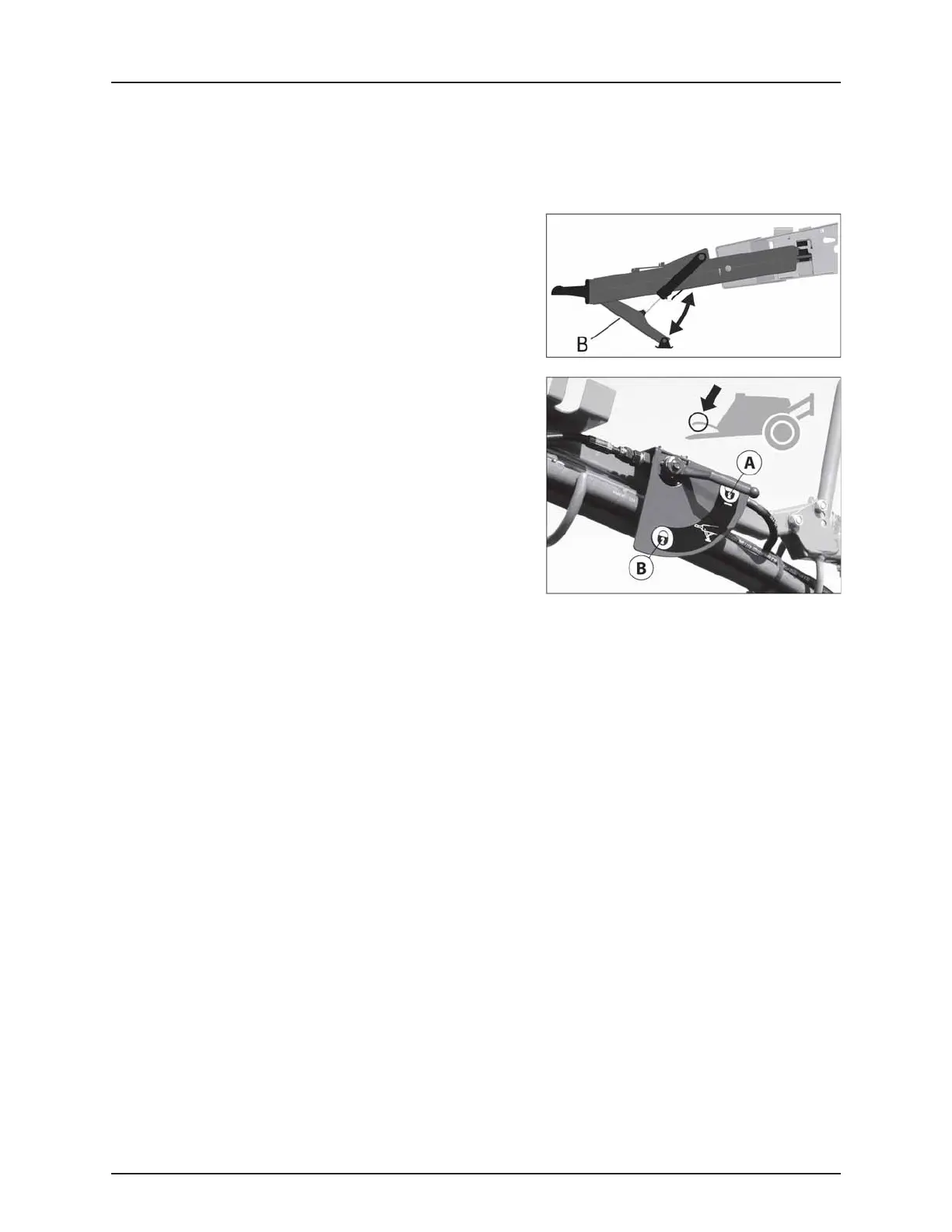

1. The sprayer’s drawbar is connected to the hitch point on the
tractor. The support leg (B) is hydraulically raised/lowered.
2. Unlock the leg by turning the securing lever to position (A).
3. Use the tractor’s hydraulic lever to raise or lower the support leg.
4. Secure the support leg by turning the lever to position (B).
€
DANGER! Always double check that the lever is in the locked
position (B) when leaving the sprayer standing on the support
leg.
