Spray Boom
Safety Info
Keep the spray boom in folded position while driving outside the field. Park the sprayer and tractor on level ground before
using the folding/unfolding functions. The boom must not be folded/unfolded while driving! Never use the
folding/unfolding functions before the sprayer has been stopped!
Failure to do so will damage the boom and cause dangerous situations to people and the surroundings.
€
DANGER! Before unfolding the boom, it is important to connect the sprayer to the tractor to prevent overbalancing
of the sprayer.
€
DANGER! When folding or unfolding the boom, make sure that no persons or objects are within the operating area
of the boom.
€

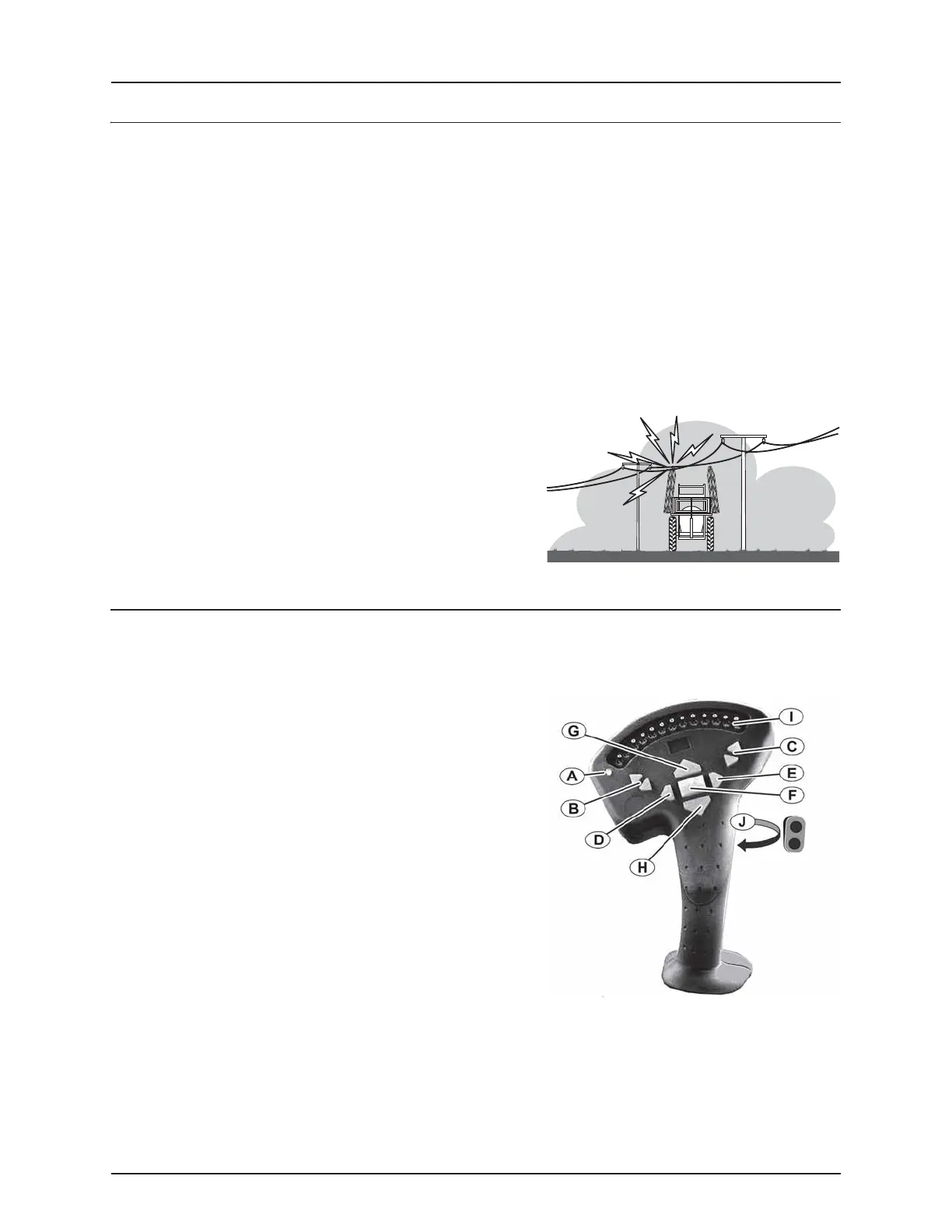

DANGER! Always follow the guidelines listed below when driving in areas with overhead power lines:
Keep from using the folding/unfolding functions in areas with overhead
power lines. Unintended boom movements may cause contact with
overhead power lines, causing a risk of fatal accidents.
ATTENTION! A label (HARDI® item no. 10533003) is located on the
sprayer’s drawbar. This label must be visible to the operator when
hooking up the sprayer.
ATTENTION! Only unfold and fold the boom on level ground.
Operating the Grip
The buttons on the grip in the tractor control the following sprayer functions in the field:
A. Status light for power ON/OFF.
The light must be ON.
B. Boom tilt up/down - left boom side.
Adjust the boom height individually for the right and left boom
side if the terrain is hilly.
C. Boom tilt up/down - right boom side.
D. Not used.
E. Not used.
F. Main ON/OFF for spraying.
Turn it ON for spraying, OFF to stop spraying.
G. Boom height up.
Aim for a height of 20 in. (50 cm) above the crop when spraying.
H. Boom height down.
I. Boom sections spraying ON/OFF.
Switch pushed up is OFF; down is ON.
J. Presets 1 and 2 for the TWIN air system - the selected air angle and air volume during spraying.
