4 - Sprayer Setup
54

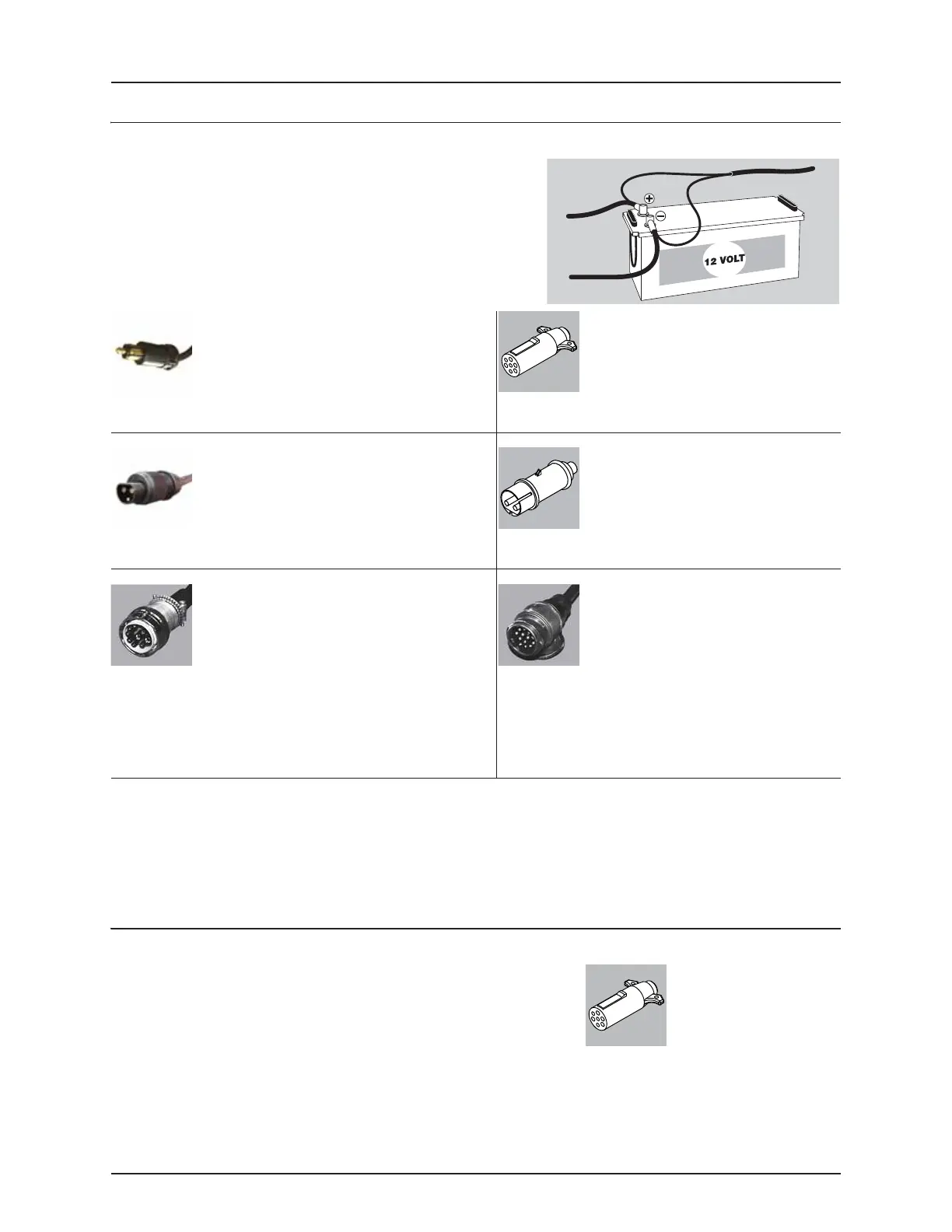

Electrical Connections
Power Supply
Power requirement is 12 V DC. Always note the polarity!
For proper function of the electric equipment for the sprayer, the tractor
must have the following sizes of electric wires and fuses installed.
The delivered power connectors follow the standard of most modern tractors. If you have a tractor with another power
connector, it is necessary to disassemble the connector and fit it to the actual sprayer connector. Contact your HARDI®
dealer.
The delivered connectors may vary on the sprayer, depending on its equipment and scope of supply.
Road Safety Kit
Connect the plug for rear lights to the tractor’s 7-pin socket and check
the function of rear lights, stop lights, side lights and direction indicators
on both sides before driving.
The wiring is in accordance with ANSI/ASAE S279.11. See “Electrical
Connections” on page 155.
ATTENTION! Turn OFF all work lights when driving on public roads!
Spray box connector, 1-pin plug
The unit requires:
Wire 12 awg (2.5 mm
2
), Fuse 10 amps.
Hydraulic control unit requires:
Wire 10 awg. (4.0 mm
2
), Fuse 16 amps.
Traffic light connector, 7-pin plug
Tractor must follow ANSI/ASAE S279.11.
JobCom connector, 3-pin plug
The unit requires:
Wire 6.0 mm
2
. Fuse 25 amps.
Tractor must follow DIN 9680.
Working light connector
The unit requires:
Wire 10.0 mm², Fuse 30 Amp
ISOBUS connector, 9-pin plug
The cable is custom made and must not be
changed to another type.
Tractor must follow ISO 11783-2.
Cabin connector for grip control and Setbox:
HARDI® item no. 26031500
Power and data connector, 13-pin plug
Used for controller model HC 6500.
If needed, buy one of these tractor kits to
complete the setup:
HARDI® item no. 26049400 (incl. NORAC system)
HARDI® item no. 26013900 (excl. NORAC system)
Tractor must follow ISO 11446.
