5 - Operation
General info

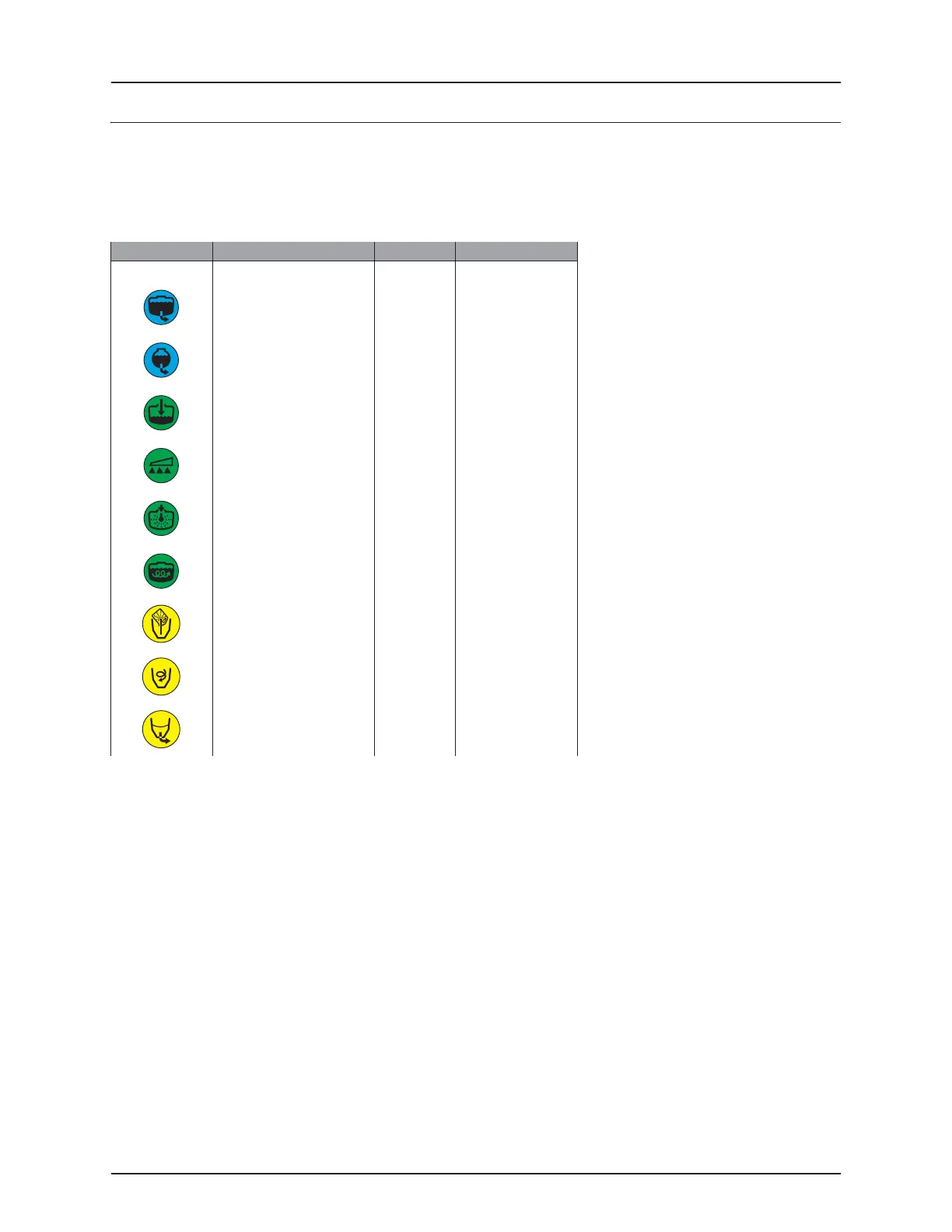

Symbols for Valves
The following symbols are shown on labels on the sprayer, where the operator can set a valve to stop or start a function.
The labels must be readable when operating the sprayer. Damaged or unreadable labels must be replaced.
The symbols are explained here.
Symbol on label Symbol description Label color HARDI® item number
Suction from main tank Black / Blue 97809900
Suction from RinseTank Black / Blue 97810000
TurboFiller Black / Green 97810300
Spraying / Pressurized nozzles Black / Green 97810400
Cleaning of main tank inside Black / Green 97810500
Agitation in main tank Black / Green 97810900
Cleaning of empty chemical
containers
Black / Yellow 97821600
Agitation in TurboFiller Black / Yellow 97821500
Filling of main tank from
TurboFiller
Black / Yellow 97821400
