6 - Maintenance
Lubrication
General Info
Always store lubricants clean, dry and cool - preferably at a constant temperature - to avoid contamination from dirt and
condensed water. Keep oil filling jugs, hoppers and grease guns clean, and clean the lubricating points thoroughly before
lubricating. Avoid skin contact with oil products for longer periods.
Always follow the quality and quantity recommendations. If no quantity is recommended, feed the lubricator until new
grease becomes visible.

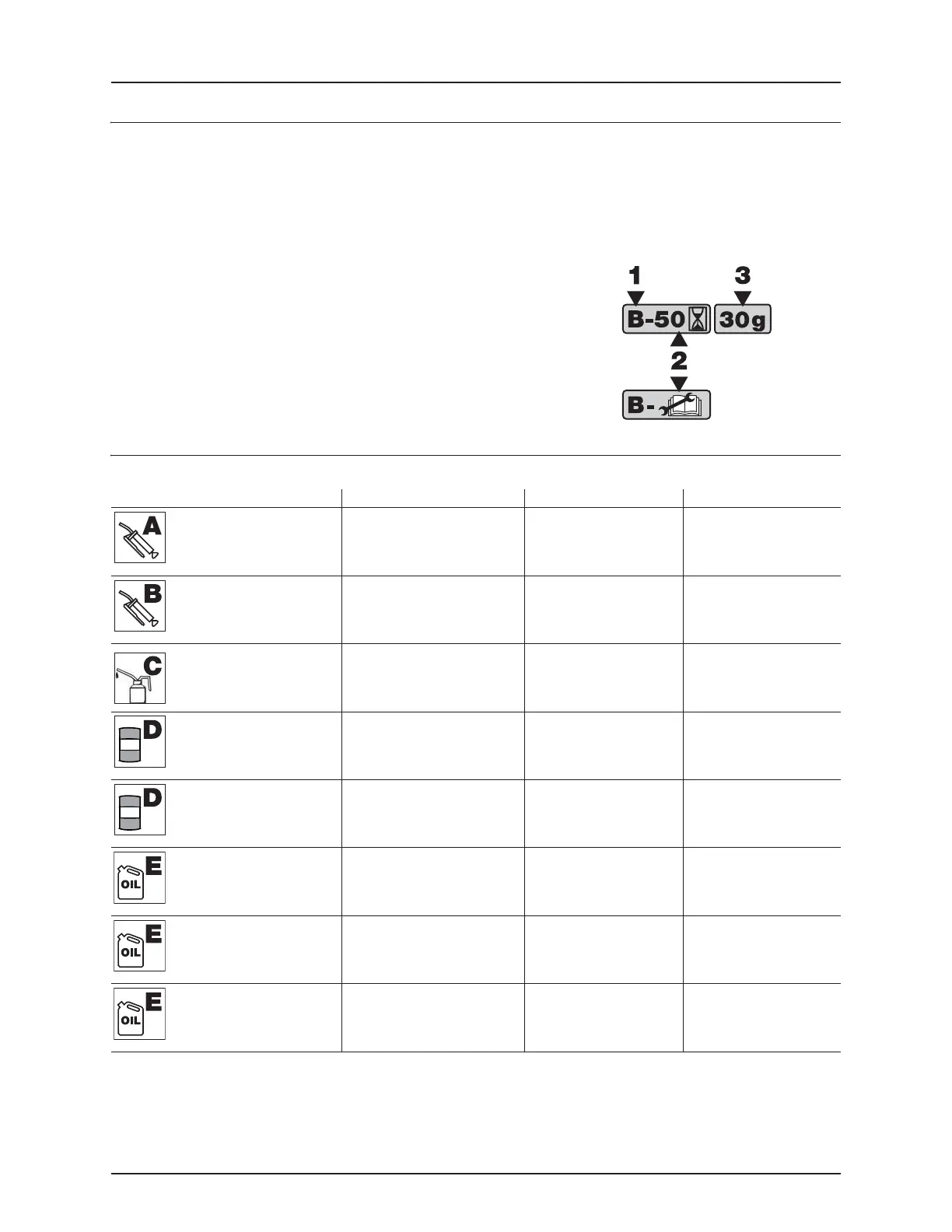

Pictograms in Lubrication & Oiling Plans Designate:
1. Lubricant to be used (see “Recommended lubricants” below).
2. Recommended intervals. Shown in hours or with a symbol for
occasional maintenance.
3. Amount to be used. Only shown if an amount is specified.
ATTENTION! If the sprayer has been cleaned with a high pressure
washer, lubrication of the entire machine is recommended.
Recommended Lubricants
What to Lubricate? Lubricant Type Factory Use Suitable Alternatives
BALL BEARINGS and PUMP Lithium based grease
Consistency NLGI grade 2
Viscosity (@40°C) > 460 cSt
SHELL Gadus S3 V550L 1
HARDI® pump grease cartridge
(400g): Item no. 28164600
MOBIL grease XHP 462
TOTAL Multis Complex SHD 460
SLIDE BEARINGS Lithium based grease
Consistency NLGI grade 1/2
Viscosity (@40°C) > 200 cSt
MOBIL XHP 222 SHELL Gadus S3 V220C 2
TOTAL Multis Complex SHD 220
OIL LUBRICATION POINTS Engine or transmission oil
Viscosity 20W-50 or 80W-90
OK Tractor UTTO GL 4 80W SHELL Spirax S4 TXM
CASTROL ACT EVO 4T
MOBIL Mobilube HD 80W/90
BOLTS Anti-corrosive wax PAVA PV 700 TECTYL 506 WD
VALVES and SEALS (O-RINGS) NSF 51, NSF 61 silicone compound ROCOL SAPPHIRE Aqua-Sil DOW CORNING MOLYKOTE 111
Compound
HYDROSTATIC FAN TRANSMISSION Hydraulic oil, type ISO VG 46,
ISO 11158
ASTM D6158-05
DIN 51524-3
OK Hydraulic HVI 46 SHELL Tellus S2 VX 46
CASTROL HYSPIN AWH-M 46
MOBIL DTE Excel 46
GEARBOX Gear oil, type ISO VG 220
Fully synthetic
MOBIL SHC 630
HYDRAULICS,
HYDRAULIC SUSPENSION
Hydraulic oil type ISO VG 46,
ISO 11158
ASTM D6158-05
DIN 51524-3
OK Hydraulic HVI 46 SHELL Tellus S2 VX 46
CASTROL HYSPIN AWH-M 46
MOBIL DTE Excel 46
