6 - Maintenance
119
Nozzle Holder Assembly
If leaks of fluid occur in the nozzle holders on the spray boom, it is necessary to check the gaskets. The nozzle holder needs
to be disassembled to locate the gaskets. Occasional maintenance of the gaskets and nozzle holders is recommended.
Poor seals are usually caused by:
Missing O-rings
Damaged or incorrectly seated O-rings
Dry or deformed O-rings
Foreign objects.
In Case of Leaks
1. Disassemble the pipe fitting.
2. Check condition and position of O-ring. Replace it if damaged or cracked.
3. Clean and lubricate the O-ring. Lubricate all the way around using a non-mineral lubricant.
4. Reassemble the O-ring or gasket and pipe fittings. When tightening the fittings, a little mechanical leverage may be
used.
How To Disassemble Nozzle Holders

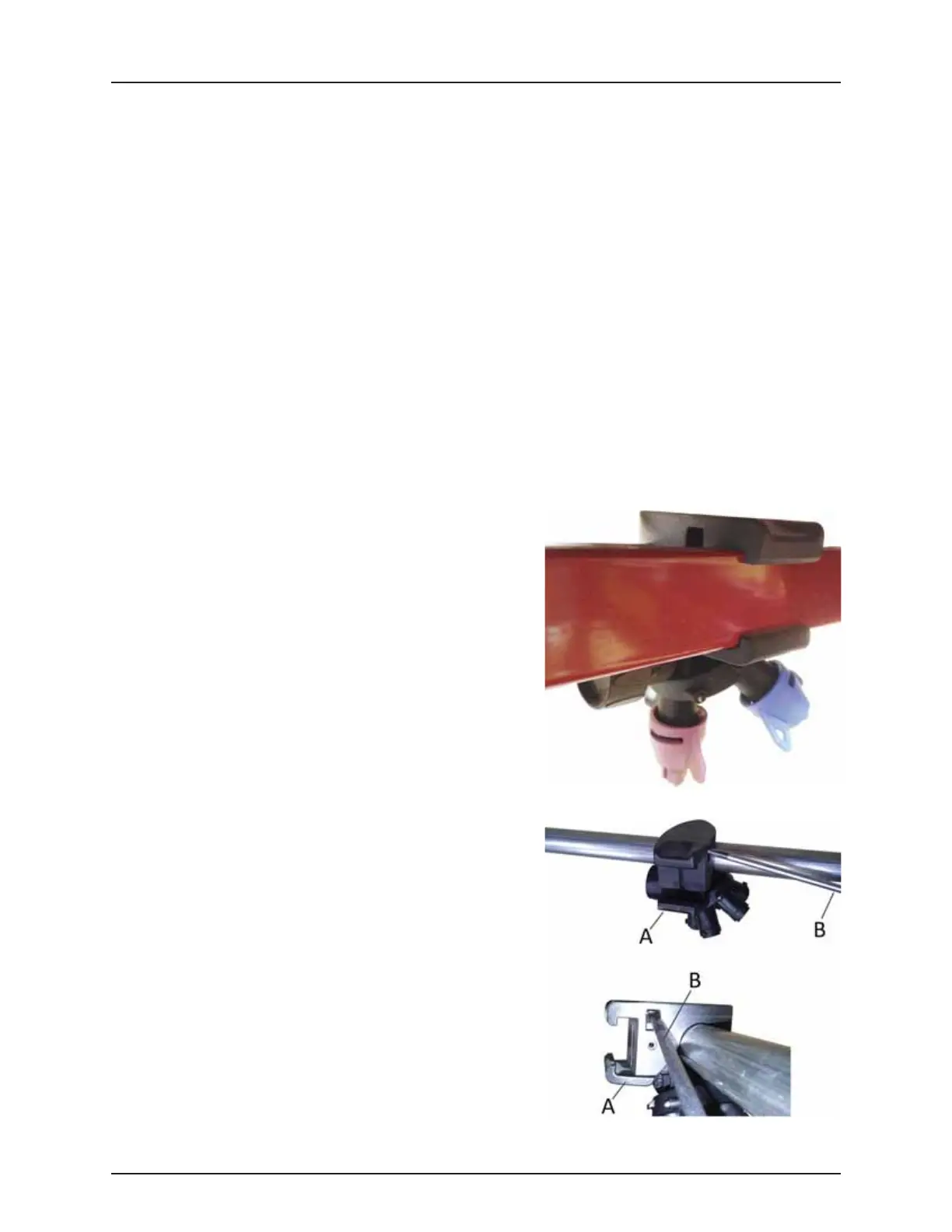

Nozzle holder assembled and mounted on the spray boom.
The black plastic parts are snapped together.
To disassemble, insert a slotted screwdriver (B), and press until the
locking piece (A) snaps out.
