Hardi COMMANDER 7000 Instruction Book

3 - Description
32

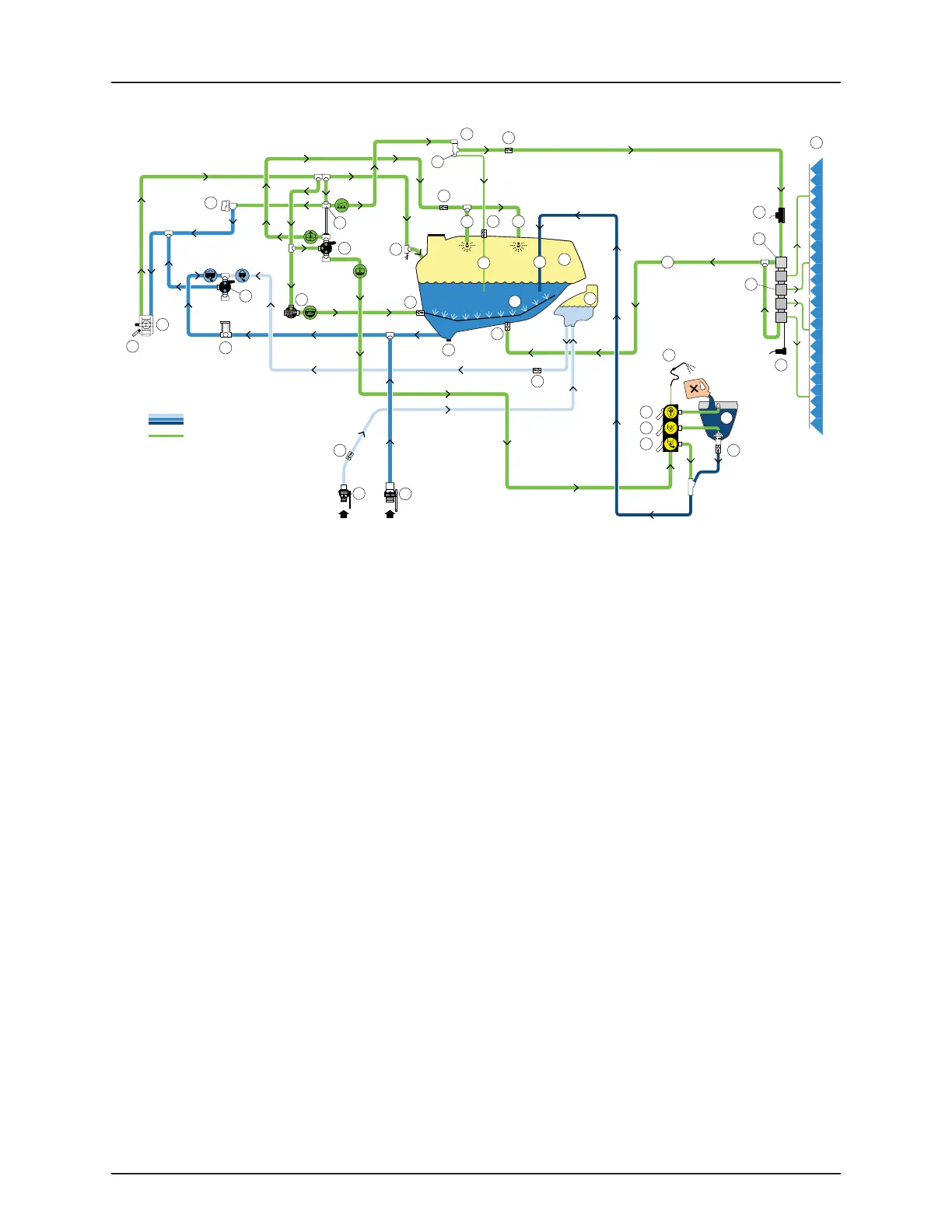

Diagram - Basic Liquid System
1. Main Pump
2. Main Tank
3. Rinsing Tank
4. DynamicFluid4 Pressure Regulation Valve
5. CycloneFilter
6. Suction SmartValve
7. Pressure SmartValve
8. Distribution Valves
9. Boom Pressure Sensor
10. Sprayer Boom
11. Agitation Valve
12. Agitation Tube
13. Return from Distribution Valves
14. One-Way Valve
15. Safety Valve
16. Internal Tank Rinsing Nozzles
17. Main Tank Quick Fill Coupler
18. Rinsing Tank Quick Fill Coupler
19. TurboFiller
20. TurboFiller to tank tube
21. Flow Meter
22. Boost Valve
23. Drain Valve
24. Bypass Valve
25. EasyClean Filter
26. TurboFiller Cleaning Wand
27. Spray Valve
28. Return Line for Boost Function
29. Chemical Container Cleaning Valve
30. TurboFiller Deflector Valve
31. TurboFiller Suction Valve
32. Speed Sensor for Main Pump
Suction lines
Pressure lines
32
1
25
6
4
11
7
14
15
27
22
14
16
14
16
5
14
2
3
12
28
20
14
23
14
29
30
31
14
14
19
26
9
8
24
21
13
10
18
17
