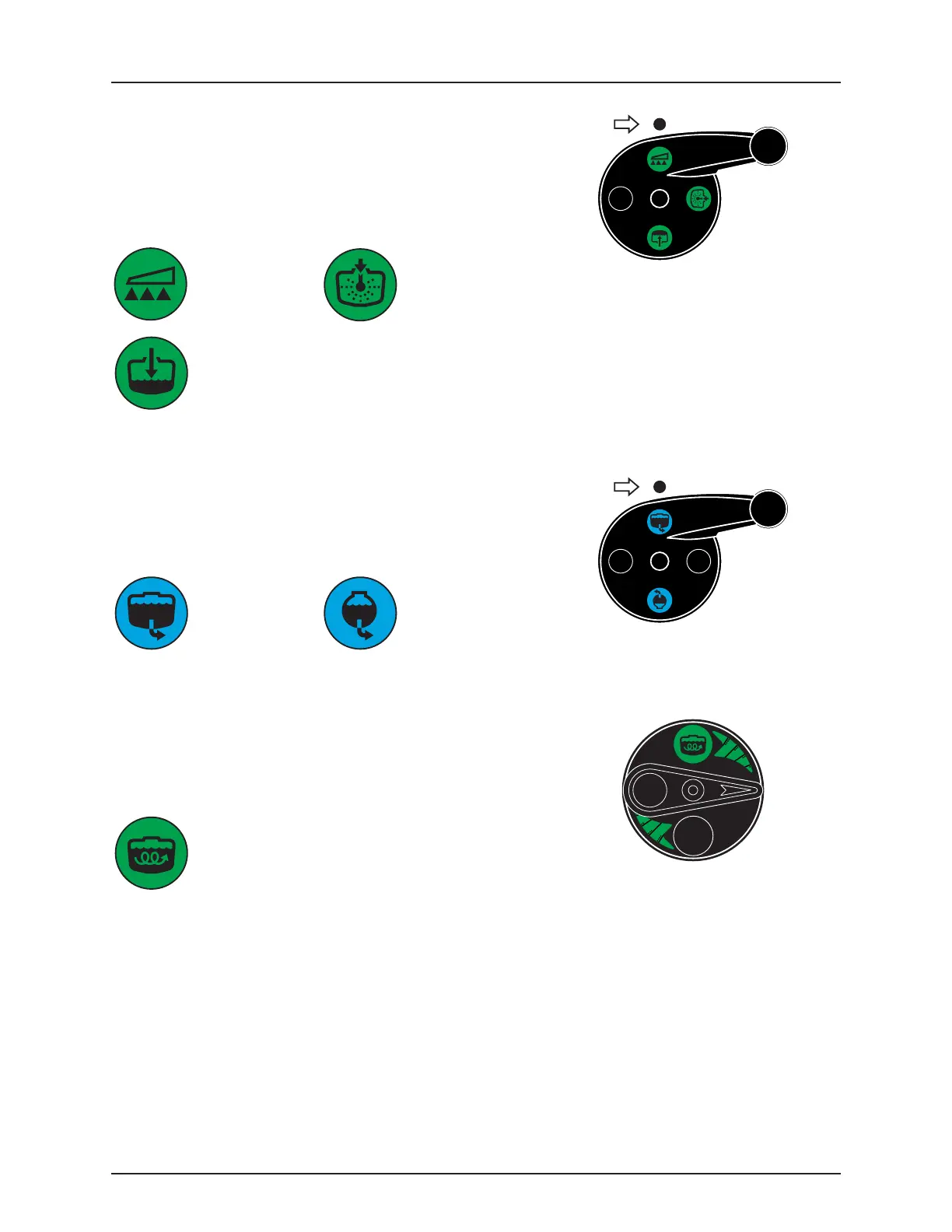

Pressure SmartValve (Green Symbols)
This valve is to select which function the pressurized liquid from the
pump will be routed to.
The active function is indicated by the little steel knob above the handle.
The handle is turned so the desired symbol is just below the steel knob.
If the handle is turned to a position without a symbol (unused function),
then the valve is closed.
Suction SmartValve (Blue Symbols)
This valve is to select suction from main tank or from the rinsing tank.
The handle is turned so the desired symbol is just below the steel knob.
If the handle is turned to vertical position (no symbol below steel knob),
then the valve is closed.
Agitation Valve (Green Symbol)
With the adjustable agitation valve it is possible to combine spraying
with a high volume rate at high pressure with agitation at the same time.
This is regulated by the valve: The valve is marked with an arrow on the
disc which indicates the amount of liquid that passes through the valve.
Choose your own valve setting, depending on the tank contents:
• The handle is turned to a position near the tip of the arrow: Only a small amount of liquid is allowed to pass the valve
resulting in less vigorous agitation.This is recommended when using chemicals with a low density to prevent foaming
in the tank.
• The handle is turned to a position in the wide end of the arrow: A large amount of liquid will pass the valve resulting
in a more vigorous agitation. This is recommended when using chemicals with a high density, which will tend to settle
at the bottom of the tank.
Spraying Internal tank rinsing
TurboFiller
Main tank Rinsing tank
Adjustable agitation
