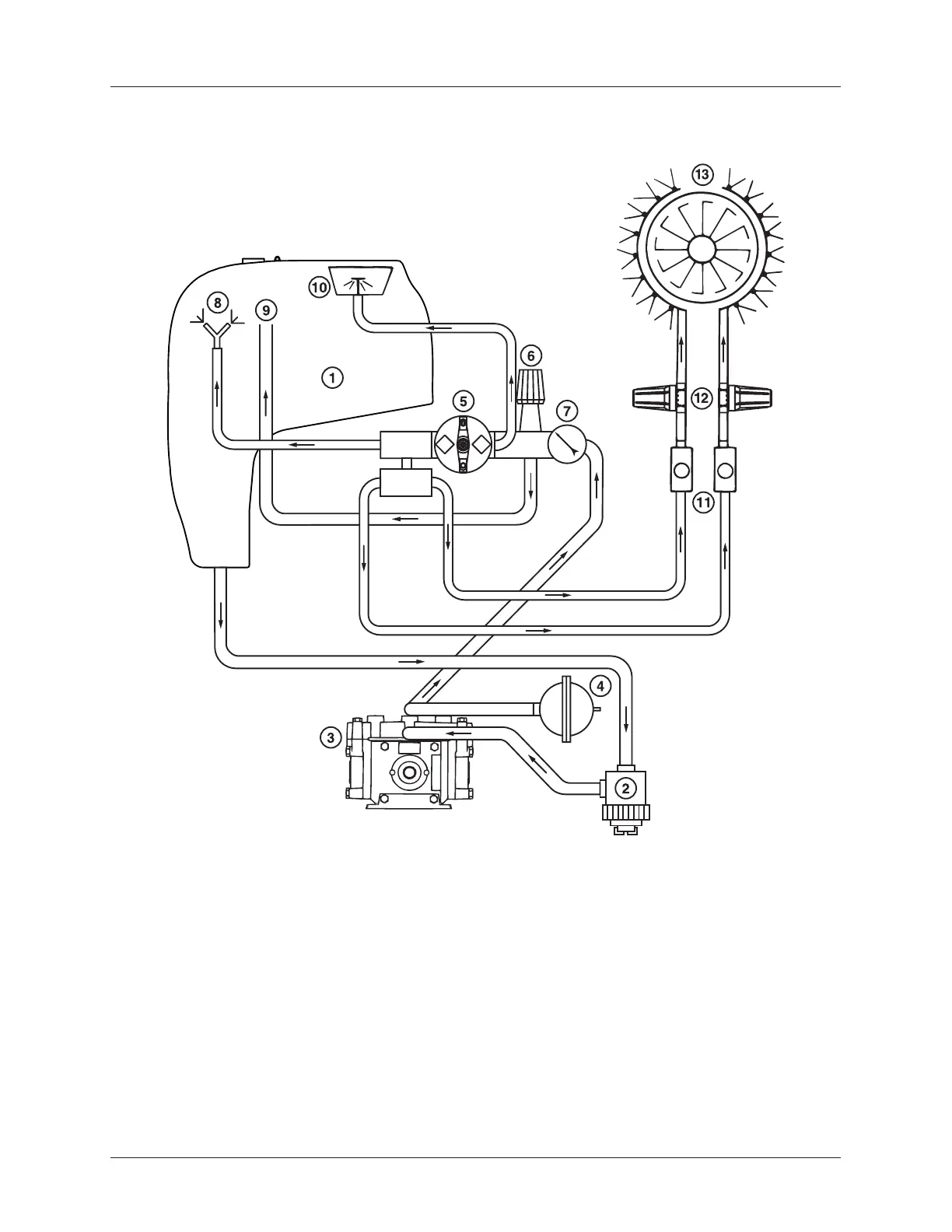

Hardi ZENIT - Diagram - HC;2 Hydraulic Controls

3 - Description
3.5
1. Main tank
2. Suction filter
3. Pump
4. Pressure damper
5. Agitation/Powder mixer valve
6. Pressure Regulator/Safety valve
7. Manifold pressure gauge
Diagram - HC/2 Hydraulic controls
8. Agitation
9. Return to tank
10. Powder mixer
11. Hydraulic remote section valves
12. Pressure filters
13. Blower nozzles
