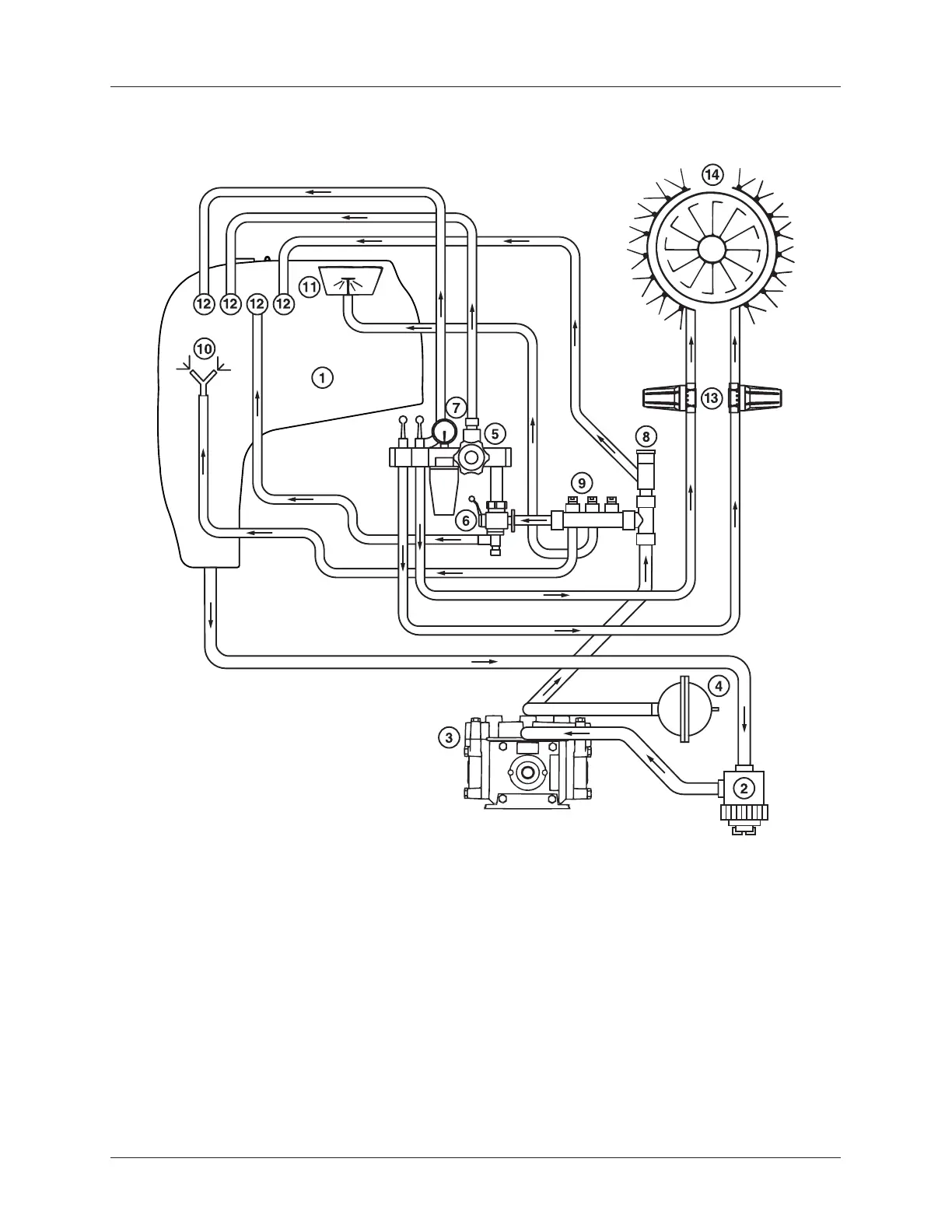

Hardi ZENIT - Diagram - BK Manual Control

3 - Description
3.6
1. Main tank
2. Suction filter
3. Pump
4. Pressure damper
5. BK Operating unit
6. Main On/Off valve
7. Manifold pressure gauge
8. Safety valve
9. Agitation/Powder mixer valves
10. Agitation
11. Powder mixer
12. Returns to tank
13. Pressure filters
14. Blower nozzles
Diagram - BK manual control
