5 - Operation
5.4
5 - Operation

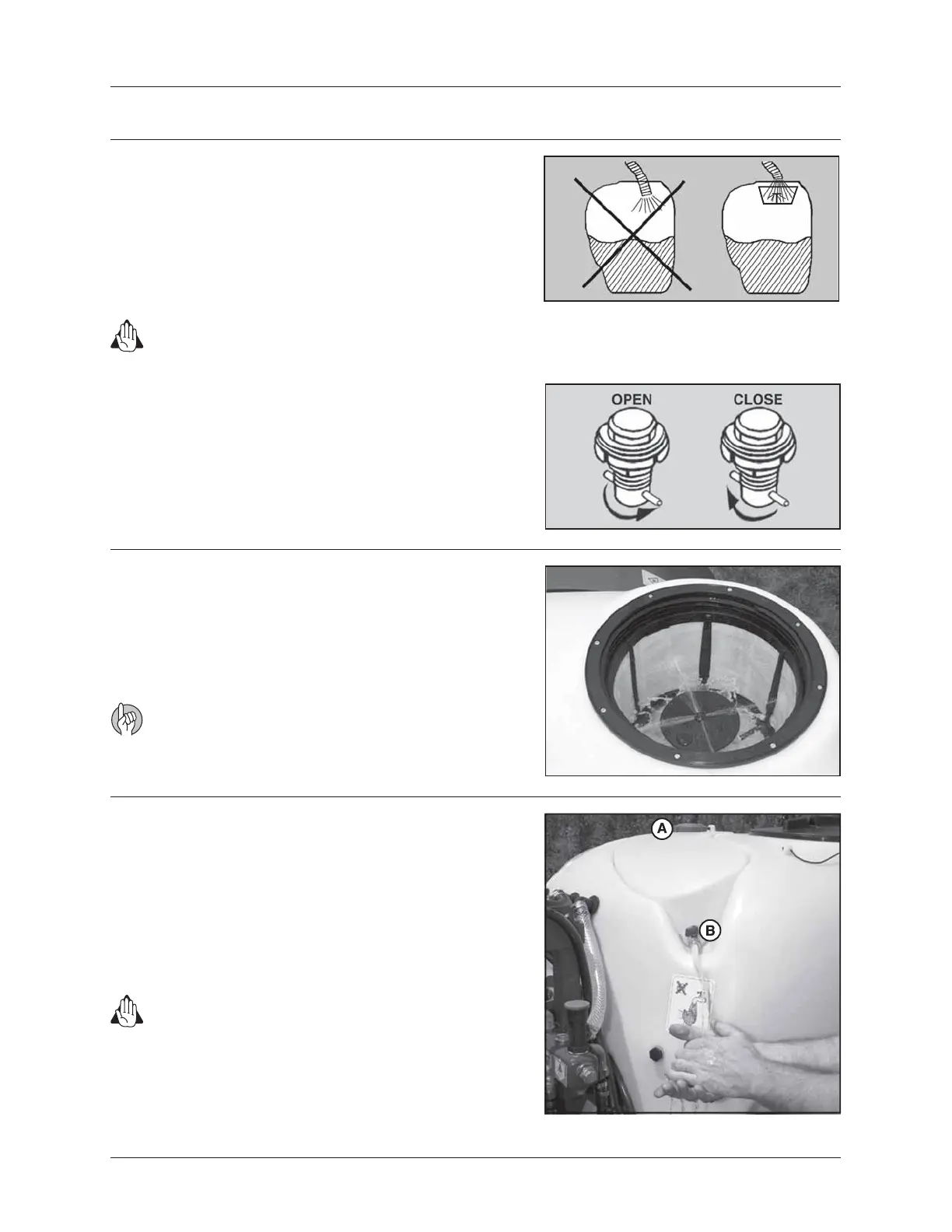

WARNING! Do not let the filling hose enter the tank. Keep it outside the tank, pointing towards the filling hole. If
the hose is lowered into the tank and the water pressure drops at the water supply, chemicals may be siphoned
back and contaminate the water supply lines and source.
Water is filled into the tank by removing the tank lid located on top
of the sprayer tank. It is recommended to use water as clean as pos-
sible for spraying purposes. Always fill water through the strainer
basket to prevent foreign particles from entering the tank. An over-
head tank can be used in order to obtain high filling capacity.
Filling through tank lid
Liquid and air system
WARNING! Although the clean water tank is only filled with
clean water, this water must never be used for drinking.
A clean water tank is integrated into the top of the main tank.
Remove tank lid A, fill with clean water and replace tank lid.
For use of water, turn the ball valve lever B to open tap. The ball
valve is located at the bottom of the clean water tank on sprayer’s
left side. The water from this tank is for hand washing, cleaning of
clogged nozzles, etc. Only fill the clean water tank with clean water.
Capacity: 4 gal. (15 liters).
Filling of clean water tank
The powder mixer is used to rinse the filter basket when adding
powdered products that do not dissolve properly and would other-
wise form lumps on contact with water in the tank.
For operating instructions, see the controls section specific to your
sprayer (e.g. HC/2, BK/2).
Powder mixer
ATTENTION! After use, the powder mixer should be turned off
as it uses a large amount of the available flow.
To empty the tank, turn the pin on the drain valve located at the
bottom of the tank. To close the drain valve, turn the pin back in the
opposite direction.
