4 - Sprayer setup
4.2

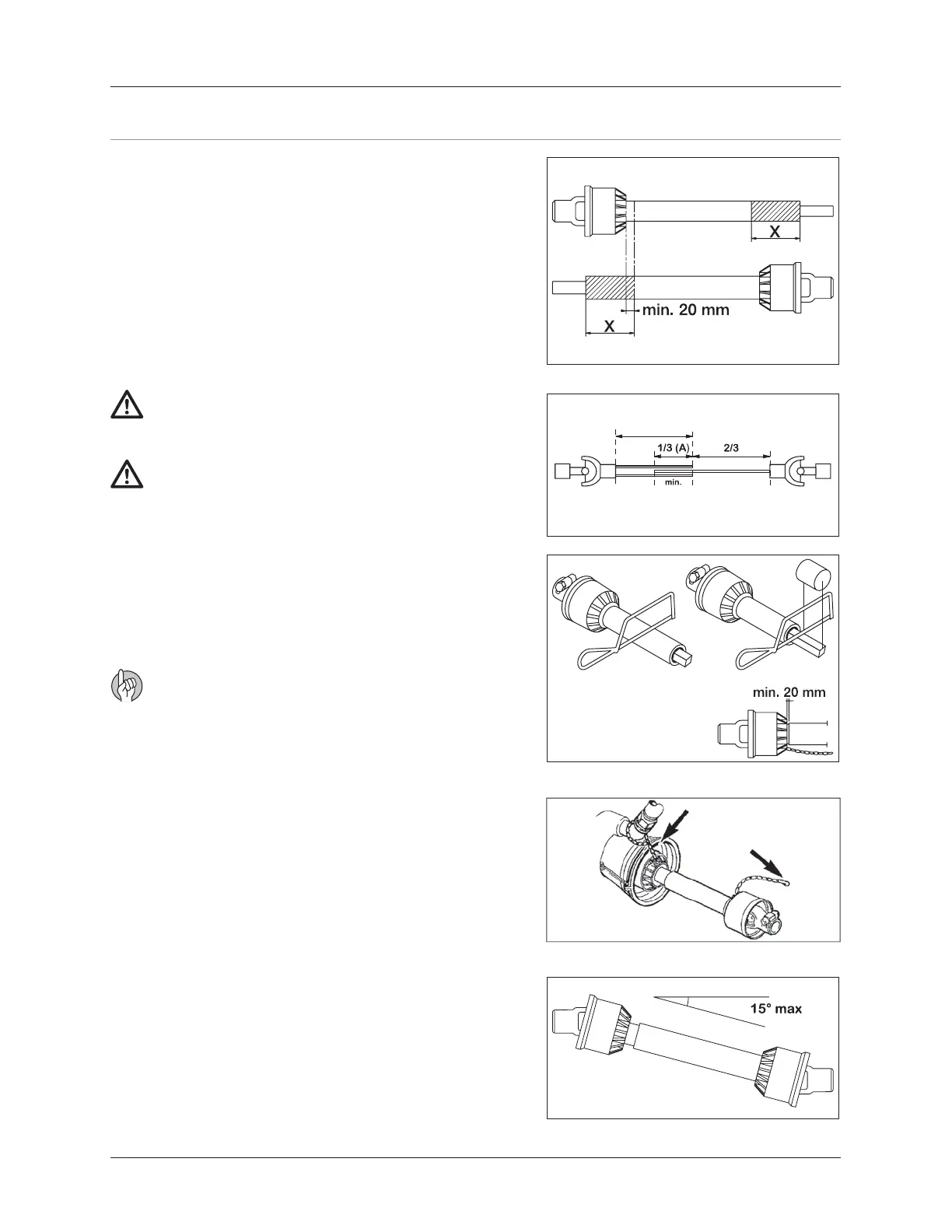

First installation of the transmission shaft is done in the following
way:
1. Attach sprayer to tractor and set sprayer height in the position
with shortest distance between the tractor and sprayer pump P.T.O.
shafts.
2. Stop engine and remove ignition key.
3. If transmission shaft must be shortened, the shaft is pulled apart.
Fit the two shaft parts at tractor and sprayer pump and measure
how much it is necessary to shorten the shaft. Mark the protection
guards.
Transmission shaft - Installation
Mechanical connections
WARNING! Make sure the transmission shaft fits properly the
first time it is installed to prevent damage to the sprayer or
tractor.
7. Fit the chains to prevent the protection guards from rotating with
the shaft.
8. To ensure long life of the transmission shaft, try to avoid working
angles greater than 15°.
4. The two parts are shortened equally. Use a saw, and file the pro-
files afterwards to remove burrs.
5. Grease the profiles and assemble male and female parts again.
6. Fit the shaft to tractor P.T.O. and sprayer pump shaft.
ATTENTION! Female part marked with a tractor towards trac-
tor!
WARNING! The shaft must always have an overlap (A) of a
minimum of 1/3 the length.
