5 - Operation
5.3
The lifting cylinder is controlled via a double acting outlet on the
tractor and allows the CANNON to go from a horizontal position to a
vertical one between -10° to 80°.

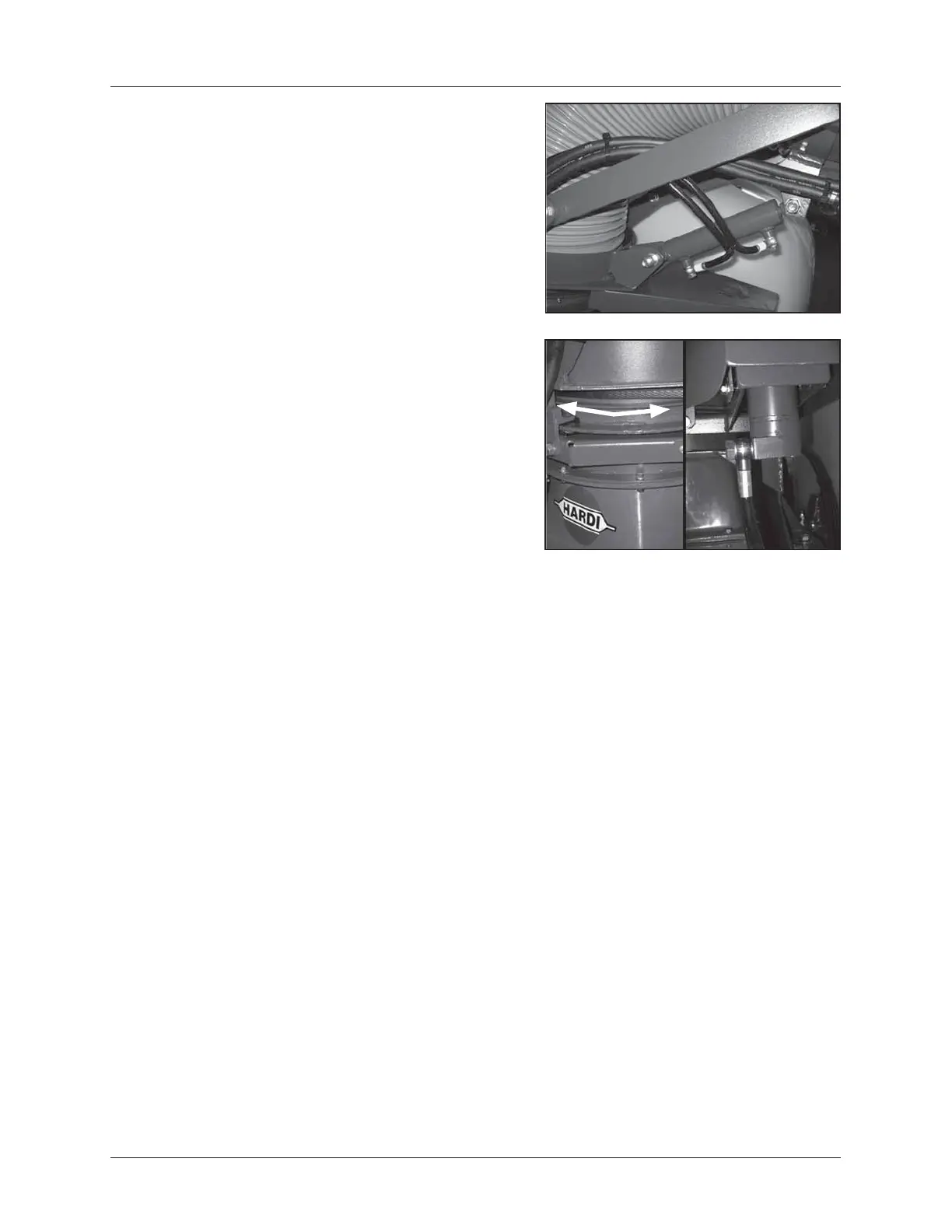

Hydraulic movements of the CANNON model
For a 180° rotation, another double acting outlet is necessary. This
movement enables you to carry out the treatment on one side or
the other of the CANNON, regardless of the direction the tractor is
going.
