Hardi ZENIT - Air Flow and Power Consumption

3 - Description
3.8

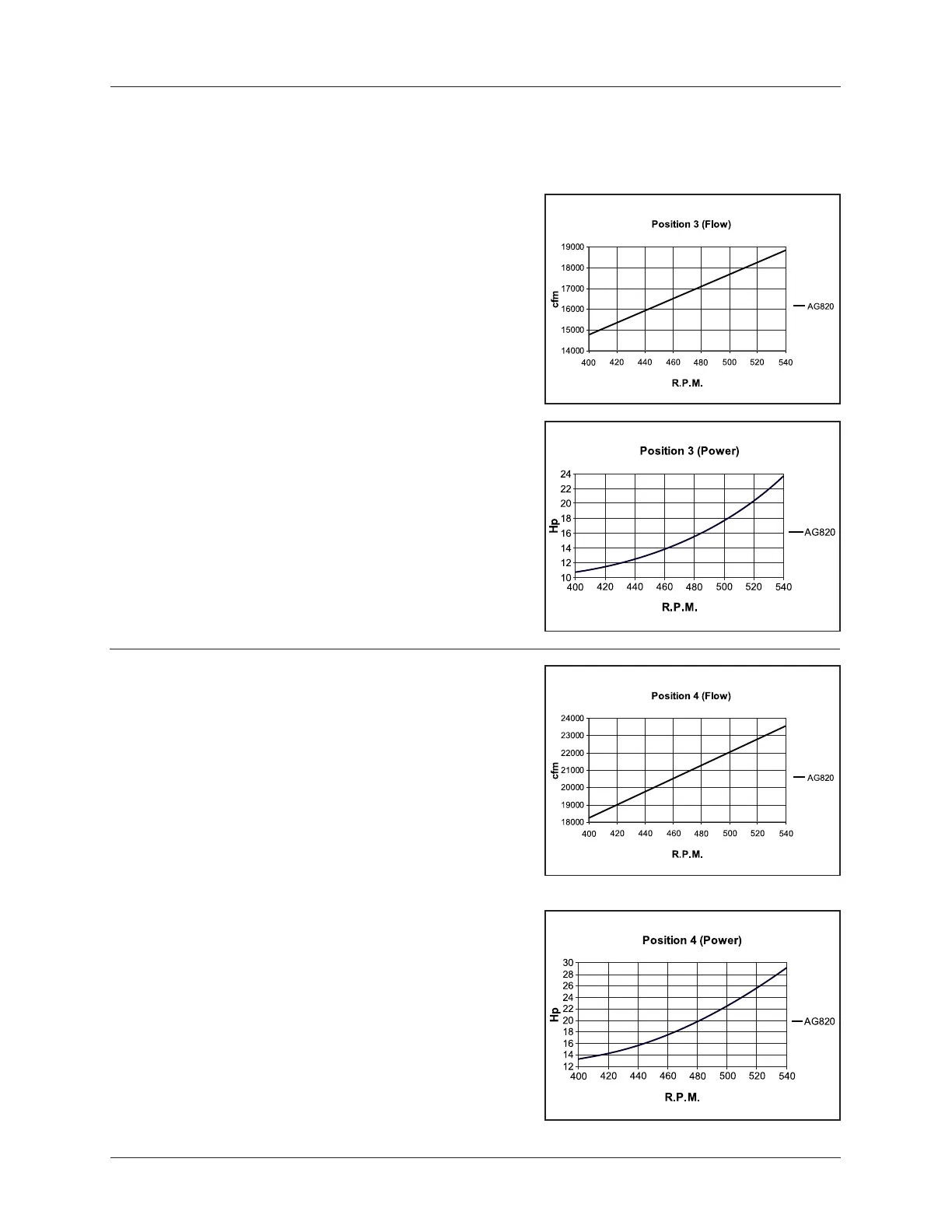

The following graphs show the air flow supplied by the fan and its power consumption. This result can be obtained using
two possible blade positions, namely the 3rd and 4th. See “Sprayer Setup” section: “Adjusting the Fan”.
Air flow and power consumption
Blades in position 3:
Flow
These results have been calculated when the fan is in top gear
(high). To work out the results in first gear, decrease the values by
15%.
Blades in position 3:
Power consumption
These results have been calculated when the fan is in top gear
(high). To work out the results in first gear, decrease the values by
45%.
Blades in position 4:
Flow
These results have been calculated when the fan is in top gear
(high). To work out the results in first gear, decrease the values by
15%.
Blades in position 4:
Power consumption
These results have been calculated when the fan is in top gear
(high). To work out the results in first gear, decrease the values by
45%.
