5 - Operation
5.1
The ZENIT sprayer that is equipped with a pneumatic system can be assembled with the B11 Fixed boom. Several differ-
ent combinations of air spouts can be used, depending on whether it is the pneumatic or hydro-pneumatic air system.
Technical information
Booms

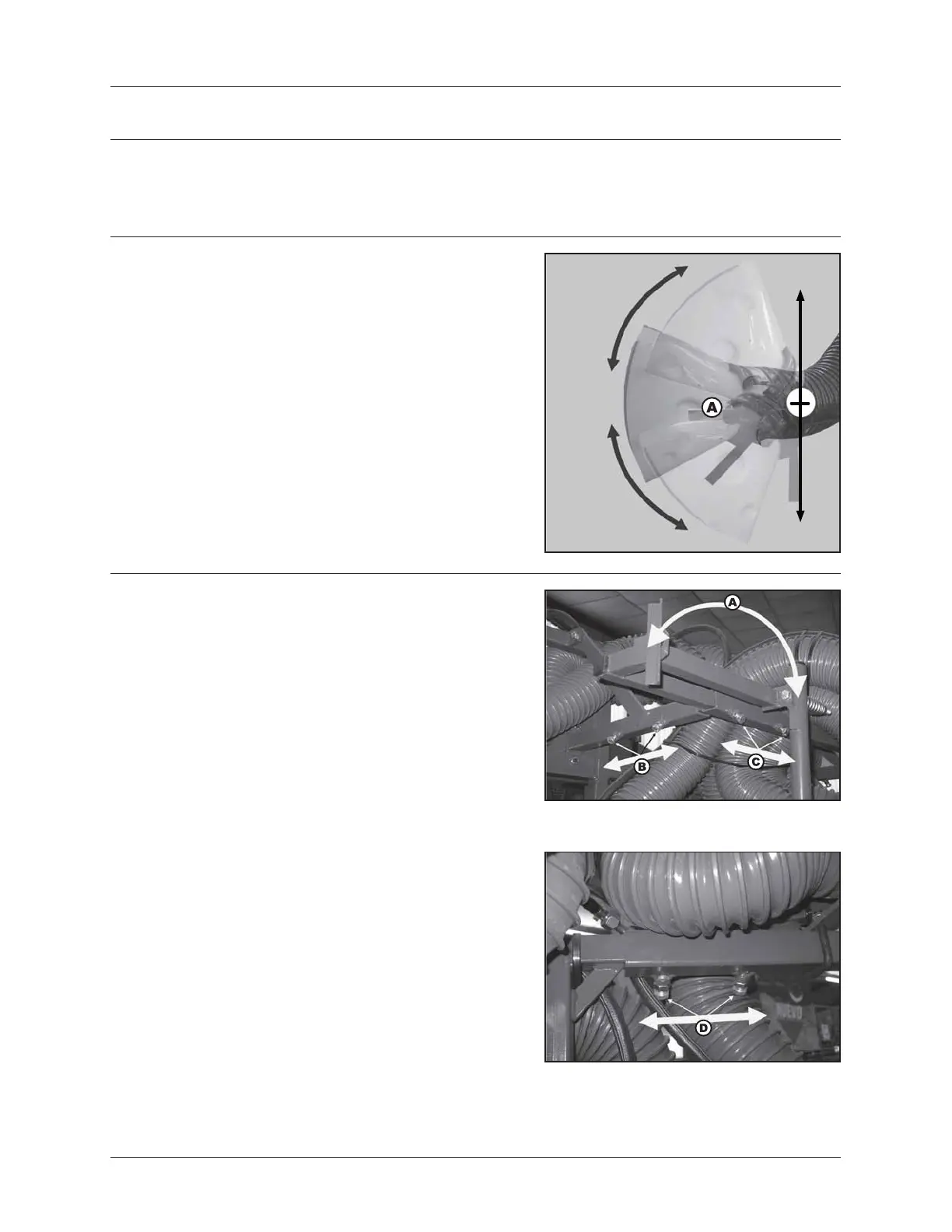

This boom type is for treating one complete row. The spouts are
totally adjustable as far as height and inclination is concerned (A).
The spouts can be totally adapted to the type of crop, either for
treatment in specific areas or a generalized treatment.
B11 Fixed boom
This type of boom is for treating four row sides or two complete
rows. The spouts are totally adjustable as far as height and inclina-
tion is concerned.
By adjusting bracket (A), it is possible to place the spouts closer or
further away from the row, depending on how dense the crop is.
By adjusting bracket (B), it is possible to move all the spouts on the
back forwards or backwards.
By adjusting bracket (C), it is possible to place the spouts closer or
further away from the row, depending on how dense the crop is.
The spouts can be totally adapted to the crop type, either for treat-
ment in specific areas, or a generalized treatment.
B20 Manual and Hydraulic boom
By adjusting bracket (D), it is possible to place the external spouts
closer or further away from the row, depending on how dense the
crop is.
