5 - Operation
5.7

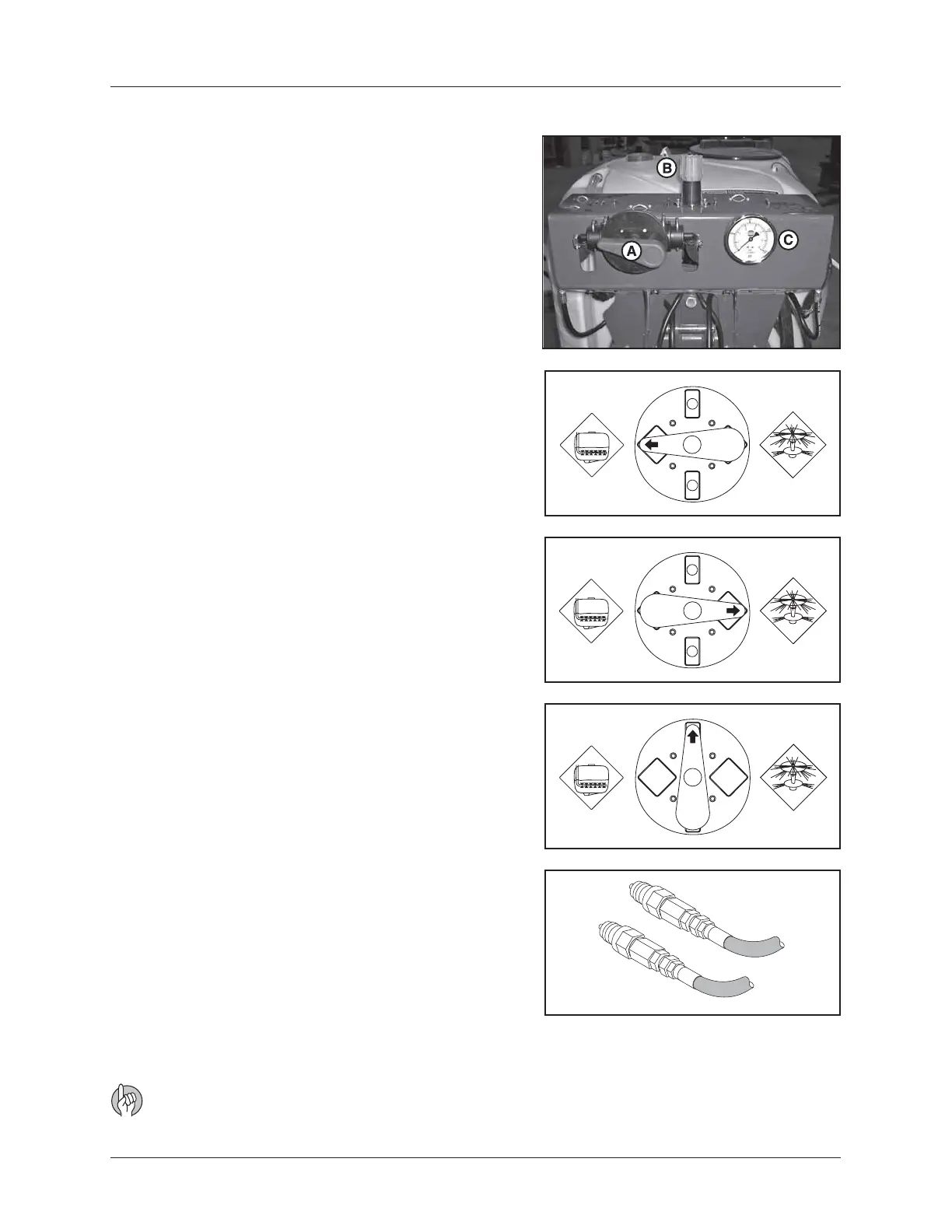

After filling the tank with clean water, locate your sprayer in a suit-
able location to spray water from the nozzles. Before starting the
pump, make sure the pressure regulator valve (B) is turned all the
way out (counter clockwise).
With the pump operating at 540 r.p.m., slowly turn valve (B) in
(clockwise) until the desired pressure is shown on the pressure
gauge (C).
HC/1 or HC/2 Control
To activate pressure agitation, turn the manifold valve (A) to the left
towards the agitation symbol.
To activate the powder mixer, turn the manifold valve (A) to the right
towards the powder mixer symbol.
To turn off both the pressure agitation and the powder mixer, turn
the manifold valve (A) straight up or down.
The left and right blower nozzles are turned on and off by the left
and right hydraulic section valves.
Make sure each hydraulic hose is connected to a separate single-act-
ing hydraulic outlet on the tractor. The nozzles for each section are
turned “On” by pushing the hydraulic lever for that section in one
direction, and turned “Off” by pushing the hydraulic lever for that
section in the opposite direction. The hydraulic lever can be
returned to the neutral position after switching “On” or “Off”.
If you do not like the direction required to activate a nozzle section,
switch positions of the hose in the single-acting outlet for that sec-
tion.
ATTENTION! The HC/1 control for CANNON models has only one hydraulically controlled section valve.
