4 - Sprayer setup
4.5

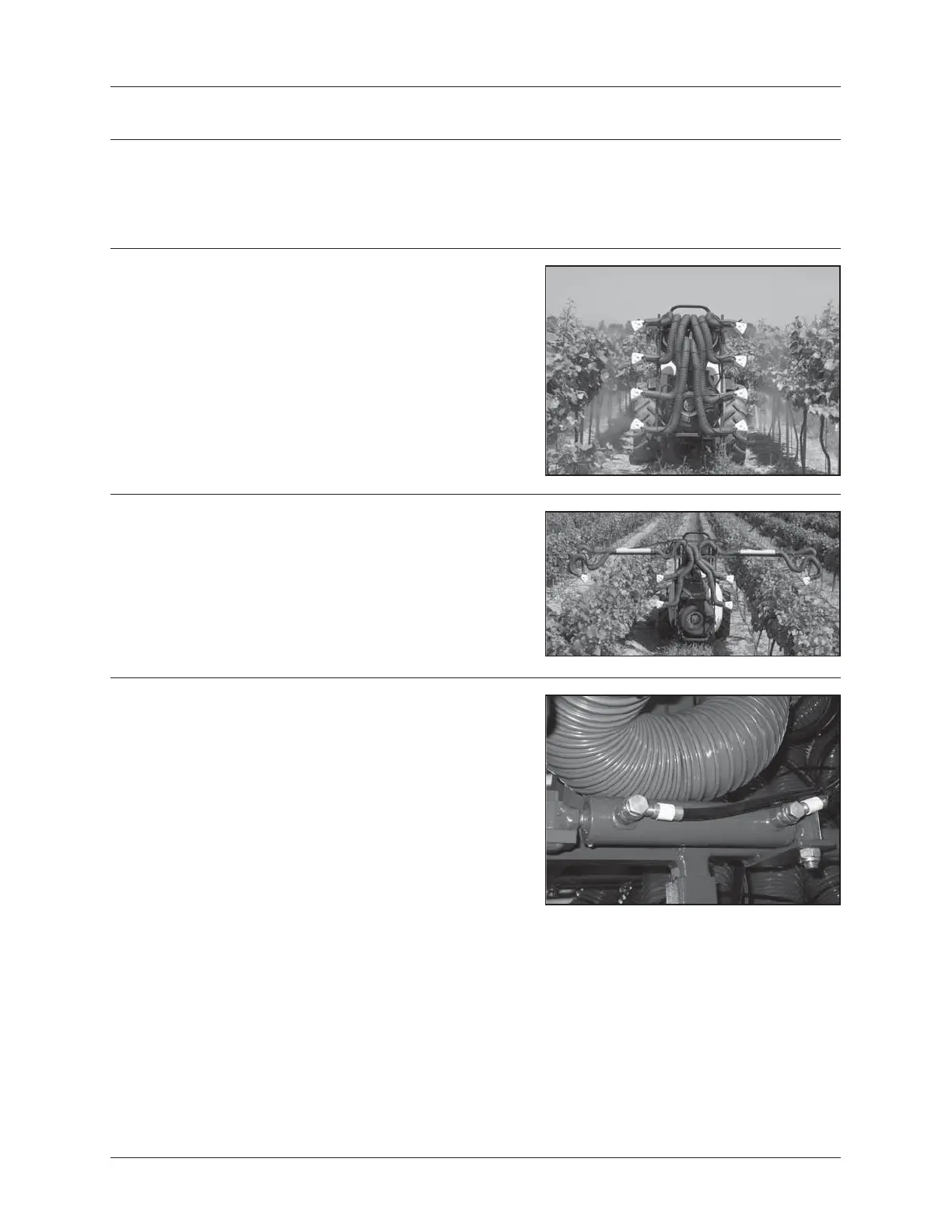

The ZENIT sprayer equipped with a pneumatic blower unit can be attached to the B-11 fixed boom. This boom can be
adapted to several different spout combinations, depending on whether it is a pneumatic or hydro-pneumatic air system.
Technical information
Booms
This type of boom is for treating one complete row. The spouts are
totally adjustable as far as height and inclination is concerned.
Loosen the screws on the spout supports and adapt the height and
width. In order to direct the spout to the area to be treated, it can be
rotated.
The three available spraying systems can be used with this boom.
B11 - Fixed boom
This type of boom is for treating four row sides or two complete
rows. The spouts are totally adaptable to the type of crop. Loosen
the screws on the spout supports and adapt the height and width.
In order to direct the spout to the area to be treated, it can be rotat-
ed.
The left and right side booms can be opened and closed manually.
B20 - Manual boom
This type of boom is for treating four row sides or two complete
rows. The spouts are totally adaptable to the type of crop. Loosen
the screws on the spout supports and adapt the height and width.
In order to direct the spout to the area to be treated, it can be rotat-
ed.
The entire boom is raised and lowered hydraulically. The left and
right side booms are opened and closed hydraulically.
B20 - Hydraulic boom
