Types of Home Theater System Connections and
Making Connections

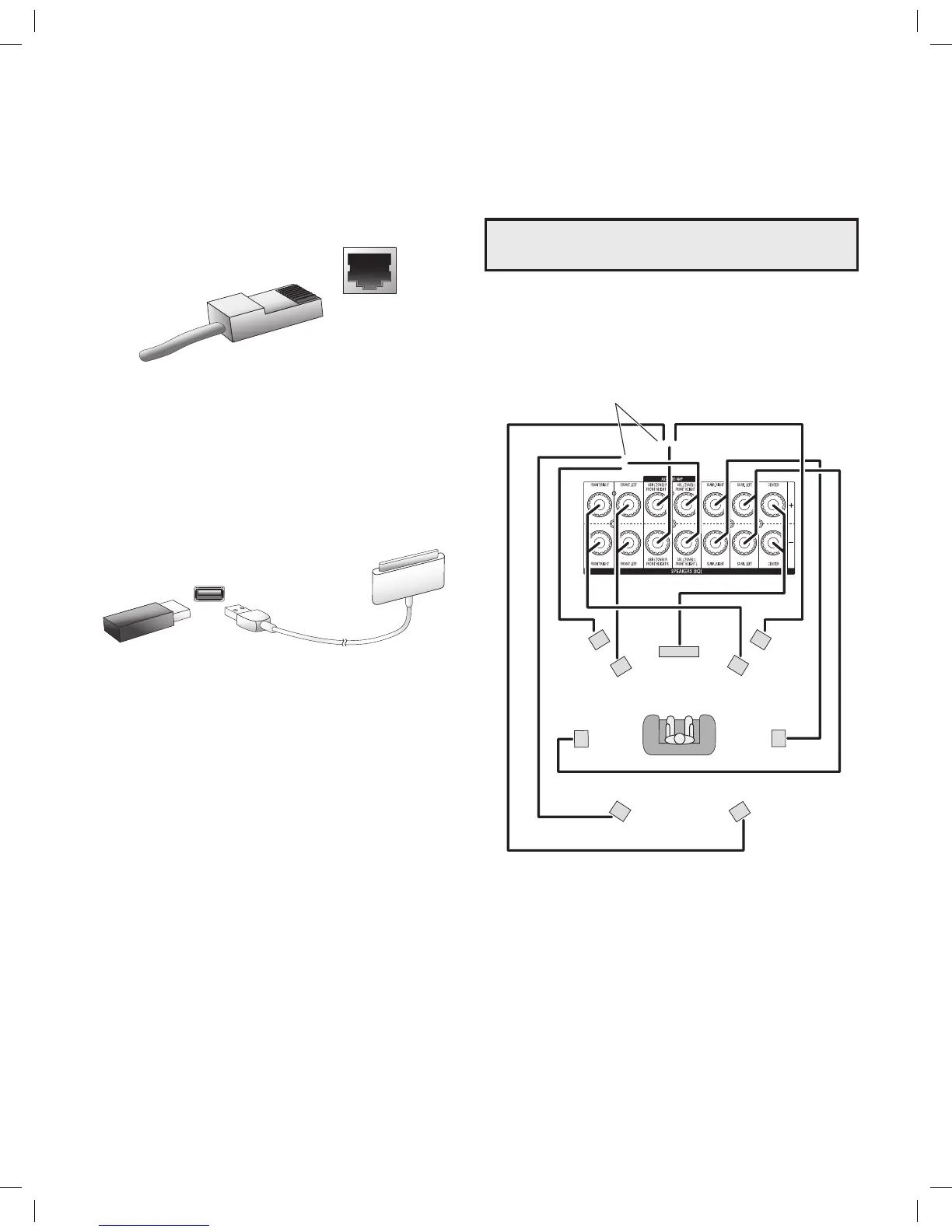

Network Connector
The AVR’s Network connector allows you to enjoy Internet radio or content from other
DLNA or Airplay-compatible devices that are connected to the same network. Use a Cat.
5 or Cat. 5E Ethernet cable to connect the AVR’s RJ-45 connector to your home network.
USB Port
The AVR can play audio files from an Apple iOS
®
device connected to the USB port,
and allows you to control the iOS device via the AVR remote control. The AVR can also
play MP3 and WMA audio files from a USB device inserted into the USB port. Insert the
connector or device into the USB port oriented so it fits all the way into the port. You may
insert or remove the connector or device at any time – there is no installation or ejection
procedure.
The USB port on your AVR is also used to perform firmware upgrades. If an upgrade for
the AVR’s operating system is released in the future, you will be able to download it to the
AVR using this port. Complete instructions will be provided at that time.
IMPORTANT: Do not connect a PC or other USB host/controller to the AVR’s USB
port, or you may damage both the AVR and the other device.
Making Connections
CAUTION: Before making any connections to the audio/video receiver, ensure
that the AVR’s AC cord is unplugged from the AC outlet. Making connections
with the receiver plugged in and turned on could damage the speakers.
Connect Your Speakers
After you have placed your loudspeakers in the room as explained in Place Your Speakers,
on page 11, connect each speaker to its color-coded terminal on the AVR as explained
in Speaker Connections, on page 12. Connect the speakers as shown in the illustration.
C
FHL
(AVR 1710S/
AV
SBL
(AVR 1710S/
AV
FL
SL
FHR
(AVR 1710S/
SBR
(AVR 1710S/
AVR 171S only)
FR
SR
NOTE: If you installed front height speakers, connect them as shown for the SBL an
To Next Page
