20
AVR
Making Connections

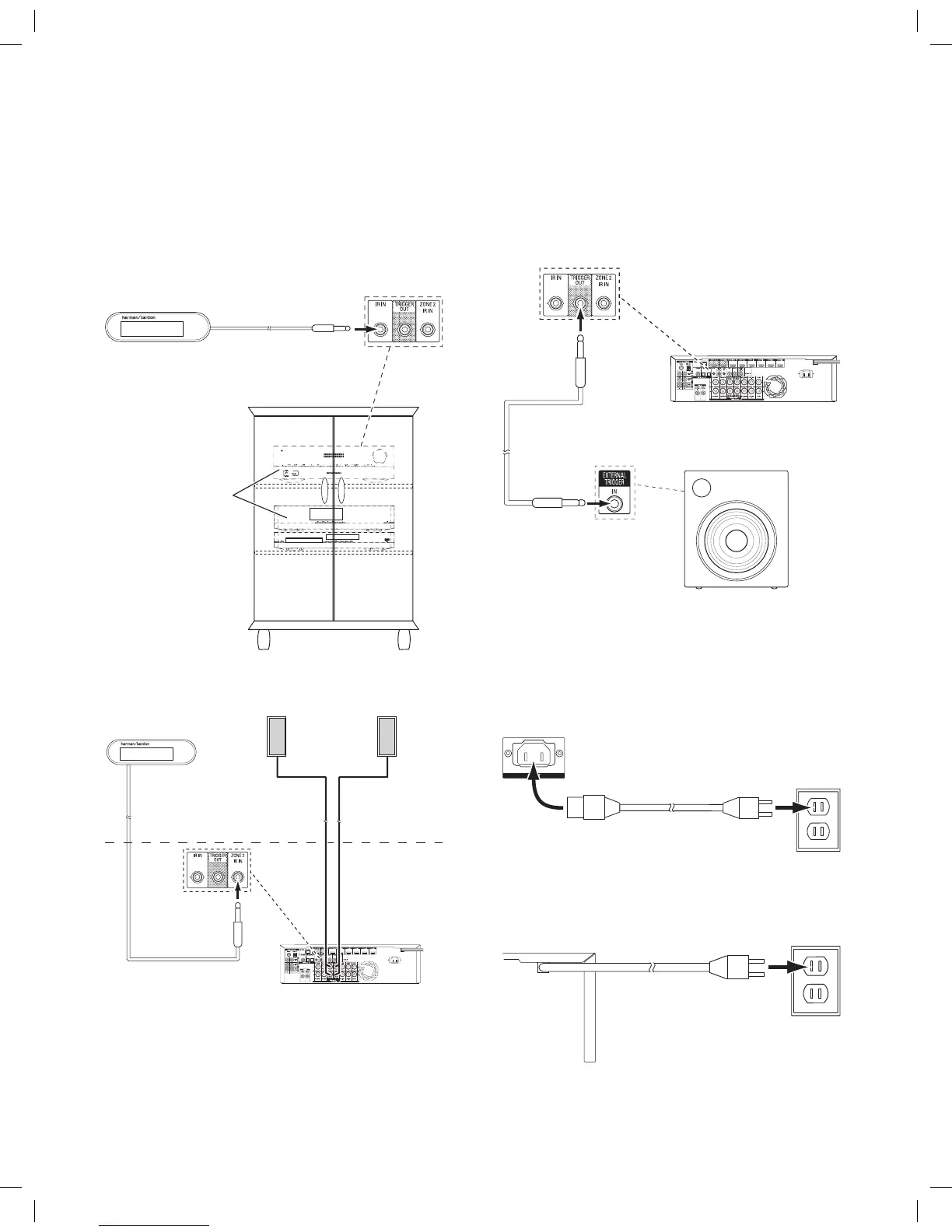

Connect IR Equipment
The AVR is equipped with a Remote IR Input connector that lets you remotely control the
AVR in a variety of situations:
When you place the AVR inside a cabinet or facing away from the listener, connect
an external IR receiver, such as the optional Harman Kardon HE 1000, to the AVR’s
IR In jack.
If you install a multizone system (AVR 1710S/AVR 171S only), connect an IR control
device to the Zone 2 IR In connector for remote-room control of the multizone
system, source devices and volume in the remote zone.
If a source device is shared with the main listening area, any control commands issued
to that source will also affect the main room.
Connect the Trigger Output
If your system has equipment that can be controlled by a DC trigger signal, connect it to
the AVR’s Trigger Out connector with a mono 1/8-inch (3.5mm) mini-plug interconnect
cable. The AVR will supply a 12V DC (100mA) trigger signal at this connection whenever
it is powered on.
Connect to AC Power
AVR 171S/AVR 161S:
Connect the supplied AC power cord to the AVR’s AC Input connector and then to a
working, non-switched AC power outlet.
AC Power
Outlet
AVR
AC Input
Connector
Power Cord (supplied)
AVR 1710S/AVR 1610S:
Connect the AVR’s power cord to a working, non-switched AC power outlet.
External IR
Receiver
AVR and Source Devices
Installed Inside of Cabinet
AVR
Device with
Trigger In Connector
Mono 1/8-inch (3.5mm)
Mini-Plug Interconnect
(not supplied)
External IR Receiver
Zone 2
Main Room
Zone 2 Speakers
AVR
AVR
Power Cord
AC Power
Outlet
TR00306_AVR_OM_161S and 171S_EMEA_B.indb 20 26/05/15 2:29 pm

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Harman Kardon AVR 171S and is the answer not in the manual?

Harman Kardon AVR 171S Specifications

General IconGeneral
Channels7.2
HDMI Inputs6
HDMI Outputs2
BluetoothYes
Wi-FiNo
Dolby TrueHDYes
DTS-HD Master AudioYes
Input Sensitivity/Impedance200mV/47k ohms
Signal-to-Noise Ratio100dB
FM Tuner Frequency Range87.5MHz – 108.0MHz
FM Tuner Signal-to-Noise Ratio (Mono/Stereo)70dB/68dB
FM Tuner Distortion (Mono/Stereo)0.2%/0.3%
AM Tuner Distortion1.0%
HDMI 4K Ultra HD Pass-throughYes
HDMI 3D ReadyYes
Connectivity AirPlayYes
Connectivity DLNAYes
Power RequirementAC 120V, 60Hz
Amplifier TypeClass AB
Frequency Response10Hz – 130kHz
FM Tuner Stereo Separation40dB
Dimensions (H x W x D)121mm x 440mm x 300mm
Weight5.1kg
AM Tuner Usable Sensitivity500µV/m
