Making Connections
Connect Your Subwoofer

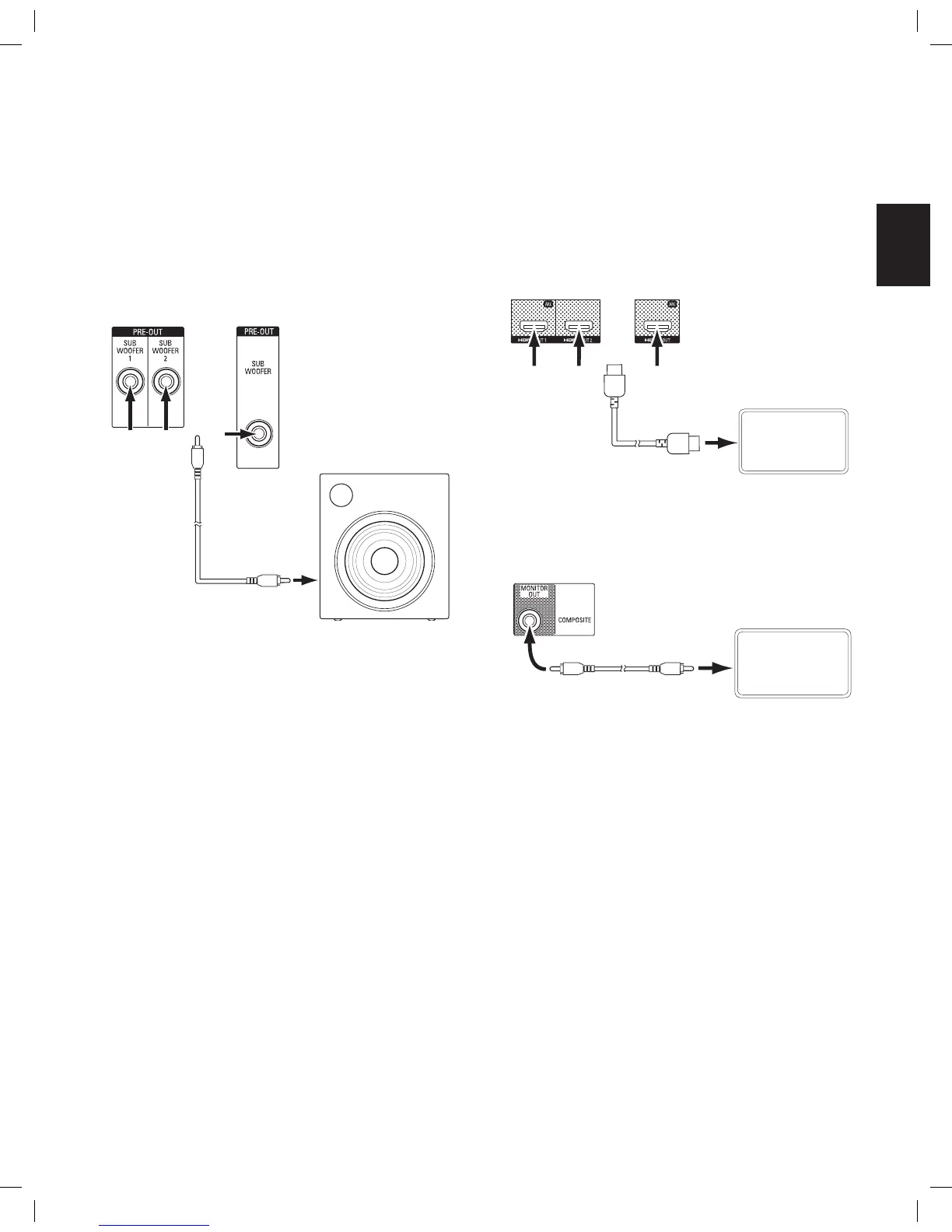

Use a single RCA audio cable to connect the AVR’s Subwoofer connector to your
subwoofer as explained in Subwoofer Connections, on page 12. NOTE: The AVR 1710S and
AVR 171S provide connections for two subwoofers. See Manual Speaker Setup: Number
of Speakers, on page 31, for information about activating the two subwoofer outputs.
Consult your subwoofer’s user manual for specific information about making connections
to it.
Single
RCA Audio
Cable
(not
supplied)
Use either
connector
Powered
Subwoofer
AVR 1710S/
AVR 171S
AVR 1610S/
AVR 161S
Connect Your TV or Video Display
If your TV has an HDMI connector and you have HDMI source devices: Use an HDMI
cable (not included) to connect it to the AVR’s HDMI Monitor Out connector. The AVR
1710S and AVR 171S provide HDMI connections for two TVs (only HDMI Out 1 has ARC
and enables you to view the AVR’s on-screen menus). This will provide the best possible
picture quality.
If your TV does not have an HDMI connector or if your TV does have an HDMI
connector but you are connecting some source devices with only composite video
connectors: Use a composite video cable (not included) to connect the AVR’s Composite
Monitor Out connector to your TV’s composite video connector.
TV
AVR Composite
Monitor Out Connector
Composite Video Cable
(not supplied)
NOTE: If you use only the composite video connection to your TV, you will not be able to
view the AVR’s on-screen menus.
TV
HDMI Cable
(not supplied)
Use HDMI
Out 1 for
the primary
display
AVR 1710S/AVR 171S AVR 1610S/AVR 161S
TR00306_AVR_OM_161S and 171S_EMEA_B.indb 15 26/05/15 2:29 pm

Harman Kardon AVR 171S Specifications

General

Channels	7.2
HDMI Inputs	6
HDMI Outputs	2
Bluetooth	Yes
Wi-Fi	No
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Input Sensitivity/Impedance	200mV/47k ohms
Signal-to-Noise Ratio	100dB
FM Tuner Frequency Range	87.5MHz – 108.0MHz
FM Tuner Signal-to-Noise Ratio (Mono/Stereo)	70dB/68dB
FM Tuner Distortion (Mono/Stereo)	0.2%/0.3%
AM Tuner Distortion	1.0%
HDMI 4K Ultra HD Pass-through	Yes
HDMI 3D Ready	Yes
Connectivity AirPlay	Yes
Connectivity DLNA	Yes
Power Requirement	AC 120V, 60Hz
Amplifier Type	Class AB
Frequency Response	10Hz – 130kHz
FM Tuner Stereo Separation	40dB
Dimensions (H x W x D)	121mm x 440mm x 300mm
Weight	5.1kg
AM Tuner Usable Sensitivity	500µV/m
