Harman Kardon AVR 171S User Manual

17
AVR
ENGLISH

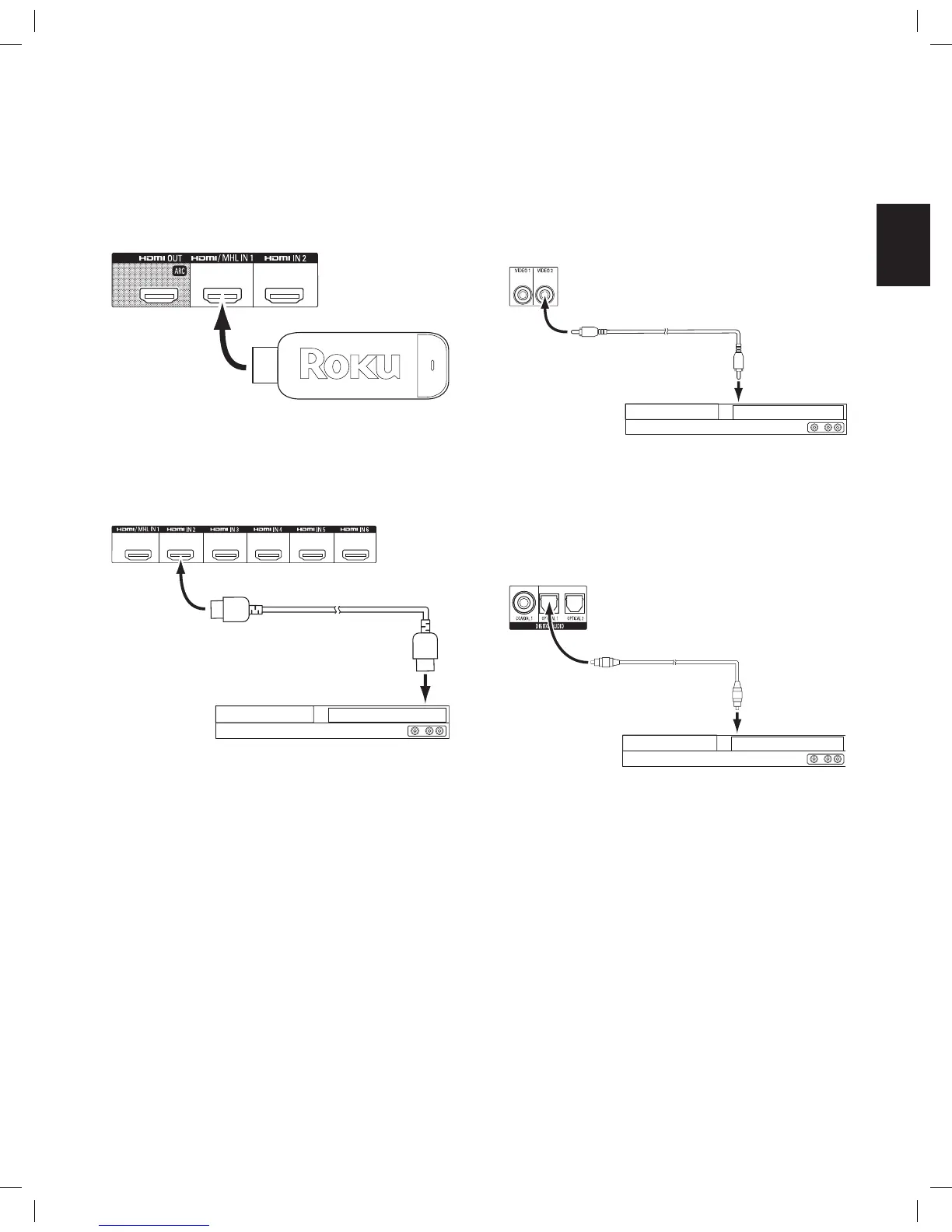

Making Connections
Roku Streaming Stick
™
:
If you have a Roku Streaming Stick device, insert it into the AVR’s HDMI/MHL In connector.
NOTE: Do not insert the Roku Streaming Stick device into any other HDMI In connector.
Connect Your HDMI Devices
If any of your source devices have HDMI connectors, using them will provide the best
possible video and audio performance quality. Since the HDMI cable carries both digital
video and digital audio signals, you do not have to make any additional audio connections
for devices you connect via an HDMI cable.
NOTE: If you have HDMI devices (such as an Internet connection) already connected
directly to your TV, you can feed their sound to the AVR via the HDMI Out connector’s
Audio Return Channel, and they will not require additional connections to the AVR. AVR
1710S/AVR 171S only: Only the HDMI Out 1 connection has the Audio Return Channel.
Connect Your Composite Video Devices
Use composite video connectors for video source devices that don’t have HDMI
connectors. You will also need to make an audio connection from the source device to
the AVR.
AVR Composite In Connectors
Composite-Equipped Source Device
Composite Video Cable (not included)
To Composite
Video Output
Connect Your Optical Digital Audio Devices
If your non-HDMI source devices have optical digital outputs, connect them to the AVR’s
optical digital audio connectors. NOTE: Make only one type of digital connection (HDMI,
optical or coaxial) from each device.
AVR HDMI/MHL In Connector
Roku
®
Streaming Stick
AVR HDMI
C
onnectors
HDMI-E
q
ui
pp
ed Source Device
HDMI Cable
(not supplied)
To HDMI
Output
AVR Digital
Audio Connectors
O
p
tical-E
q
ui
pp
ed Source Device
Optical Digital Audio
Cable (not supplied)
To Optical Digital
Audio Output
TR00306_AVR_OM_161S and 171S_EMEA_B.indb 17 26/05/15 2:29 pm

Harman Kardon AVR 171S Specifications

General

Channels	7.2
HDMI Inputs	6
HDMI Outputs	2
Bluetooth	Yes
Wi-Fi	No
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Input Sensitivity/Impedance	200mV/47k ohms
Signal-to-Noise Ratio	100dB
FM Tuner Frequency Range	87.5MHz – 108.0MHz
FM Tuner Signal-to-Noise Ratio (Mono/Stereo)	70dB/68dB
FM Tuner Distortion (Mono/Stereo)	0.2%/0.3%
AM Tuner Distortion	1.0%
HDMI 4K Ultra HD Pass-through	Yes
HDMI 3D Ready	Yes
Connectivity AirPlay	Yes
Connectivity DLNA	Yes
Power Requirement	AC 120V, 60Hz
Amplifier Type	Class AB
Frequency Response	10Hz – 130kHz
FM Tuner Stereo Separation	40dB
Dimensions (H x W x D)	121mm x 440mm x 300mm
Weight	5.1kg
AM Tuner Usable Sensitivity	500µV/m
