CONTROL UNIT
11

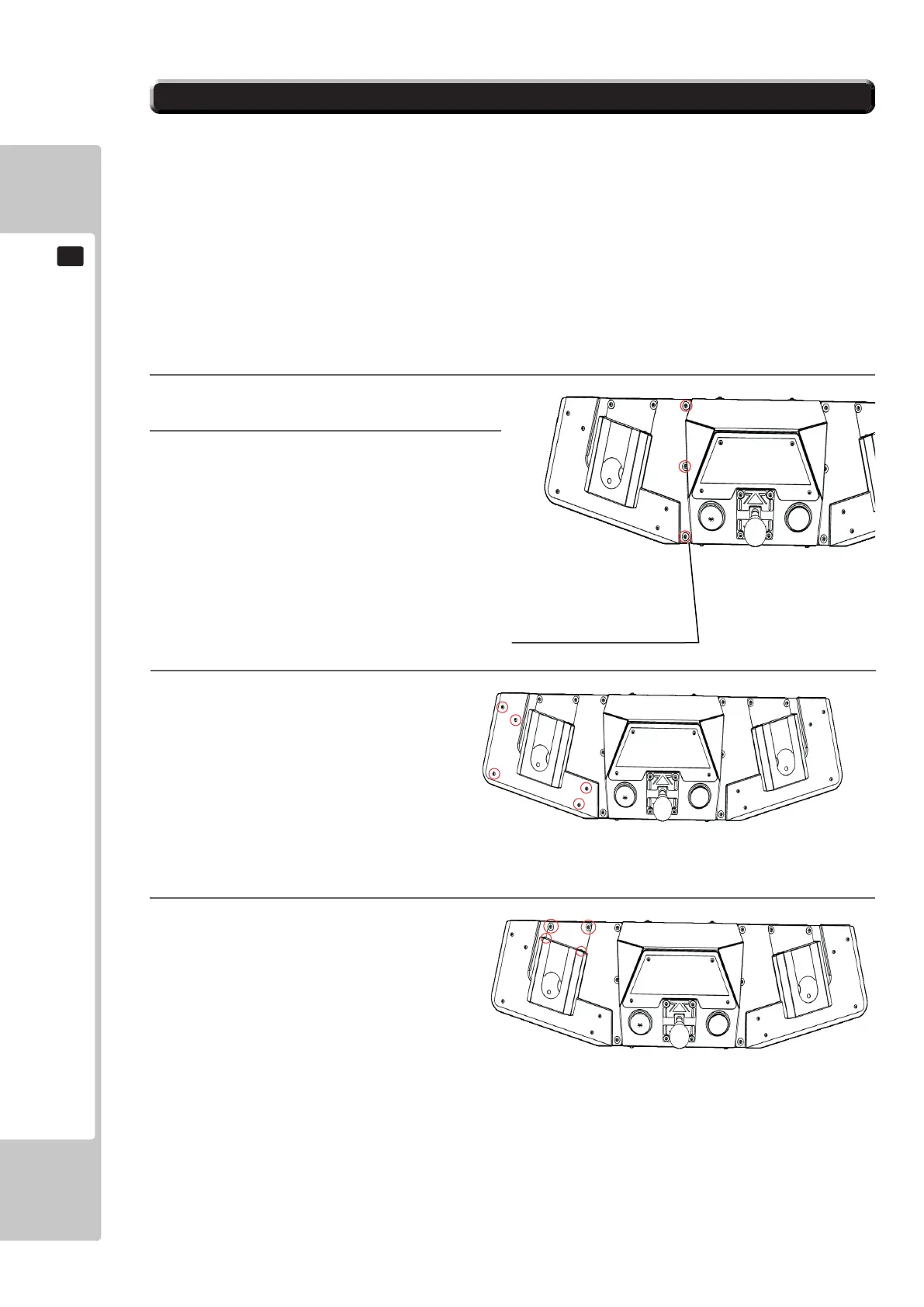

11-1 HOW TO REMOVE CONTROL UNIT
When changing the volume or microswitches in the Control Unit you must rst remove the Control Unit. Performing
these operations with the Control Unit still attached is dicult and may damage parts or wires.
The following tools are needed for the following procedure.
- Phillips head screwdriver (for M6)
- Wrench or screwdriver for tamperproof screws (for M4)
- A 7 millimeter spanner, hexagonal screwdriver, or socket wrench
Note: this will display the removal of the Controller Unit for the left side (Player 1). The removal of the right
Controller Unit (Player 2) is identical in terms of xing removal.
1
Turn o the power
2
Remove the (3) M4x20 screws which secure the
Control Unit to the Control Panel Assy
FIG. 11-1a
FIG. 11-1b
FIG. 11-1c
3
Remove the (5) Internal Hex screw
which secure the Control Panel Cover.
4
Remove the (4) Internal Hex screw which
secure the Control Panel Base Plate.
M4X20 SCREW
