70
EXPLANATION OF TEST AND DATA DISPLAY
9
Perform tests and data checks periodically by manipulating the TEST Button and SERVICE Button in the cabinet.
Follow the instructions in this chapter to conduct checks when the game machine is rst installed, when money is
being collected, or when the game machine does not operate properly.
Shown below are the tests and screens to be used for dierent problems.
For this reason, the product’s Test Mode consists of two modes: a System Test Mode for systems in which coin set-
tings, for instance, are made for products that use the same system, and a Game Test Mode for setting of diculty
level, etc., and for input/output test of operational units used exclusively with this product.
The SWITCH UNIT and COUNTERS are housed within the COINTOWER. To access these controls you will need
to open the COIN door. The switches and counters can be found directly on the rear face of the Tower.

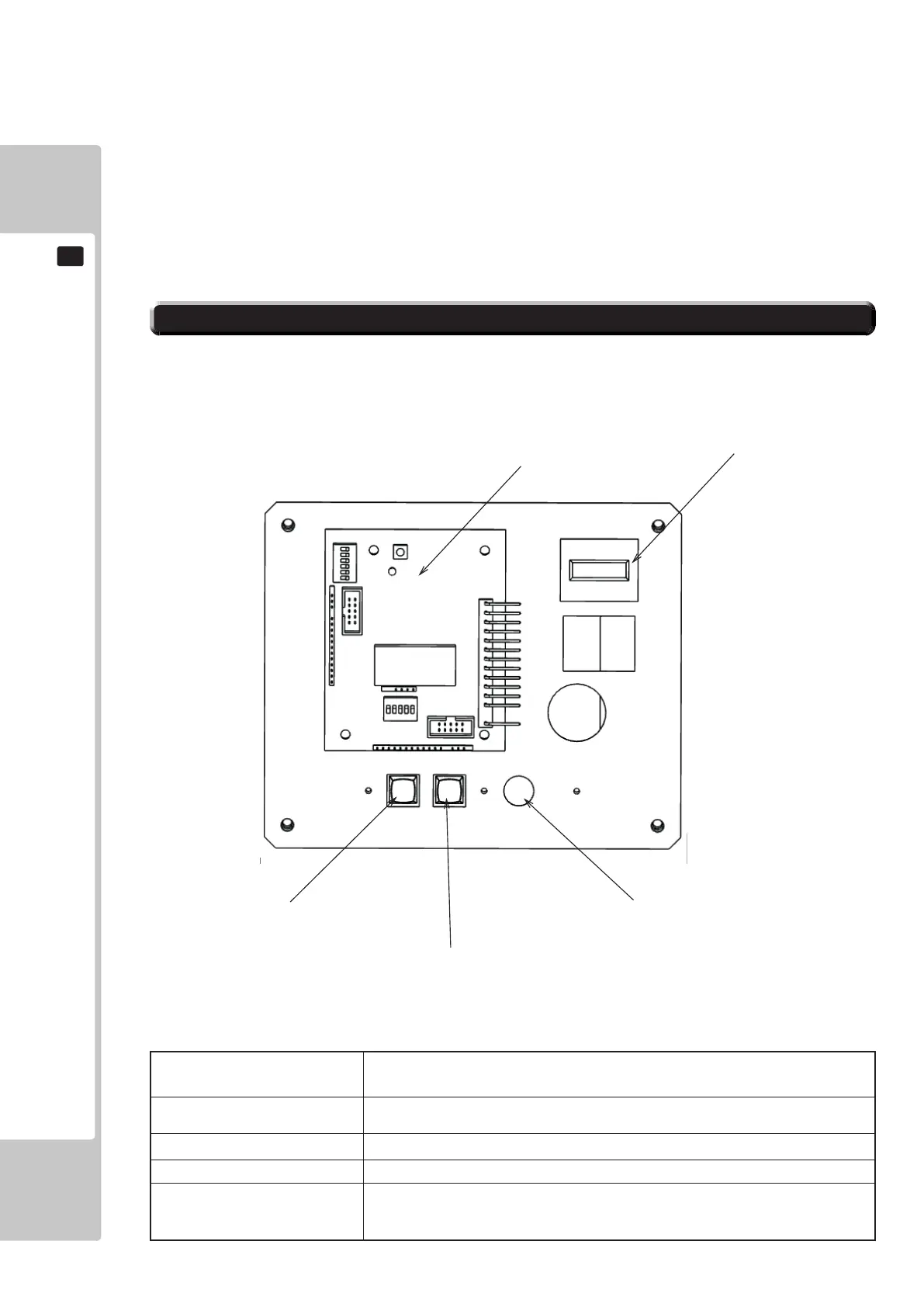

9-1 SWITCH UNIT AND COIN METER.
CREDIT BOARD
COIN IN COUNTER
VOLUME CONTROL
SERVICE BUTTON
TEST BUTTON
DEVICE FUNCTION
TEST BUTTON Press to enter TEST MODE - Also used to enter choices selected
within TEST MODE
SERVICE BUTTON Press for SERVICE CREDIT - Also used to scroll through TEST MENUs
COIN IN COUNTER Counts inserted coins (£0.10 or $0.10 = 1 count)
VOLUME CONTROL Adjusts audio level
FIG. 9-1a Switch Unit
