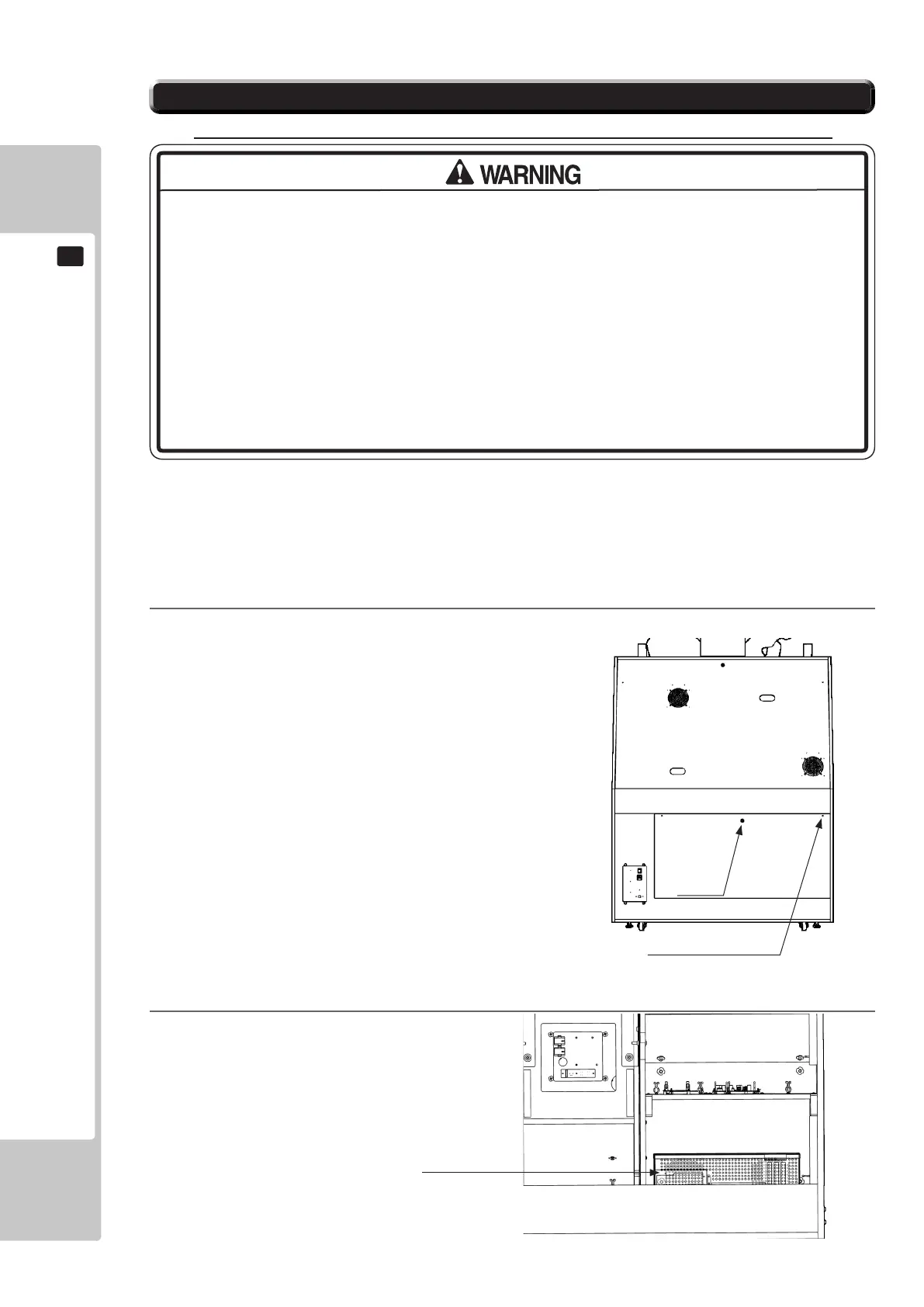

40
ASSEMBLY AND INSTALLATION
6
When connecting the DVD wire connector, check the orientation carefully and
connect securely. The connector must be connected in the proper direction. If
it is connected in the wrong direction or indiscriminately at an incline so that a
load is applied, the connector or its terminal pins could break, causing a short
circuit or re.
Be careful not to damage the DVD wire by getting it caught between objects,
etc. Doing so may cause a short circuit or re.
Connect the DVD DRIVE to the Game BD before connecting the power. Adhere
strictly to the proper sequence in performing work. Failing to do so may cause
electrical shock or short circuit.
1
Remove the (2) M4x25 Truss Screws from the upper corners of the door. Unlock the door using the A444
key (supplied) and place to one side,
You will need the supplied DVD software kit, board number sticker, and the separately sold DVD DRIVE and DVD
wire. To prepare for software installation, you will need to connect the Game BD and DVD DRIVE inside the cabi-
net using the DVD wire.
The Game BD is the Computer metal case found inside the rear door on the left hand side on the vertical face..
2
The Ring Edge 2 is positioned on the Right
Hand side.
FIG. 6-15a
FIG. 6-15b
PLEASE NOTE THAT THIS PRODUCT IS DESPATCHED WITH SOFTWARE PRE-INSTALLED
6-15 CONNECTING THE DVD DRIVE
TRUSS SCREW (2), black
M4x25
Lock
Ring Edge 2
