Hasbro Sega Transformers Shadows Rising User Manual

32
ASSEMBLY AND INSTALLATION
6

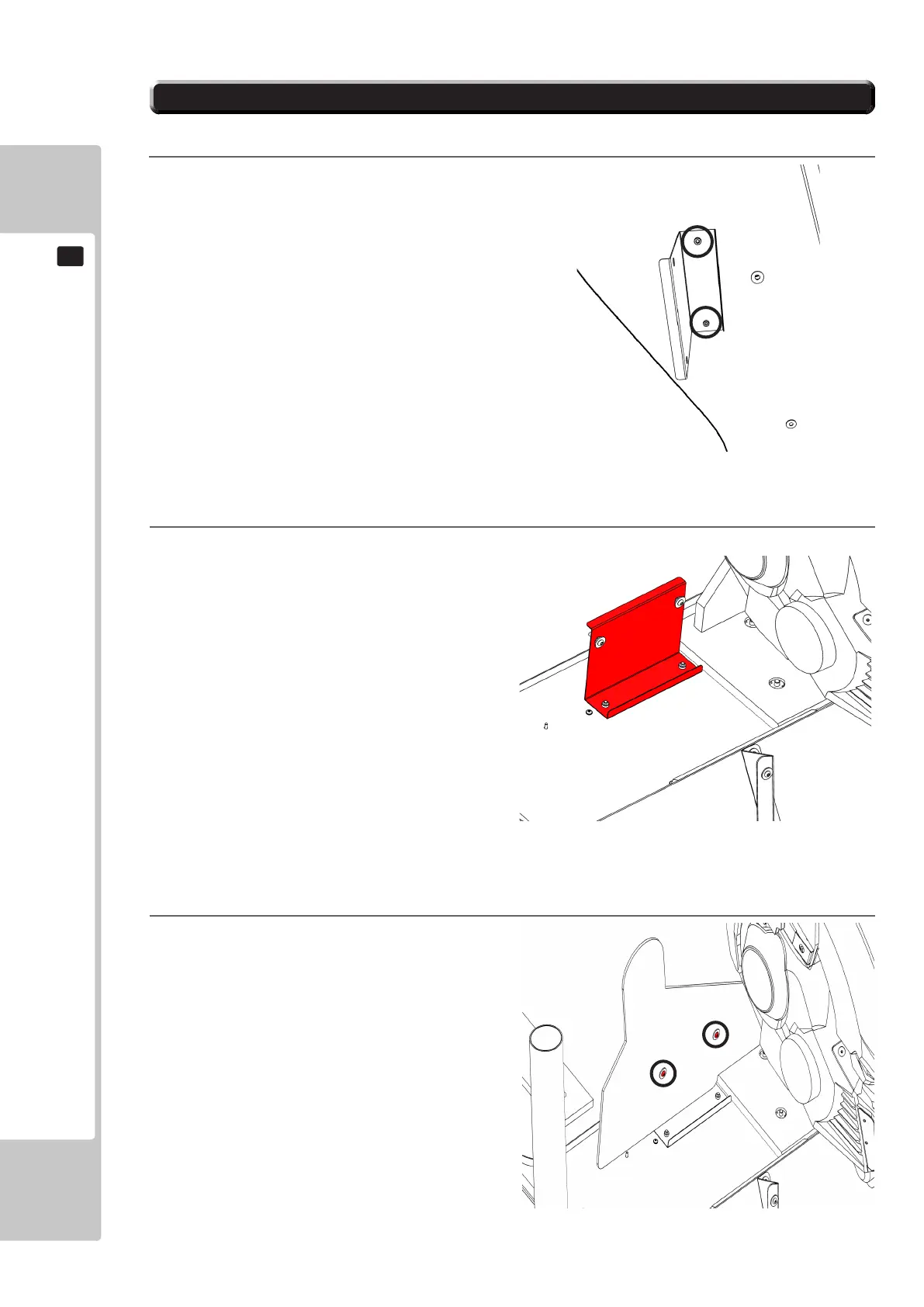

6-9 ATTACHING THE SHOULDER PANELS
2
Secure the BRKT SUPPORT SHOULDER
to the roof of the Rear Cabinet using the (2)
M6 xings. Note: these xings are orientated
“up”, meaning they are secured from inside the
cabinet facing up and out.
1
Remove the BRKT SUPPORT SHOULDER
from the interior of the REAR CABINET
FIG. 6-9b
3
Remove the (2) highlighted M6 xings.
Place the pop panel graphic as shown in the
illustration and reapply xings to secure.
Repeat this process for the right hand side.
FIG. 6-9c
FIG. 6-9a
