118
GAME BOARD
16

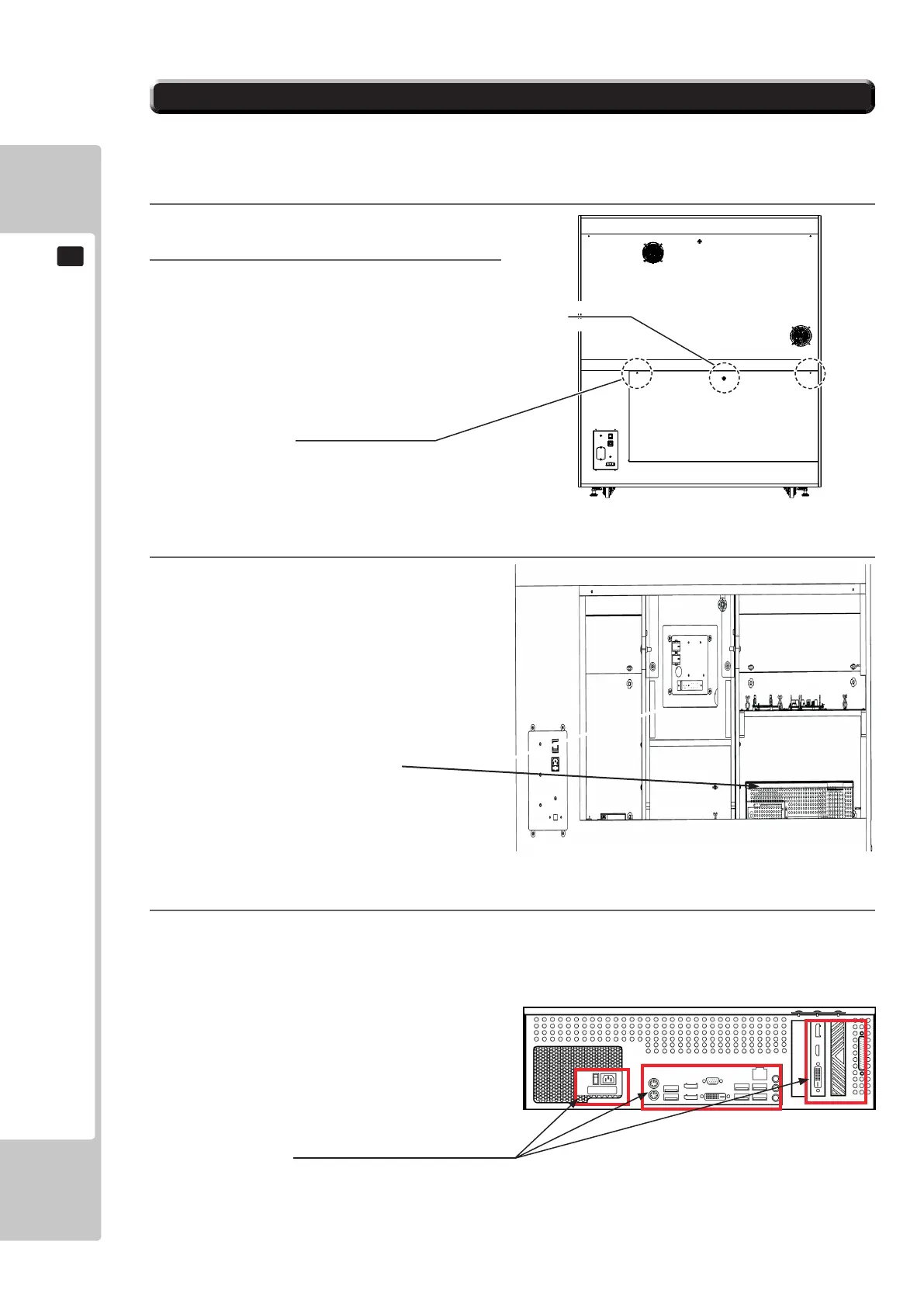

16-1 HOW TO REMOVE GAME BOARD
The game board is inside the rear door mounted in the bottom right hand corner.
1
Turn o the power.
2
Remove the door release xings (Phillips (2))
from the door.
FIG. 16-1a
3
Unlock with the master key and remove the
access door. The Game Bd is located in the
bottom right corner.
FIG. 16-1b
4
Disconnect all of the connectors connected to
the Game Bd.
FIG. 16-1c
(2) MSCR POZ BLK
LOCK
GAME BD
Carefully disconnect all
connection to from the
Game Bd
M4x30
A444
