ASSEMBLY AND INSTALLATION
6
ASSY ROOF
6-1 UNPACKING THE CABINET
PART LOCATION
ASSY ROOF Shrink wrapped to REAR CABINET
ASSY EXHAUST PIPE (X2) Placed within REAR CABINET
ASSY BILLBOARD Placed within REAR CABINET
ASSY JOINT GUN CABI REDUCED Top Box packaging
ASSY JOINT BRIDGE (X2) Placed within REAR CABINET
ASSY FLOOR PANEL (L & R) On either side of REAR CABINET
MID SASH Attached to one of two FLOOR PANELS
JOINT SASH SIDE (L & R) Top Box packaging
REAR SASH Within Situ
BRKT FRONT JOINT TOP (X2) Within Situ
POP PANEL Placed within REAR CABINET
POP PANEL SUPPORT BRKT Placed within REAR CABINET
ASSY TOP BOX (LIGHT BOX) Top Box packaging
BRKT SUPPORT SHOULDER (X2) Secured to inner walls of REAR CABINET
ASSY SEAT Secured to REAR CABINET
RODENT SHUT OFF Placed within REAR CABINET
OP SHOULDER (L & R) Placed within REAR CABINET
ASSY SEAT
ASSY POP PANEL
POP PANEL
SUPPORT BRKT
BRKT SUPPORT
SHOULDER
TOP BOX
FIG. 6-1a
TS-3600UK
TS-0900UK
TS-0007UK
TS-0905UK
TS-0902UK
TS-0004UK
ASSY EXHAUST PIPE (X2)
TS-0700UK
ASSY BILLBOARD
TS-0500UK
Check parts required for installation
There are numerous components and brackets required to fully prepare the cabinet for operation. Detailed below are a list
of all parts required to fully install the machine and their whereabouts upon rst unpacking the cabinet. Note: “Within Situ”
means that the part is located in place on the cabinet, but requires the securing xings to be removed and then resecured after
the necessary installation steps have been taken.

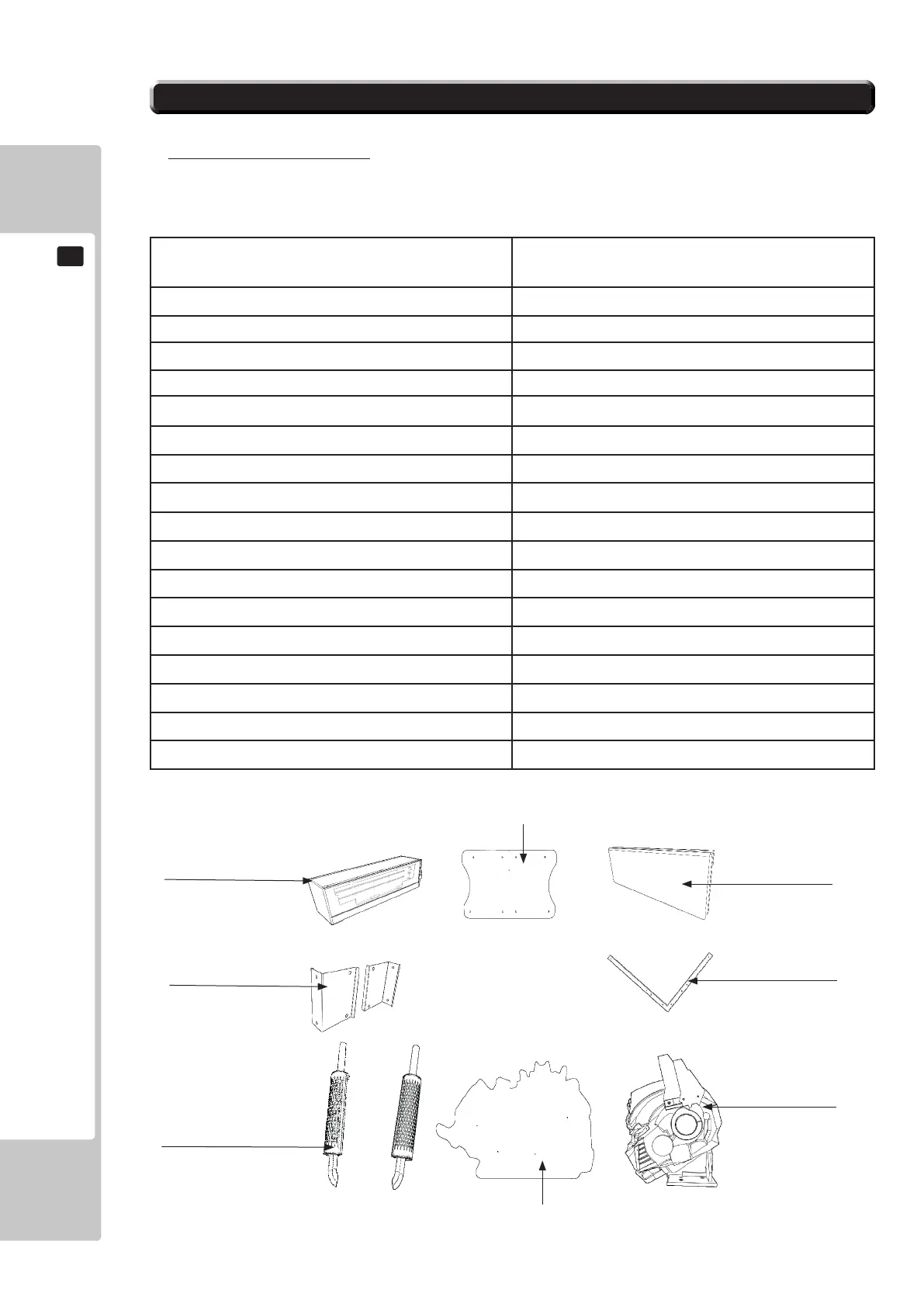

Below is a illustrated diagram of the components required to carry out assembly and installation of this cabinet:
