30
ASSEMBLY AND INSTALLATION
6

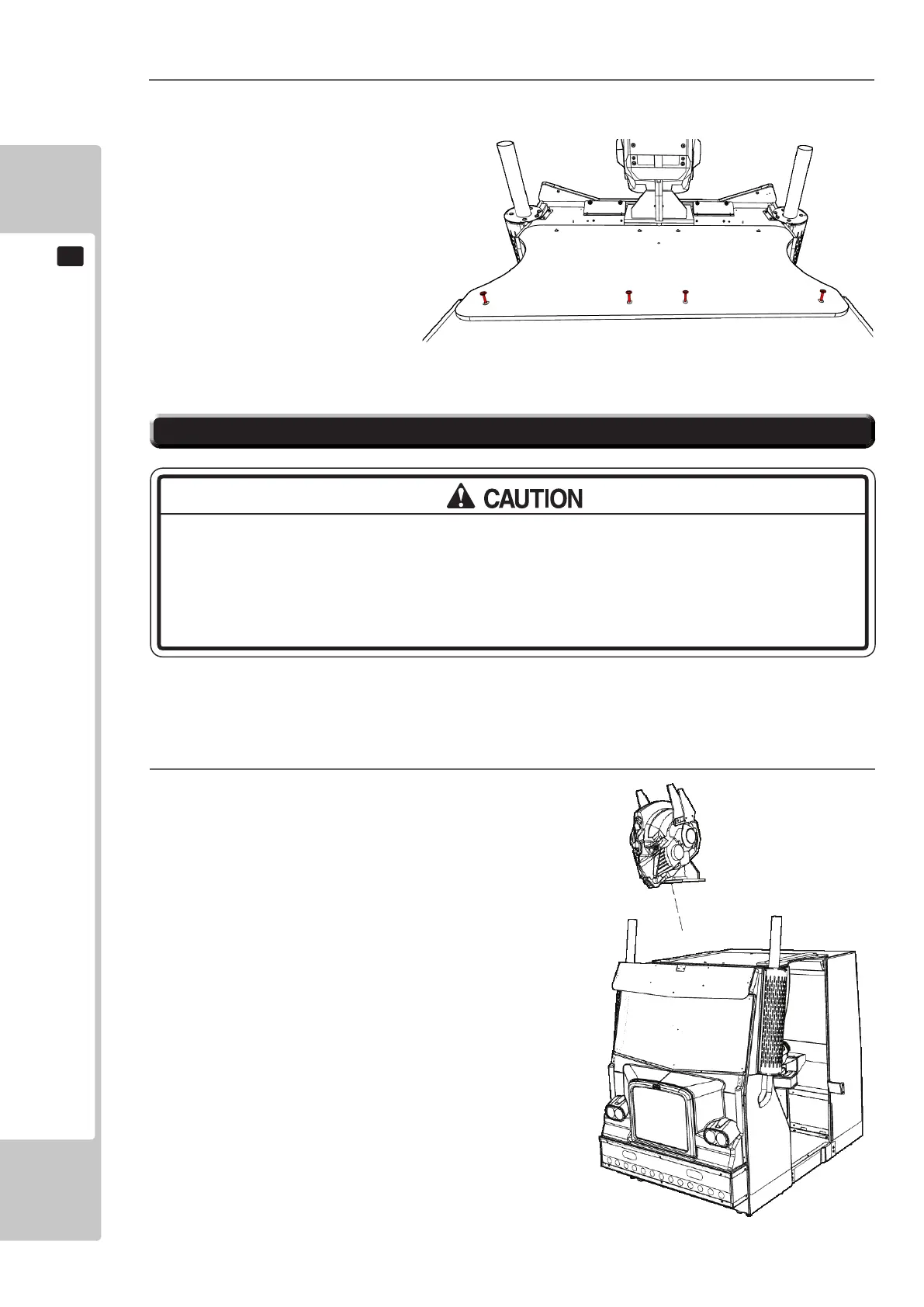

FIG. 6-8a
Whilst in transit, the Billboard is placed within the Rear Cabinet and secured with a single xing. The Billboard
weights in excess of 8kg. At least two people must work together to perform this operation. Some parts of the Bill-
board are fragile, so take care when handling.
● Handle molded parts with care. Excessive weight or pressure may cause them
to break and the broken pieces may cause injury.
● Use at least two people when carring out this operation. Trying to carry out this
work single handedly may result in injury or component damage.
FIG. 6-7c
3
Secure the (4) M6 Fixings on top of the MONITOR CABINET in the orientation show in illustration (facing
down into the cabinet).
1
Align the billboard with the xing points on the roof of
the cabinet.
To Next Page
