ASSEMBLY AND INSTALLATION
6
To correctly join the two cabinets together, the GUN
CABINET must rst be extended out and away from
the MONITOR CABINET.
Extracting the GUN CABINET can be quite dicult,
so it is recommended to apply the JOINT BRIDGE
brackets and secure them to the REAR CABINET to
provide some leverage.
6-4 JOINING THE CABINETS
1
Fix the JOINT BRIDGE L to the left hand side of the MONITOR CABINET using the PLATE JOINT
BRIDGE SECURE. Secure the bracket using the high strength studs on the underside of the bracket.
Follow the same procedure for the JOINT BRIDGE R on the right hand side. Align and secure to the REAR
CABINET.

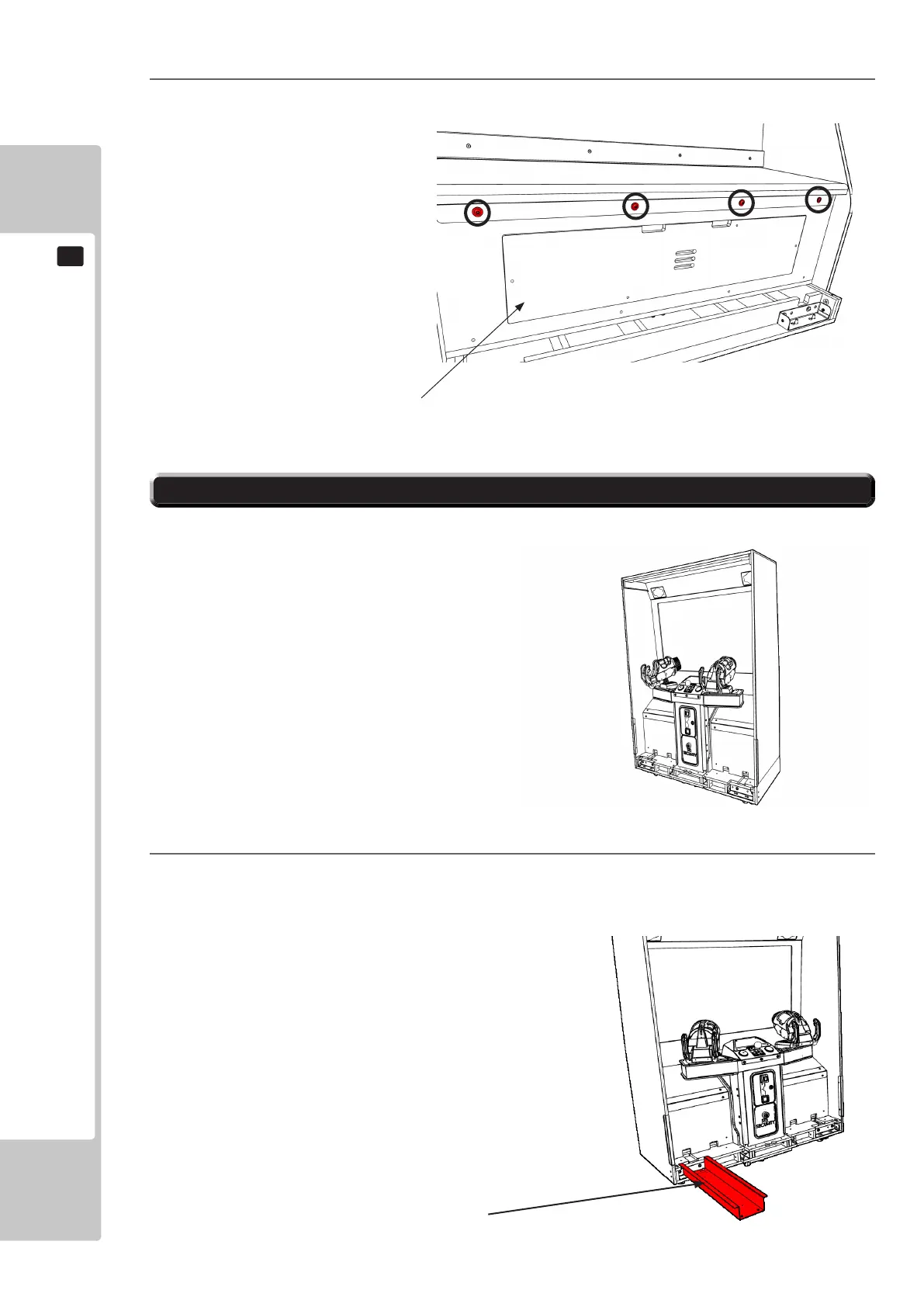

FIG. 6-4b
FIG. 6-4a
4
Secure the seat panel with the (4) M8 xings shown and place the DOOR SEAT LOWER in place.
JOINT BRIDGE L
FIG. 6-3d
DOOR SEAT LOWER
To Next Page
