ASSEMBLY AND INSTALLATION
29
6
2
Secure the (4) M6 Fixings on top of the REAR CABINET in the orientation show (facing up and out of the
cabinet).
1
Using 2 people, place the Panel Roof in the orientaion shown on top of the cabinet.
FIG. 6-7a
FIG. 6-7b
6-7 ATTACHING THE ROOF
ROOF PANEL
3

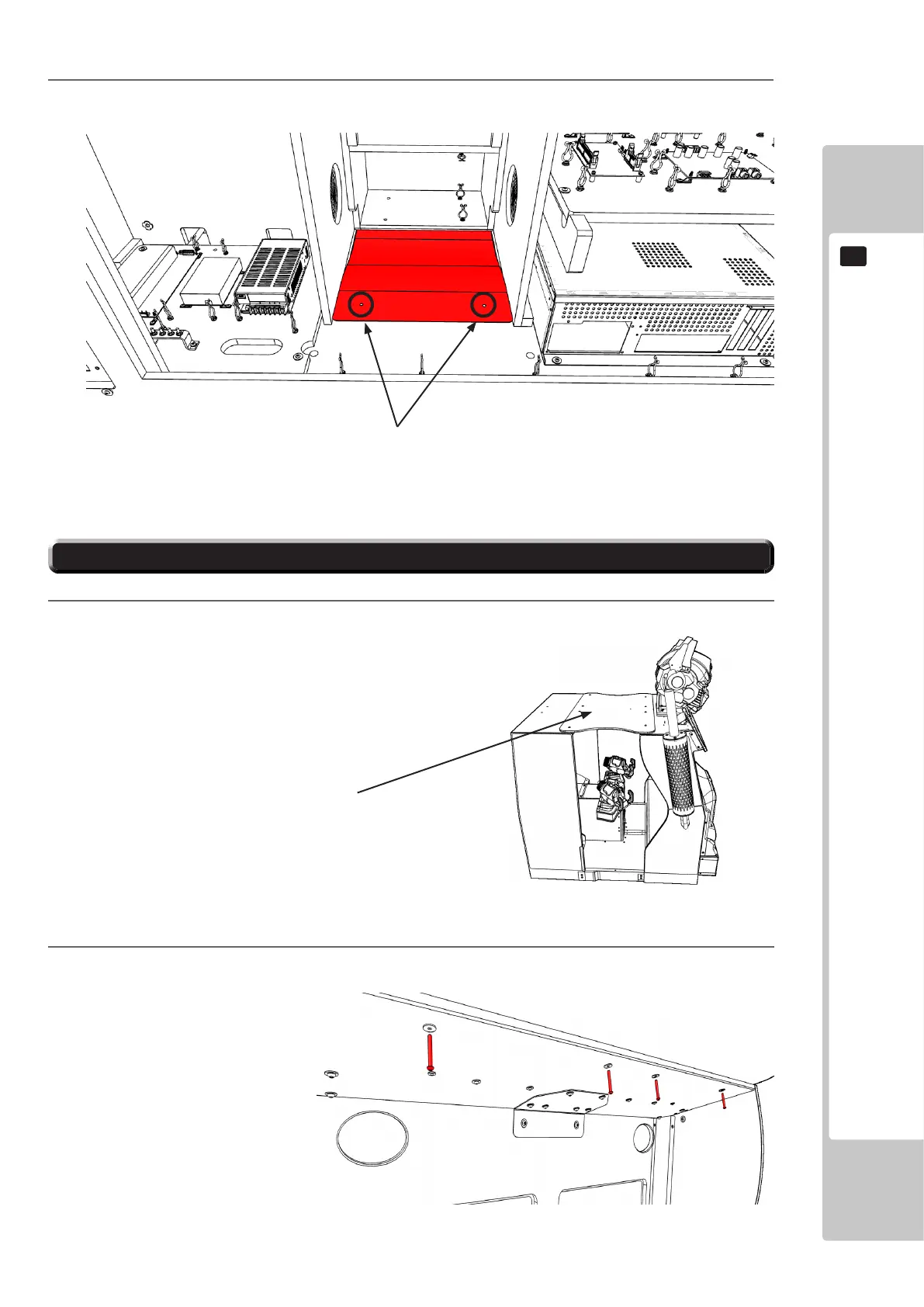

Once the GUN CABINET is secure, x the RODENT SHUT OFF PANEL in place using (2) M4X25 x-
ings.
M4 FIXINGS
FIG. 6-6c
