Information Display Screen
When “SYSTEM INFORMATION,” “STORAGE INFORMATION,” or “JVS TEST” has been selected on
the system test mode menu, system information, game information and information on JVS I/O board con-
nected to the Game BD are displayed.
If each category of information is displayed without anomalies, the Game BD is normal.
2
JVS Input Test Screen
When “INPUT TEST” has been selected on the JVS test screen, data input to the JVS I/O board is
displayed. On the product, this is the screen for the testing coin switch.
Insert a coin. If the display to the side of the switch changes, the switch and wiring connections are normal.
3
Monitor Test Screen
When “MONITOR TEST” has been selected on the system test mode menu, the screen for checking
monitor adjustment status appears.
Projector adjustment is completed when the product is shipped from the factory, but you should observe the
test screen to determine whether further adjustment is necessary. Refer to Chapter 10 and adjust the monitor
if necessary.
4
Speaker Test Screen
When “SPEAKER TEST” has been selected on the system test mode menu, the screen for checking speaker
sound output appears.
To conrm that audio output is normal, have test sound output from the game unit’s speaker.
5
Input Test
When “INPUT TEST” has been selected on the game test mode menu, the screen for testing input device
appears. Test operate the input device by pressing each switch. If the display on the side of each input de-
vice changes to “ON” and numerical values change smoothly in accordance with each operation, the input
device and its wiring connections are normal. (See 9-3a.)
Use test mode to conrm that assembly is proper, and that the Game BD, connecting boards, and input/output de-
vices are normal.
Perform the following tests in test mode.
For tests (1) to (7), refer to the TEST AND DISPLAY DATA within this Manual.

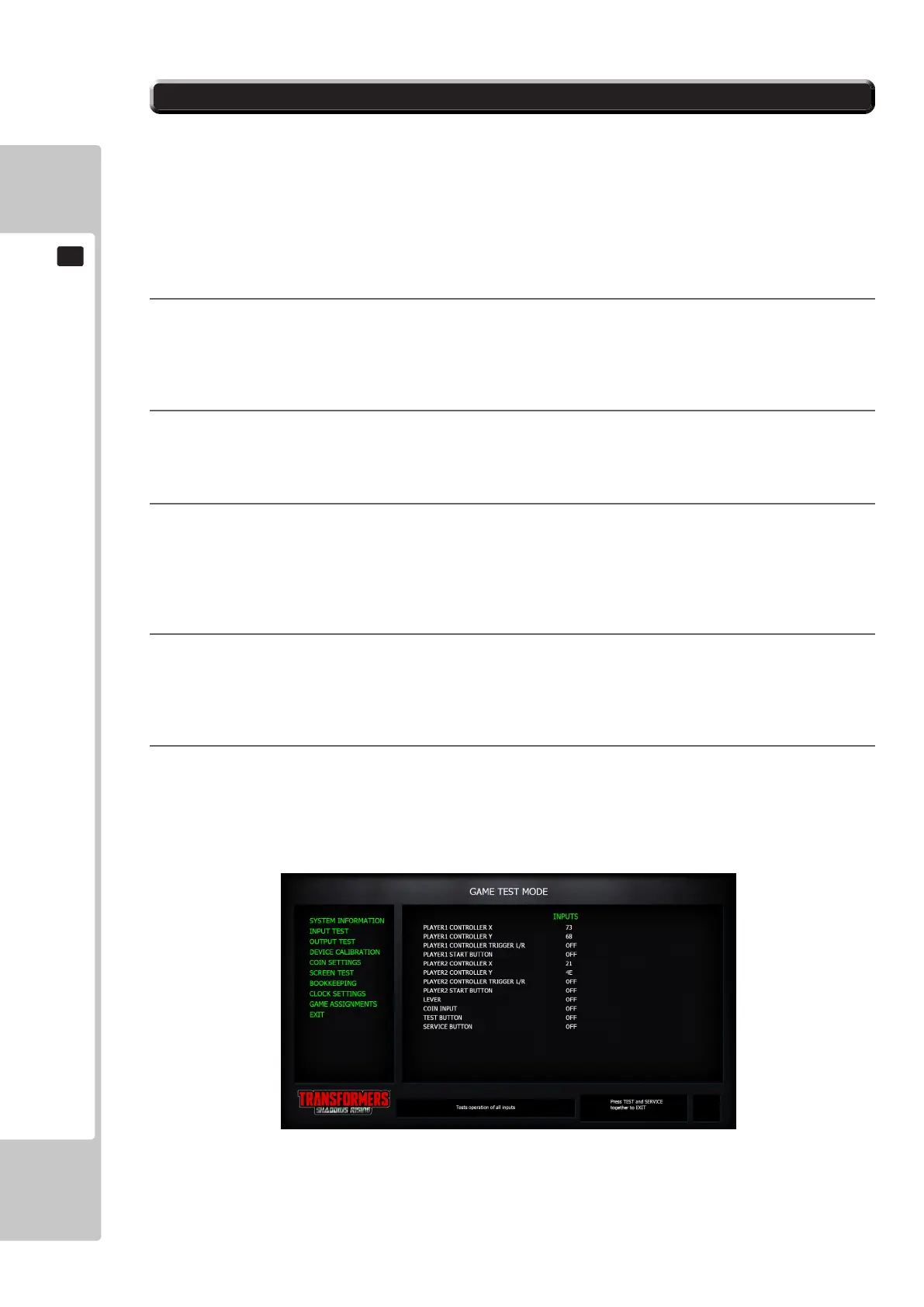

FIG. 6-18a INPUT TEST Screen
6-18 CONFIRMATION OF INSTALLATION
