ASSEMBLY AND INSTALLATION
49
6

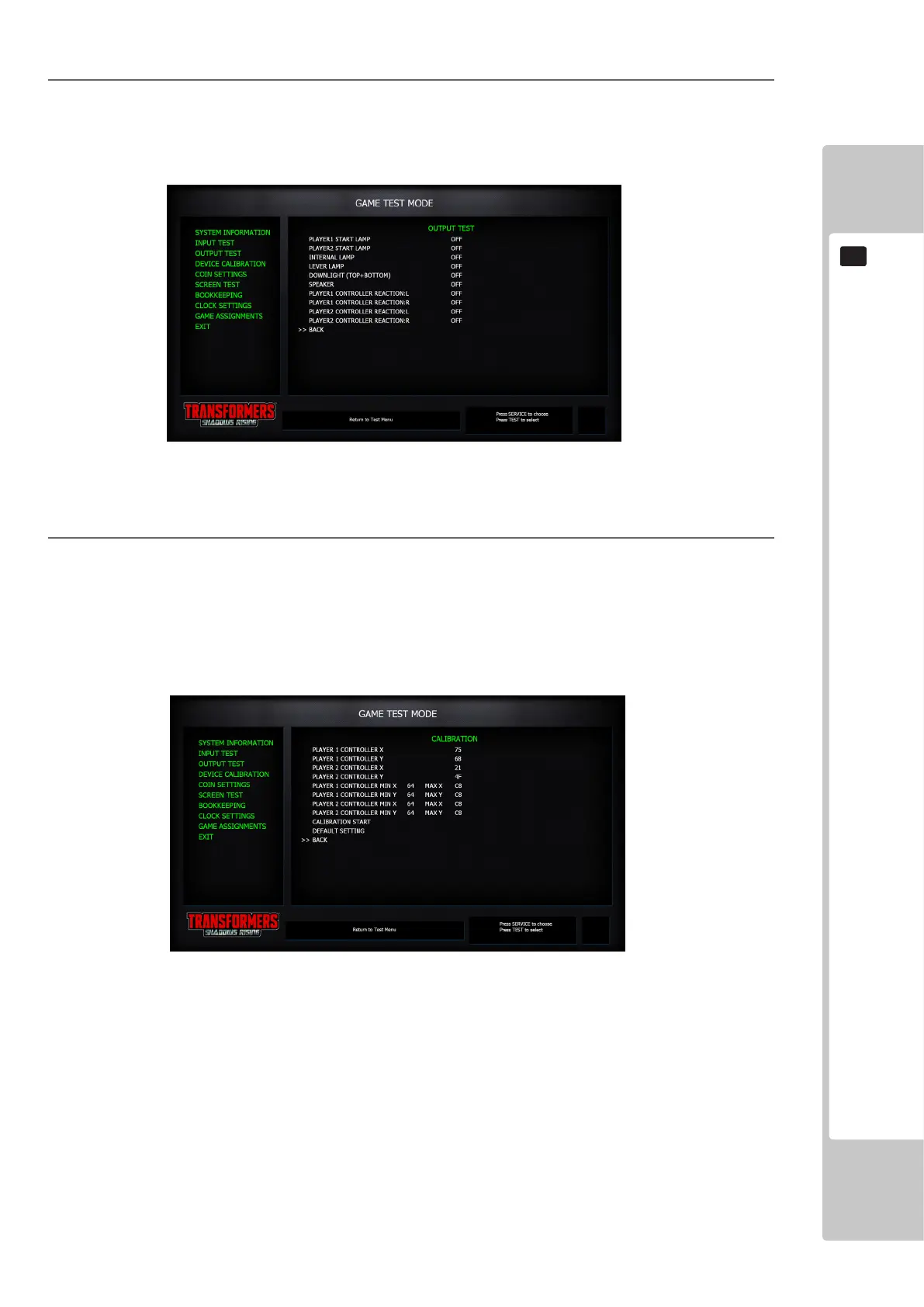

FIG. 6-18b OUTPUT TEST Screen
6
Output Test
When “OUTPUT TEST” has been selected on the game test mode menu, the screen for testing lamps and
other output devices appears.
If each output device operates properly, the output device and its wiring connections are normal (see 9-3b).
FIG. 6-18c GUN CALIBRATION Screen
7
Calibration
Conrm that the operability of control unit do not present any hindrances to play. Calibration is adjusted
when the product is shipped from the factory but it might need to be adjusted again because of vibrations
during transport, etc.
If such things as operability are not satisfactory, select “GUN CALIBRATION” on the game test mode
menu and check and adjust settings. (See 9-3c.)
Conduct these tests when performing routine checks each month.
To Next Page
