GAME BOARD
119
16
6

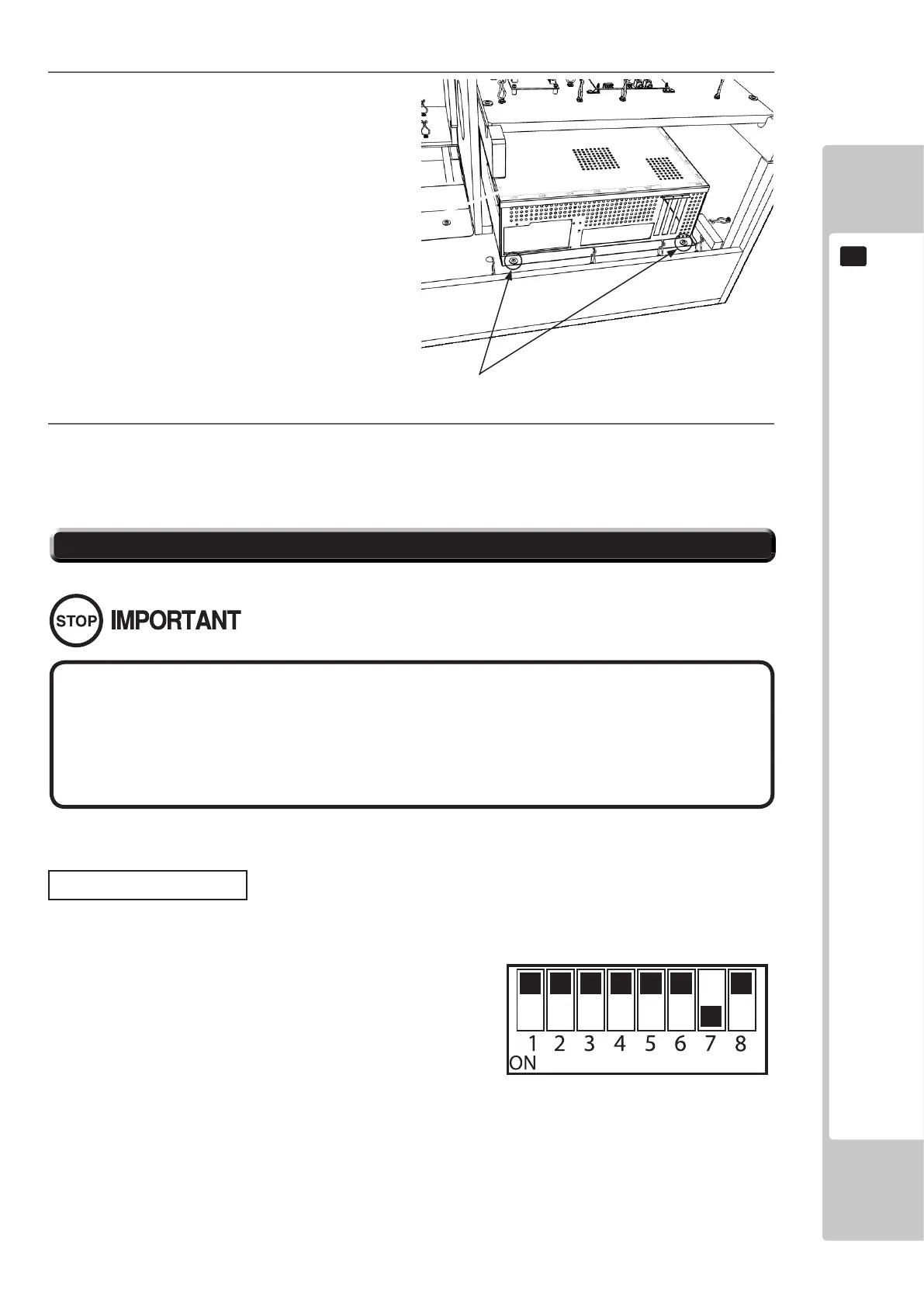

Lift and remove the Game board from the cabinet. The Game Bd is HEAVY so take care not to clash with
other components when removing as this could cause component damage.
5
Unscrew the (2) M4 Phillips screws which
secure the Game Board in place.
FIG. 16-1d
16-2 COMPOSITION OF THE GAME BOARD
FIG. 16-2b
Use this product with the DIP SW settings shown in the gure below.
DIP SW SETTING
● With the key chip inserted into it, this board serves as a special-purpose game
board for the product.
● Use with the dip switches (DIP SW) on the board at the prescribed settings. If
settings do not match the product, an error message will be displayed. In some
cases, the game cannot be started.
M4 FIXINGS (2)
To Next Page
