26

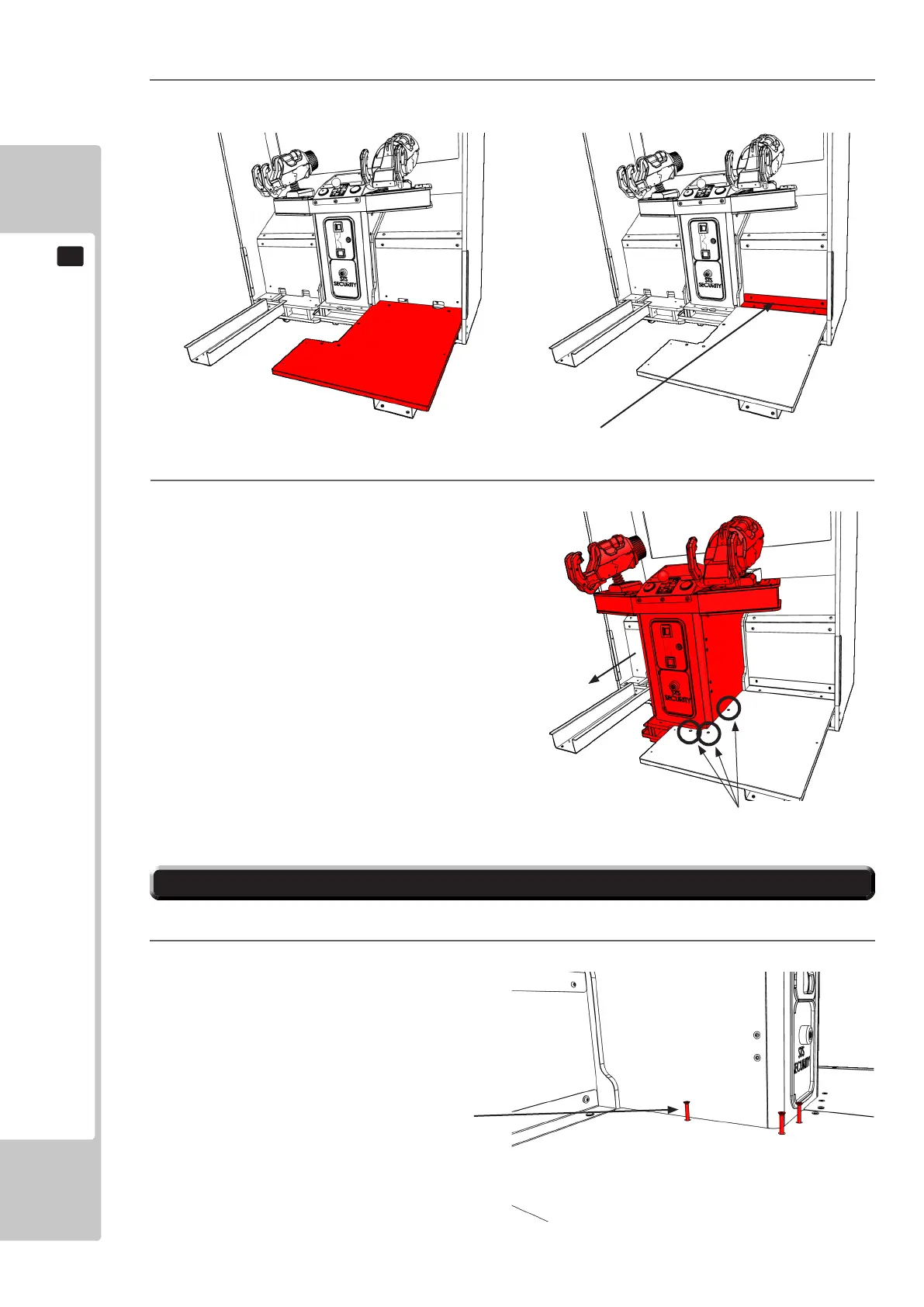

ASSEMBLY AND INSTALLATION
6
1
Secure each of the oor panels with (3) Sockethead Screws on each side (two of which xings were intially
removed from the Gun Cabinet).
6-5 SECURING FLOOR PANELS
FIG. 6-5a
5
Extend the Gun Cabinet fully, ensuring that the xing points are aligned with those of the RH Floor Panel.
ALIGN FIXING POINTS
4
Place the RH Floor Panel into position and secure using the BRACKET FRONT JOINT TOP (this bracket
is in situ and must be removed before placing the oor panel and then reapplied).
BRACKET FRONT JOINT TOP
SOCKETHEAD SCREW
FIG. 6-4f
FIG. 6-4g
