90
CONTROL UNIT
11
11-2 ADJUSTING OR REPLACING THE X AXIS VOLUME
The X (left and right) axis volume is on the bottom of the Control Unit.
If the X axis volume does not seem to be working properly and the TEST Mode calibration screen has no eect, the
cause is likely to be a problem with or damage to the gears of the X axis volume.
When replacing the volume, you will need a replacement volume and three heat shrink tubes. You will also need the
following tools and some solder.
- Wrench or screwdriver for tamperproof screws (for M4)
- A 7 millimeter spanner, hexagonal screwdriver, or socket wrench
- An 11-12 millimeter spanner
- Cutters
- Wire stripper
- Soldering iron
- Industrial heat gun
1
Turn o the power and remove the Control Unit (see 11-1).
2
Locate the X axis volume - positioned at the
rear base of the controller.
3
Loosen the (2) hex nut from the volume pot
bracket.

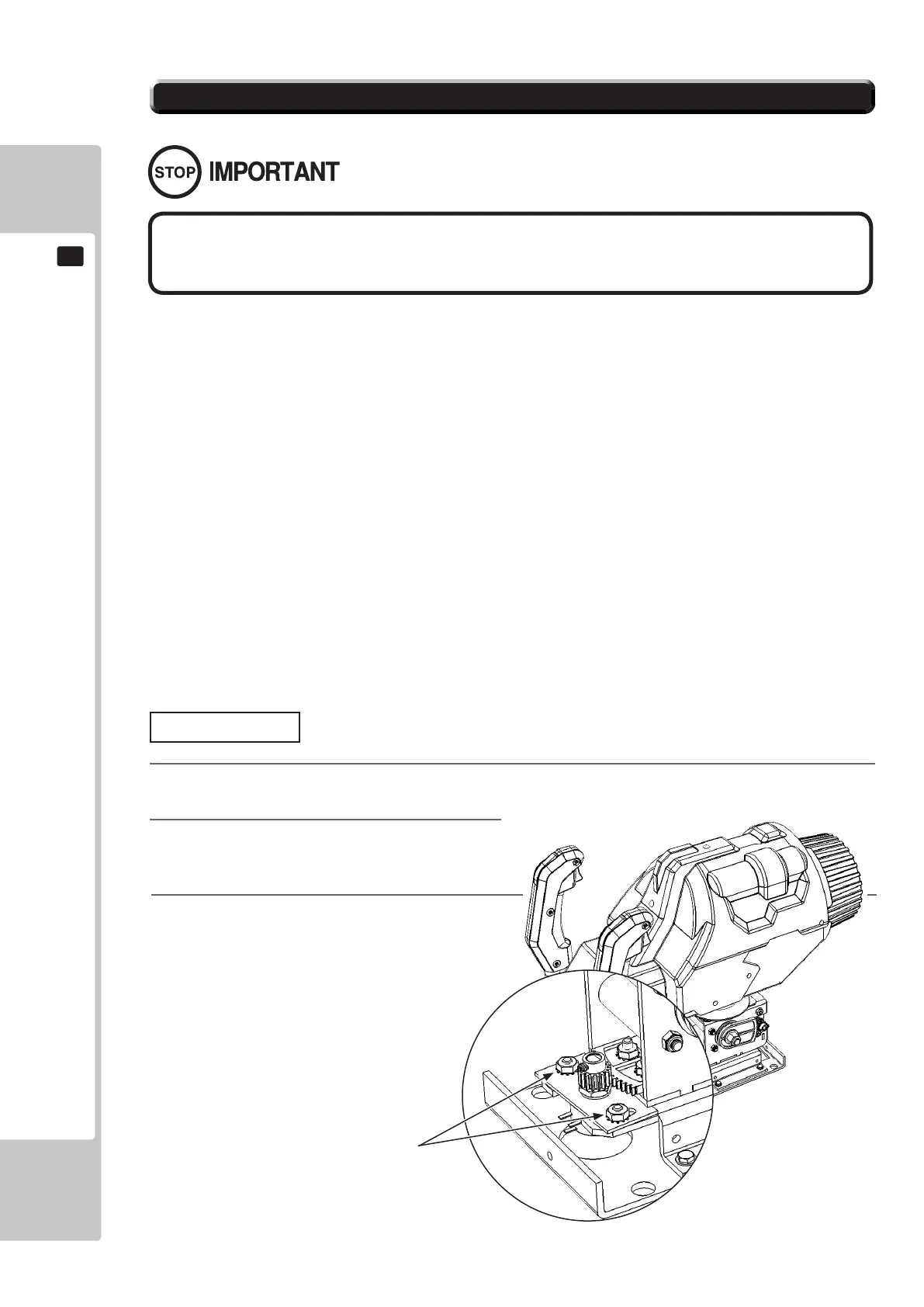

FIG. 11-2a
Adjustment
The volume axis directions when the Control Units are pointed directly at the
screen are different.
Imperial Hex Nut.
To Next Page
