ASSEMBLY AND INSTALLATION
31
6

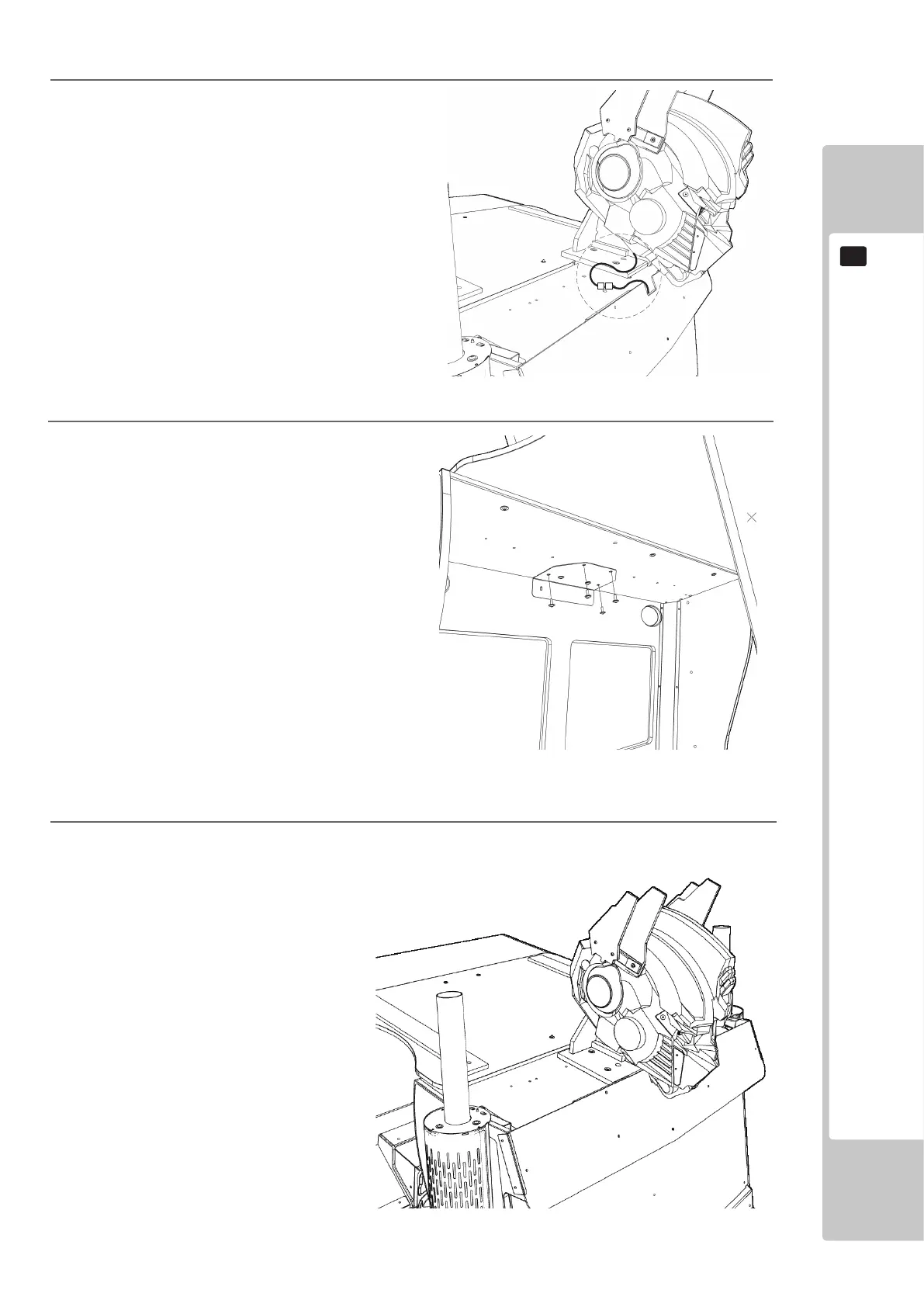

FIG. 6-8b
2
Attach the connector from the cabinet to the
billboard in the position shown.
3
Attach the (4) M8 xings to secure the billboard
and BILLBOARD SUPPORT BRKT to the
cabinet.
4
Assess that the billboard is stable after
completing the installation
FIG. 6-8c
FIG. 6-8d
