ASSEMBLY AND INSTALLATION
41
6
3

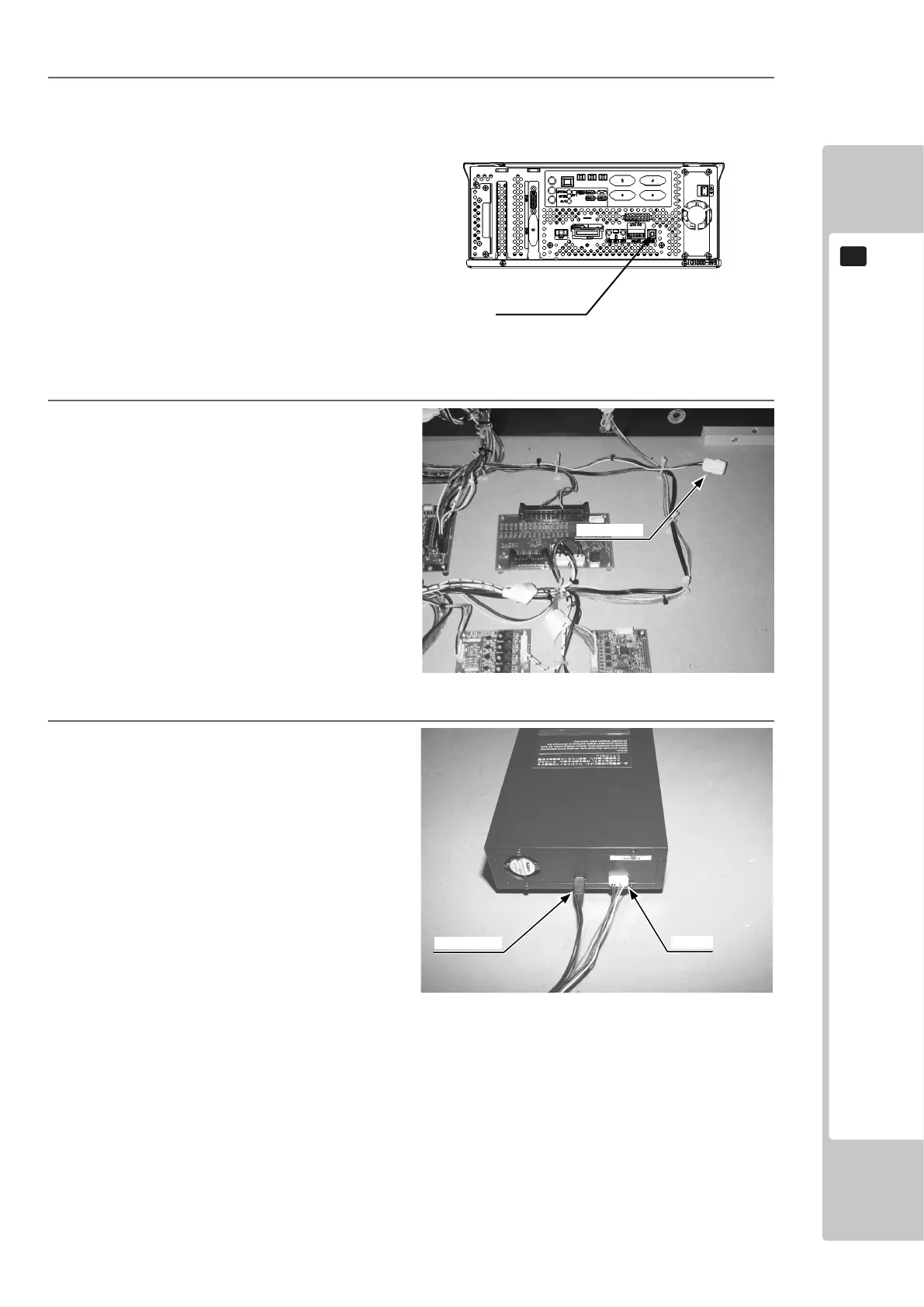

Connect the DVD drive USB cable into an
unsed USB port on the Game Bd.
FIG. 6-15c
4
Connect the Installation wire into the POWER
y lead within the cabinet
FIG. 6-15d
FIG. 6-15e
5
On the side of the DVD wire with the “DVD”
tag, there are two connectors. Connect them to
the DVD DRIVE.
USB MINI A
DVD PWR
USB MINI B
NH6pin
