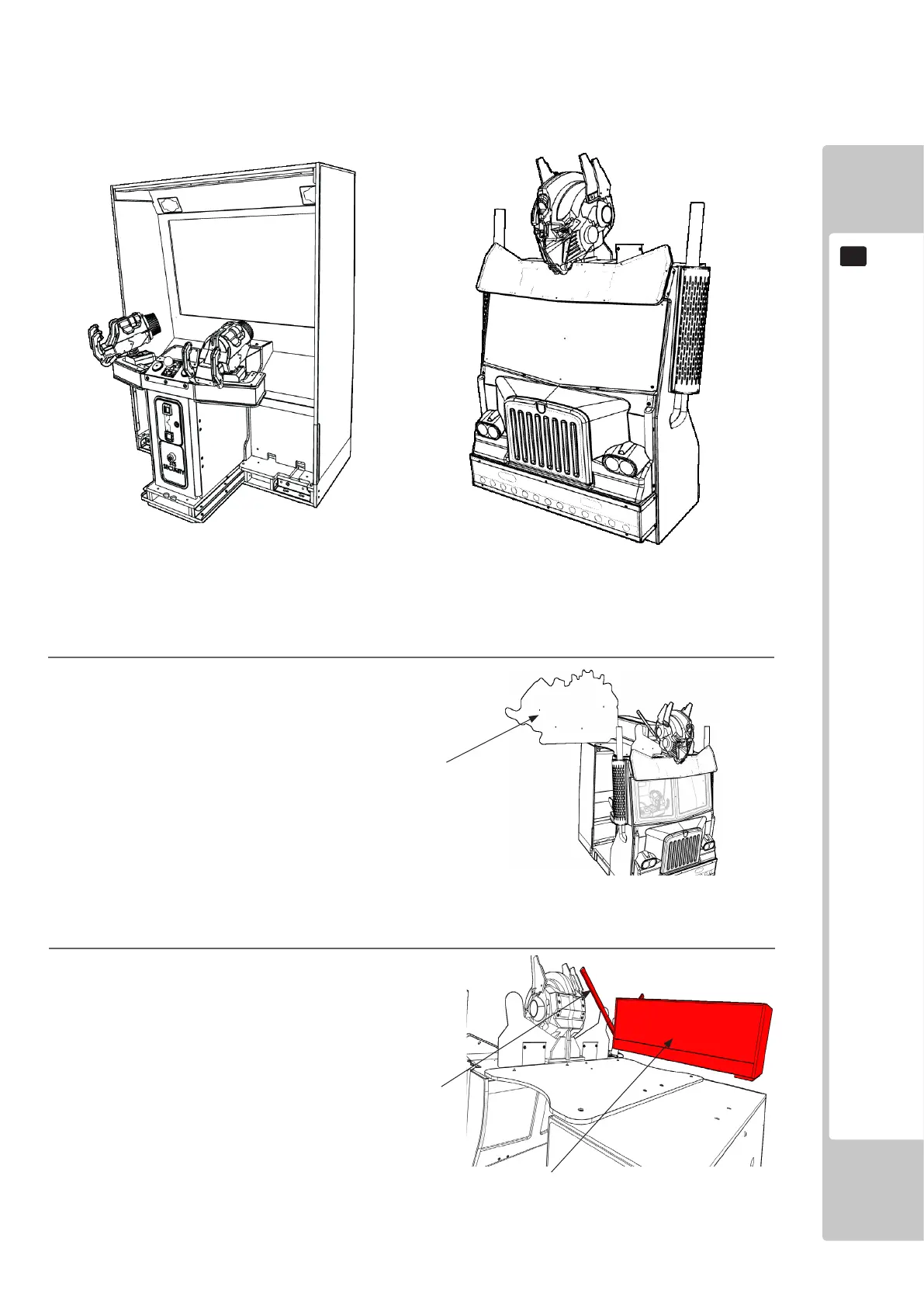

PRECAUTIONS WHEN MOVING THE MACHINE
53
7
FIG. 7-2b MONITOR CABINET
This section of the manual will reference steps that are detailed in parts of Section 6. Please refer to the appropriate
section and perform the instructions in reverse in order to safely remove parts so the cabinet can be moved.
FIG. 7-2c REAR CABINET
1
Remove the (4) M6 xings that secure the pop panel
and remove the pop panel from the roof of the cabinet.
Pop Panel
2
Remove the (3) M8 fixings that secure the top light
box (as detailed in Section 6) and using at least two
people, remove the top light box and pop panel support
bracket safely from cabinet roof.
Pop Panel Support
Bracket
Light Box
