Mechanical installation
T10FS A0785-150 HBM: public 41
Check the radial distance with a distance gauge and
compensate for any possible misalignment of the stator
by putting adjusting washers underneath or by adjusting
the base of the stator. You can also use the central
fastening screw on the sensor head for fine adjustments
(setting range ±1.5 mm).
Measuring range 100 NVm ... 3 kNVm 5 kNVm/10 kNVm
Radial nominal distance
in mm
1.0 1.2
Actuation distance range
in mm
0.3 ... 1.8 0.3 ... 2.2
Fig. 5.12 Radial nominal distance for the magnetic speed
measuring system
Central fastening screw

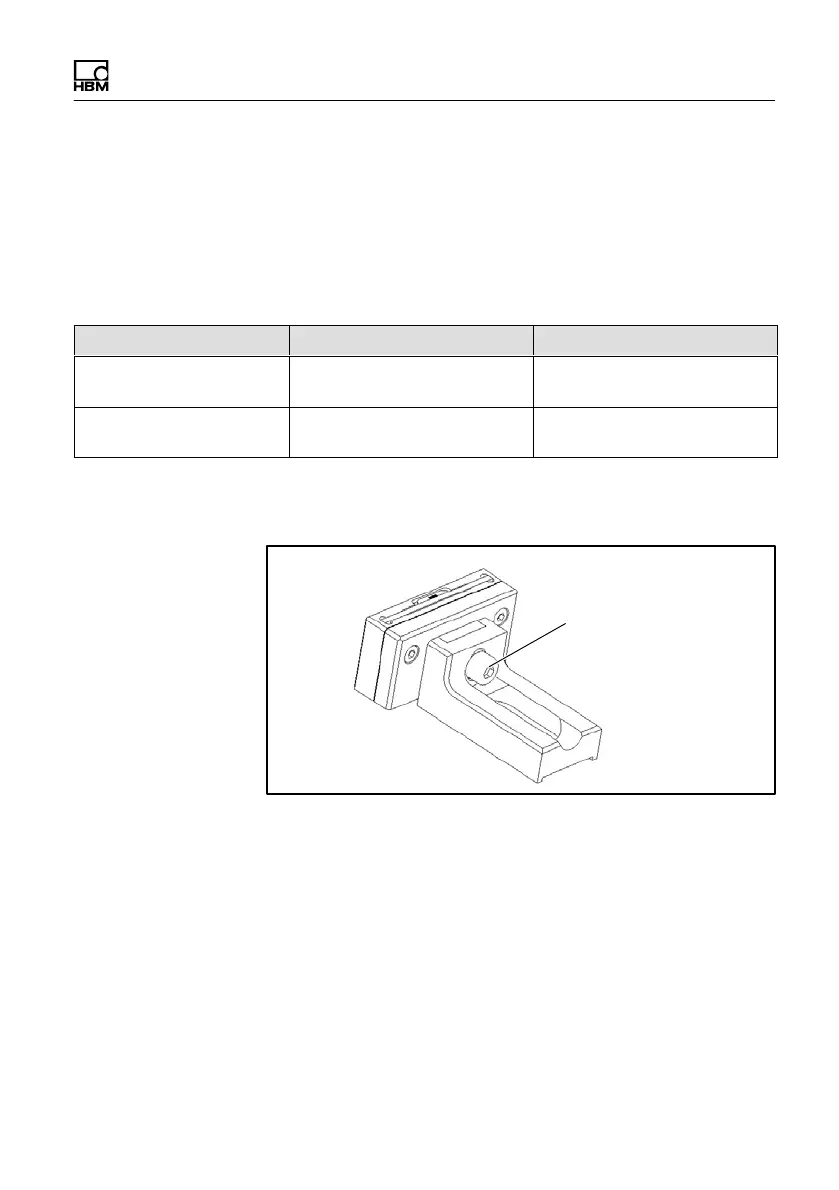

Fig. 5.13 Central fastening screw on the sensor head
1. Loosen the fastening screw (do not remove it!).
2. Set nominal distance a.
3. Tighten the screw at approx. 3 N⋅m.
4. Check the radial distance once again with a distance
gauge.
