Electrical connection
46 A0785-150 HBM: public T10FS
500 mm

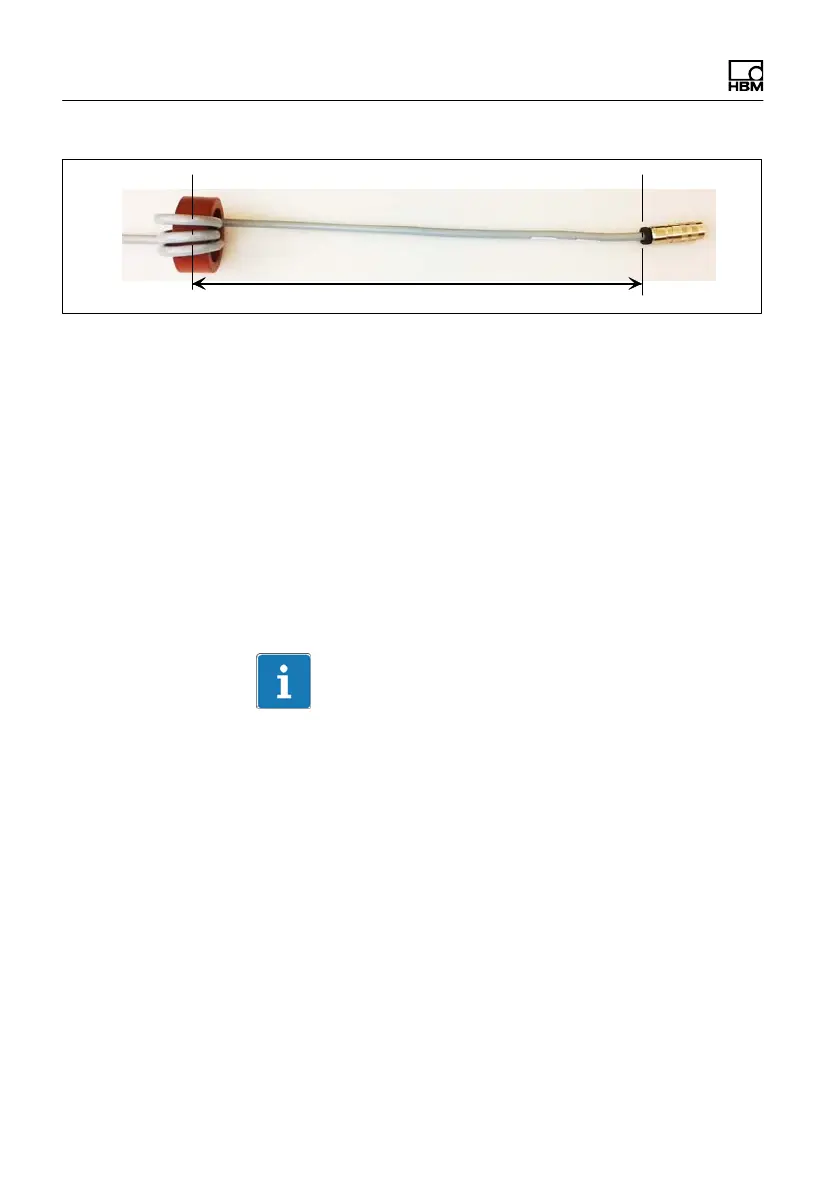

Fig. 6.2 Max. distance of EMI suppressor to connector
If the EMI suppressor has to be removed for any purpose
(e.g. for maintenance), it must be replaced on the cable.
Use only EMI suppressor of the correct type.
Type: Vitroperm R
Model No.: T60006-22063W517
Size: external diameter x internal diameter x height =
63 x 50 x 25
The installation requires a EMI suppressor to be added to
the cable. Additional fixture should be used to prevent
stress on the connector due to extra weight of the cable.
Important
The use of the EMI suppressor on the power cable
(plug 1 or plug 3) is mandatory to ensure compliance
with FCC regulations.
