HEIDENHAIN MANUALplus 4110 Surface Machining Example 8.10

Create the “Matrix” cycle program

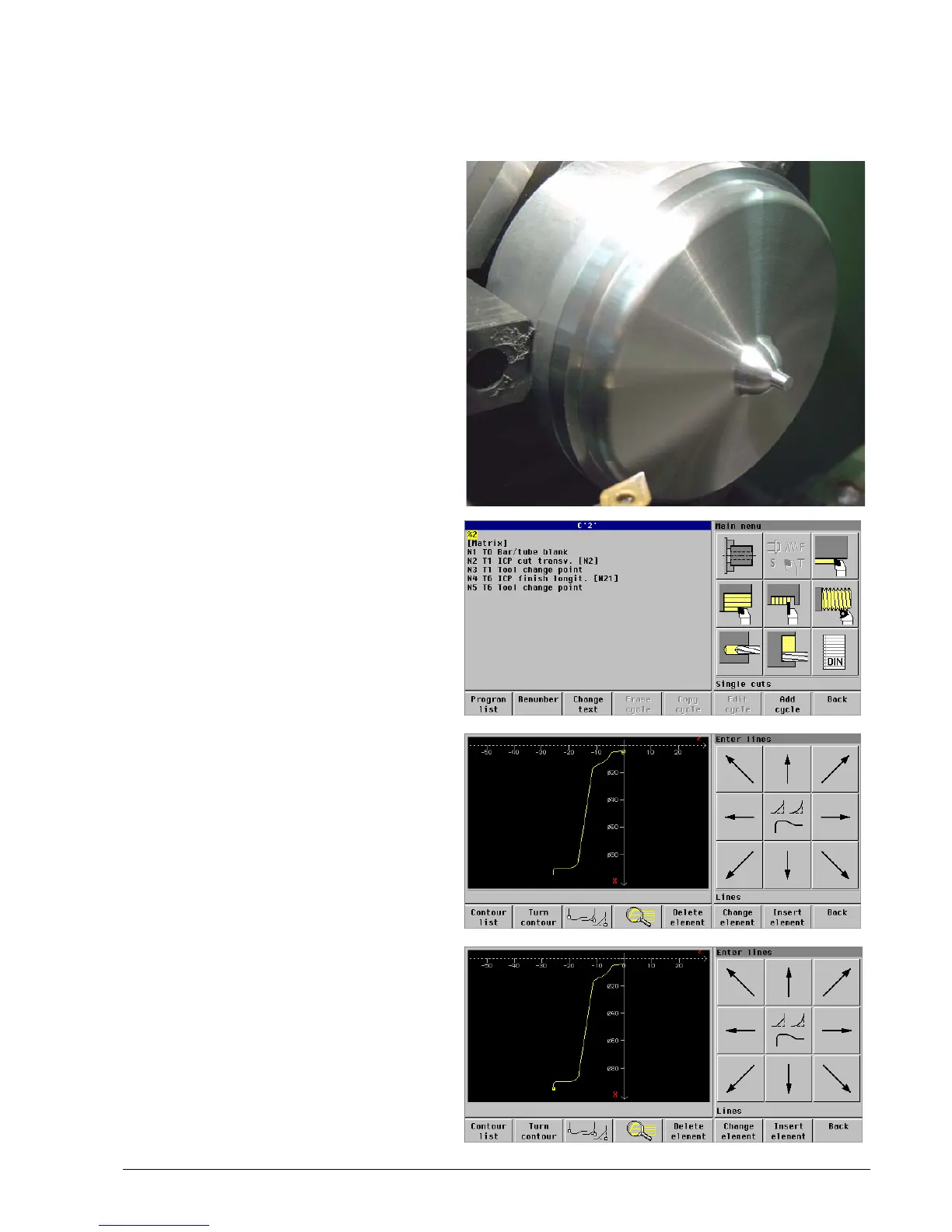

Results:

 The workpiece

 The “Matrix” cycle program

 The “Matrix” ICP contour for roughing

machining

 The “Matrix” ICP contour for finishing

machining
