HEIDENHAIN MANUALplus 4110 Surface Machining Example 8.20
Create the “Matrix” ICP contour for finishing machining
“Matrix – finishing contour ” ICP contour
The matrix is finished from the inside towards the outside. For this reason the ICP contour
“Matrix – finishing contour” with the contour direction “from inside to outside” is created.

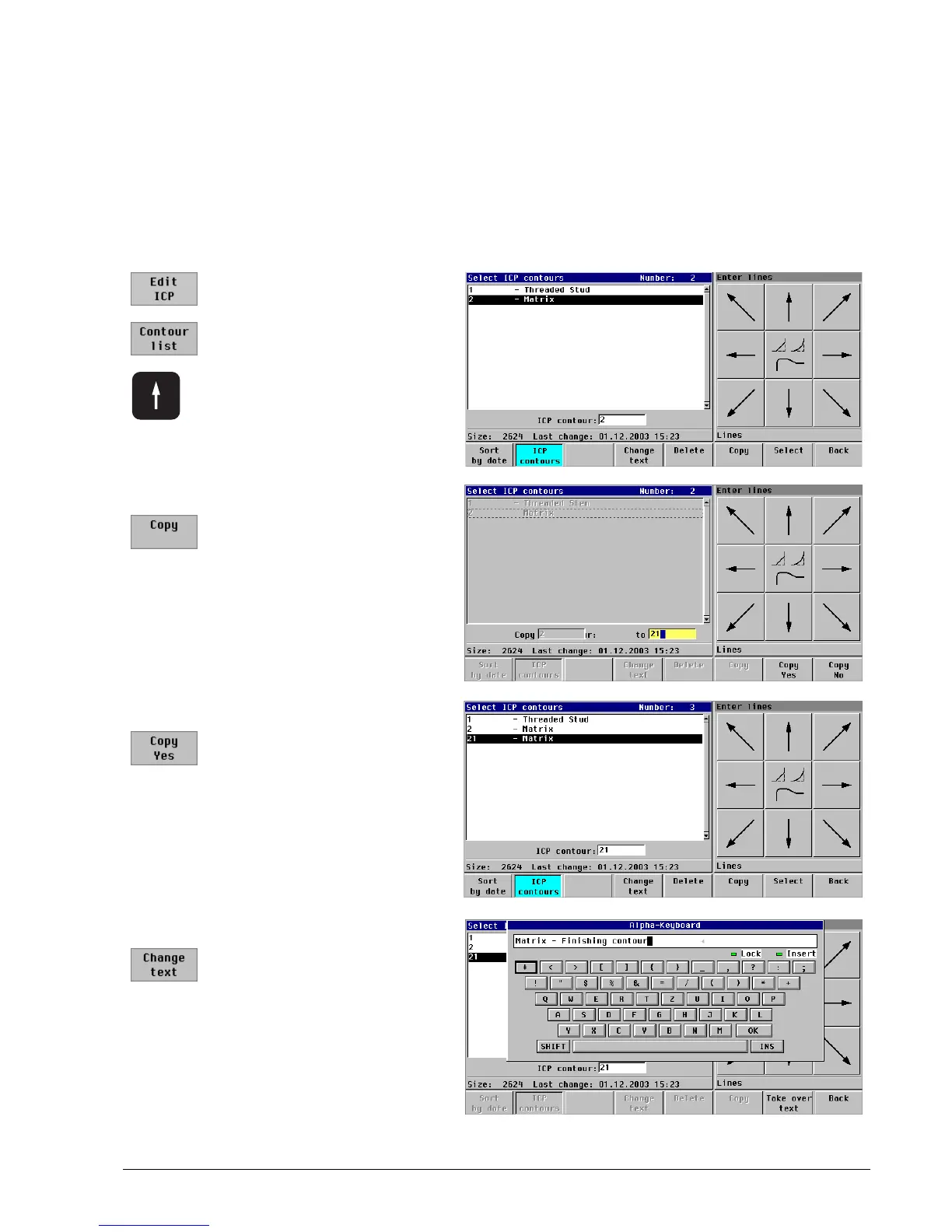

Copy ICP contour
 Call the ICP editor:
Press the Edit ICP soft key
 Press the Contour list soft
key
 Position the cursor on the “2
– Matrix” ICP contour:
Press the arrow key
Prepare for copying:
 Press the Copy soft key
 Enter the new ICP contour
number “21” in the to field
Perform copying:
 Press the Copy Yes soft key
Change the contour name:
 Press the Change text soft
key
 Enter the contour name
“Matrix – finishing contour”
