HEIDENHAIN MANUALplus 4110 Recess Machining Example 9.13

Create the ICP contour “Form roll”

Contour element 3 (oblique cut)

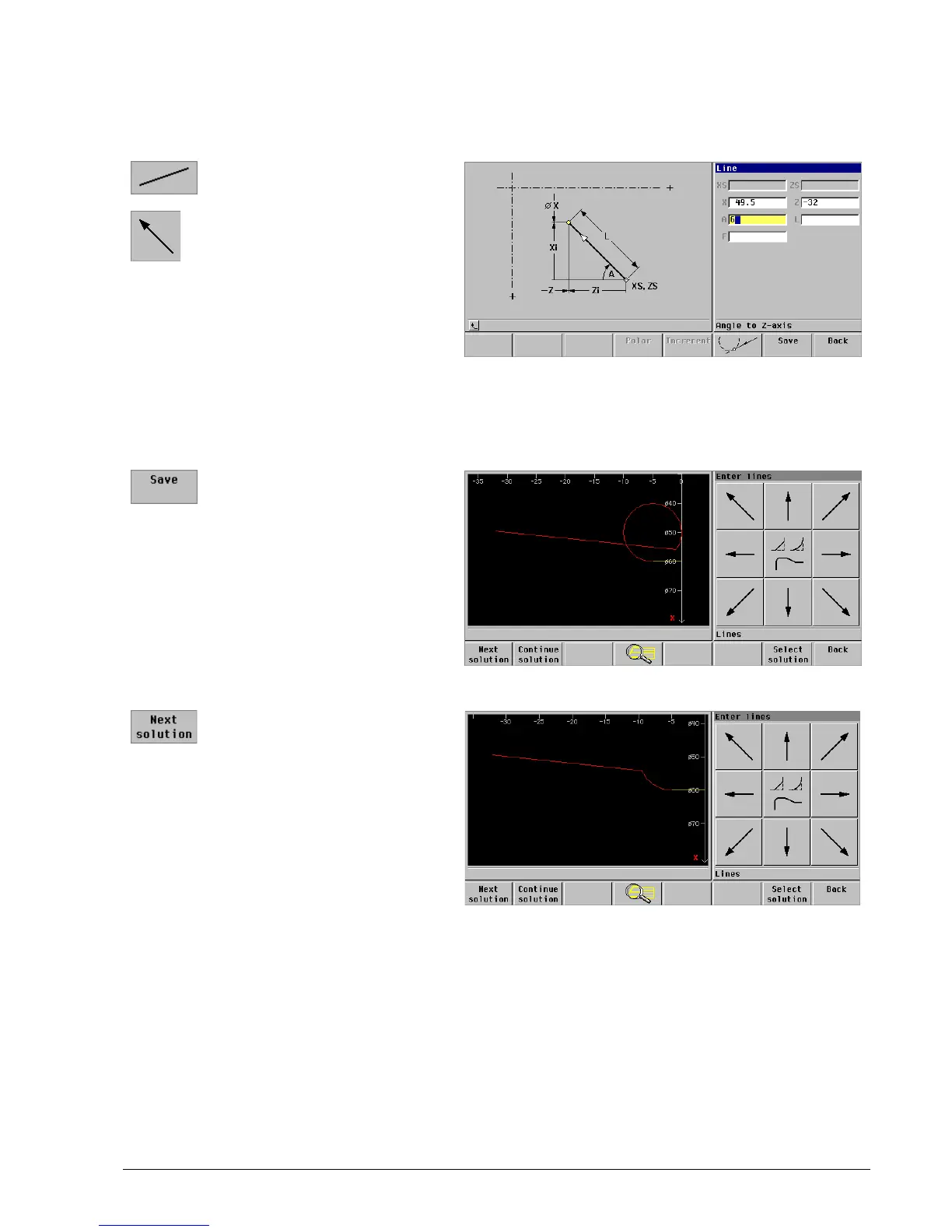

 Switch to line entry:

Press the Line soft key

 Press the Line menu key

Describe the contour element:

 Target point X in X: 49.5 mm

 Target point Z in Z: –32 mm

 Angle A to Z axis: 6°

 Length of line L: No entry

 Special feed rate F: No entry

 Conclude entry:

Press the Save soft key

(There are two solutions.)

 Display next solution:

Press the Next solution

soft key

(desired solution)
