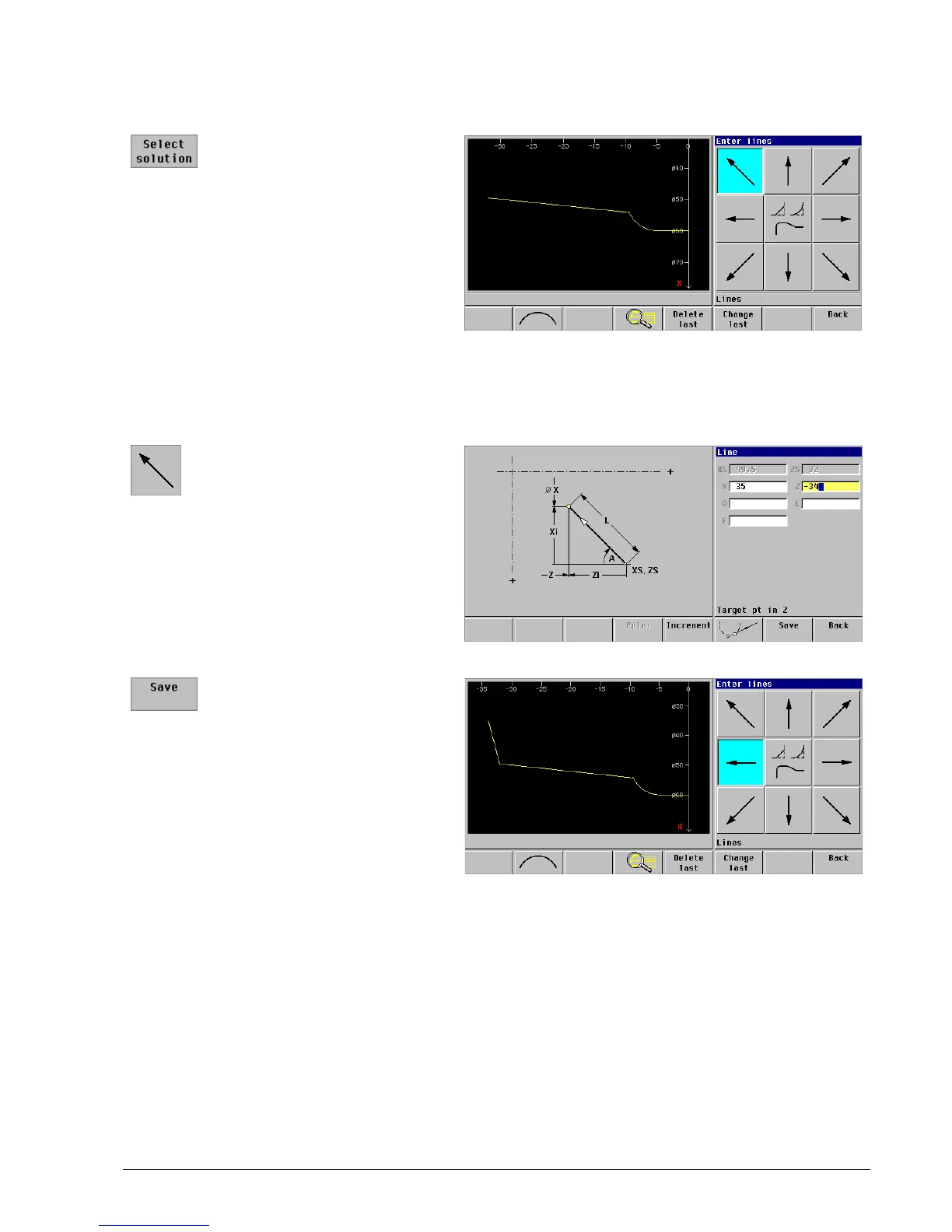

HEIDENHAIN MANUALplus 4110 Recess Machining Example 9.14

Create the ICP contour “Form roll”

Contour element 4 (oblique cut)

 Conclude entry:

Press the Select solution

soft key

 Press the Line menu key

Describe the contour element:

 Target point X in X: 35 mm

 Target point Z in Z: –34 mm

 Angle A to Z axis: No entry

 Length of line L: No entry

 Special feed rate F: No entry

 Conclude entry:

Press the Save soft key
