HEIDENHAIN MANUALPLUS 4110 - Creating the ICP Contour Form Roll: Elements 5 & 6; Contour Element 5: Horizontal Line; Contour Element 6: Oblique Cut

HEIDENHAIN MANUALplus 4110 Recess Machining Example 9.15
Create the ICP contour “Form roll”
Contour element 5 (horizontal line)
Contour element 6 (oblique cut)

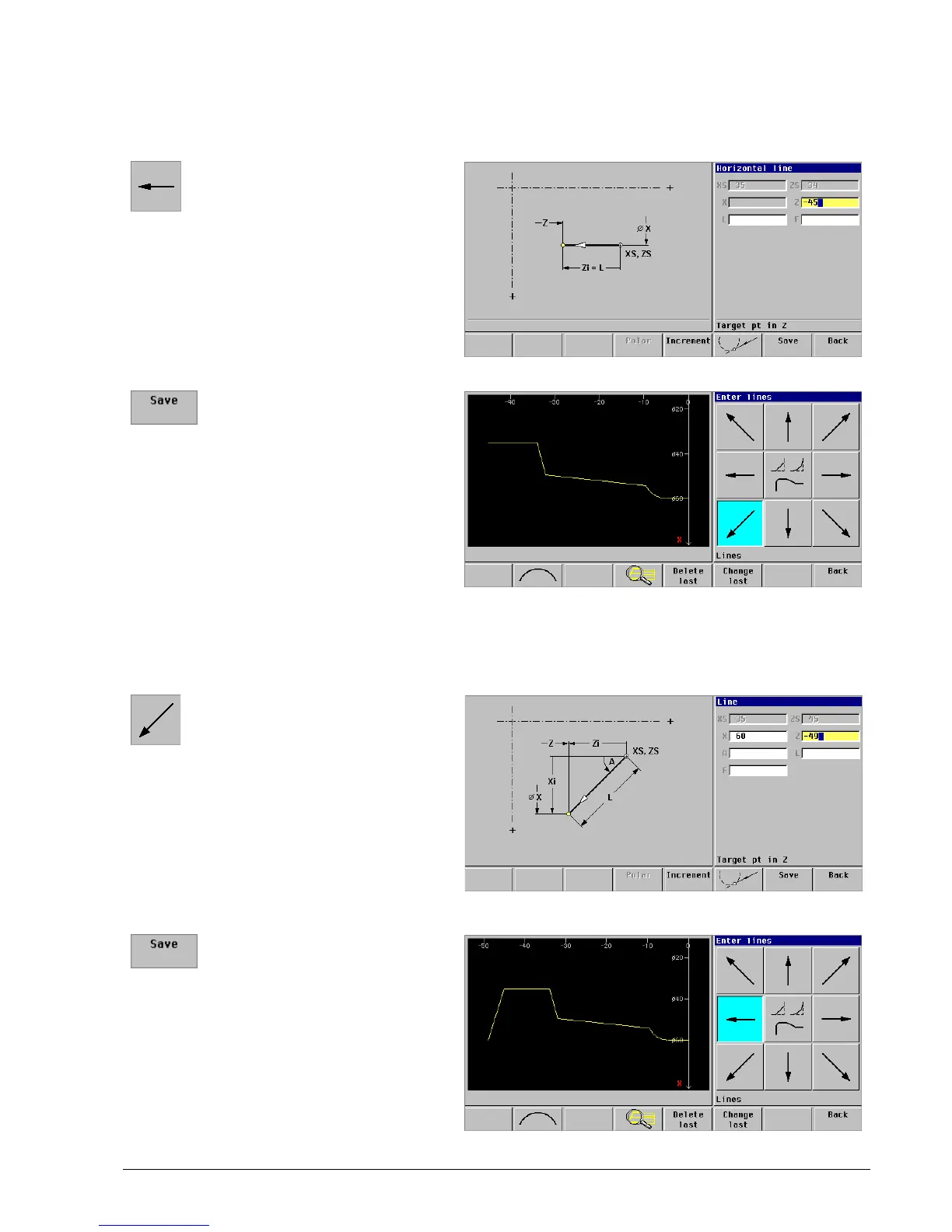

 Press the Line menu key
Describe the contour element:
 Target point Z in Z: –45 mm
 Length of line L: No entry
 Special feed rate F: No entry
 Conclude entry:
Press the Save soft key
 Press the Line menu key
Describe the contour element:
 Target point X in X: 60 mm
 Target point Z in Z: –49 mm
 Angle A to Z axis: No entry
 Length of line L: No entry
 Special feed rate F: No entry
 Conclude entry:
Press the Save soft key
