HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.31

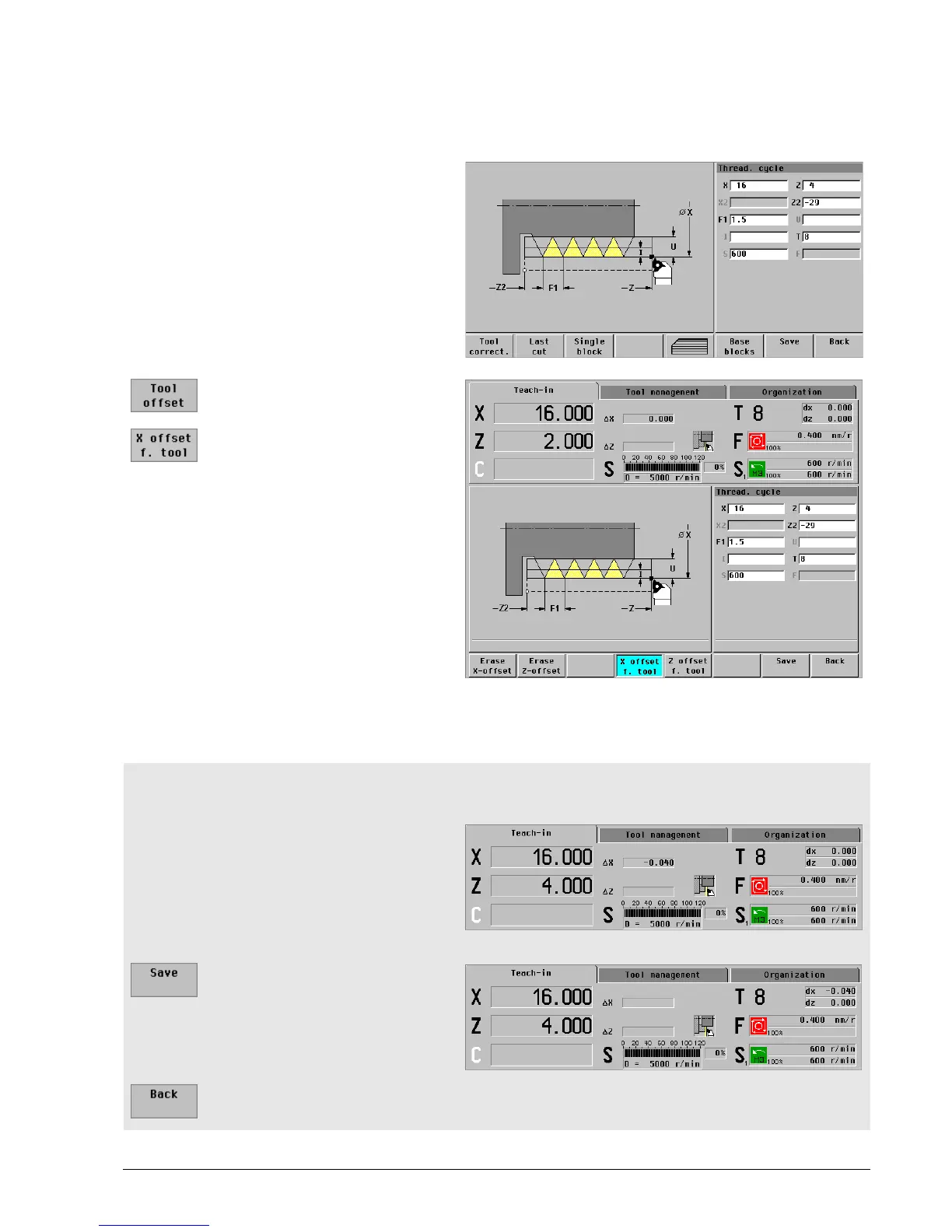

Create the “Threaded stud” cycle program
Select tool compensation
Compensating the threading tool
Situation after performing the threading
cycle
 Press the Tool offset soft
key
 Press the X offset for tool
soft key
 Set the handwheel resolution for
compensation
 Set tool compensation with the X
handwheel
The compensation set via handwheel is
shown in the Delta X field (example:
0.04 mm)
 Assume the compensation:
Press the Save soft key
The saved compensation value is
shown in the T8 dx field (example:
0.04 mm)
 Conclude compensation:
Press the Back soft key
