H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │100

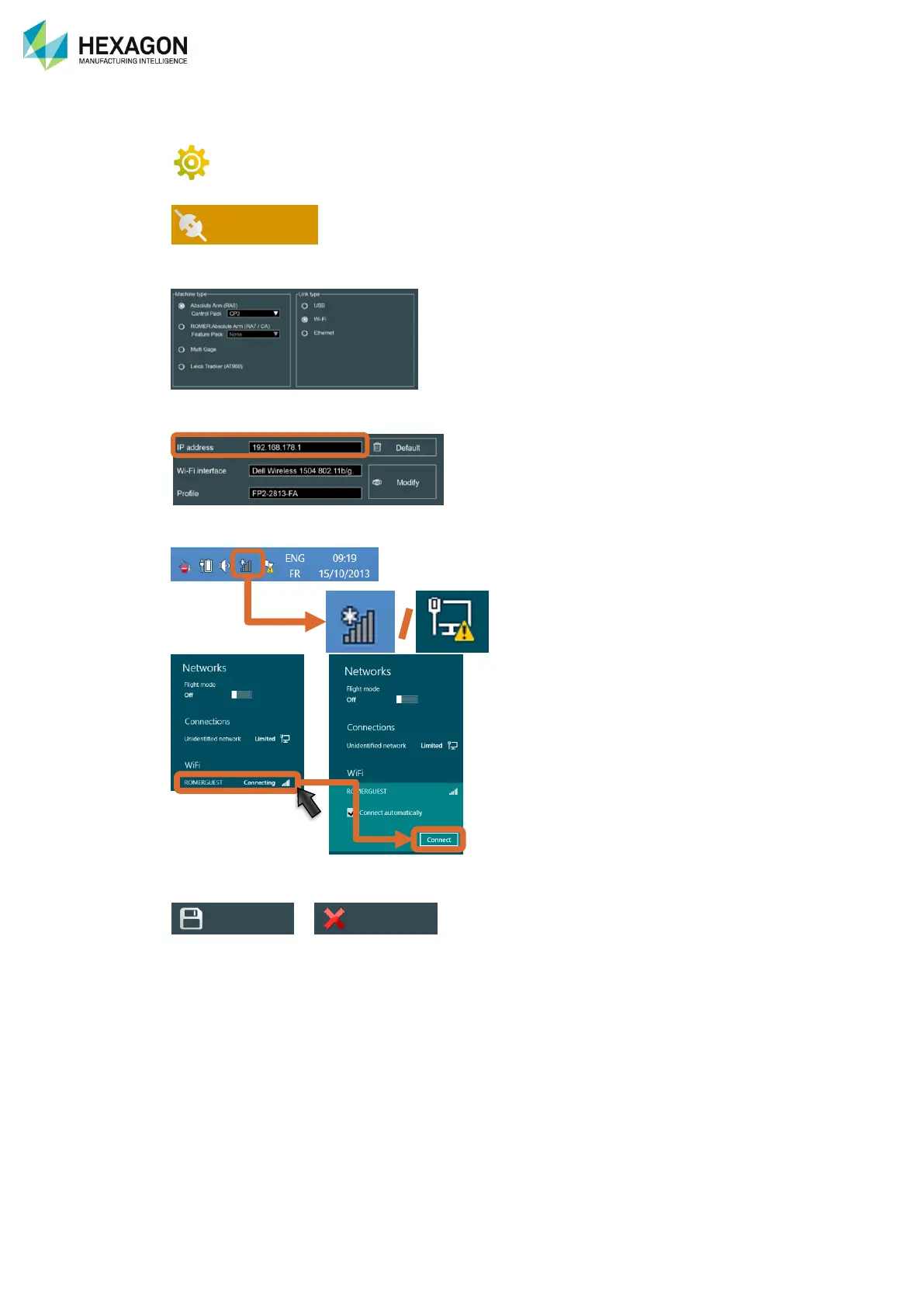

E.4.3 RDS SETUP

1. Enter RDS Control Panel

2. Select Connection tab

3. Select the type of Machine, Control Pack and “WLAN”

4. If the Control Pack address has been modified, enter the TCP/IP address.

5. Display the available wireless networks and connect the Control Pack

6. Save the modifications.

Connection

Save

Quit
